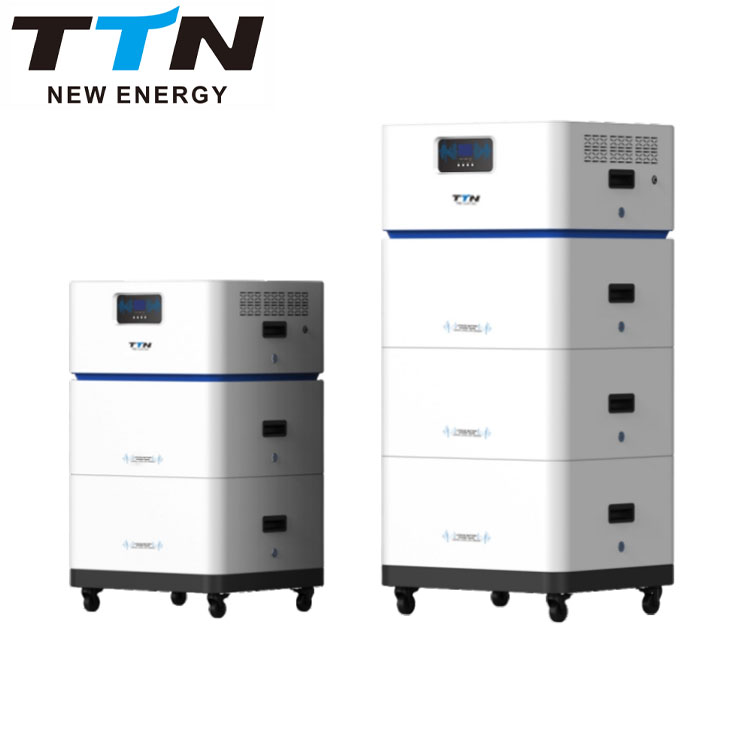

TTNergy Stacked Lithium Energy Storage Battery STACK5+5

TTNergy Stacked Lithium Energy Storage Battery STACK5+5

Additional information

Product Information

Battery Products Specification

Model STACK5+5 STACK5+10 STACK5+15 STACK5+20 STACK5+25
Single module capacity 5.12KWH
Module number 1 PCS 2 PCS 3 PCS 4 PCS 5 PCS
Total capacity 5.12KWH 10.24KWH 15.36KWH 20.48KWH 25.6KWH
Standard voltage 5.12V
Working voltage 43.2V-57.6V
Standard discharge current 100 200A 300A 400A 500A
Standard charge current 50A 100A 150A 200A 250A
Suggested DOD 80%-90%
Humidity 20%-60%
Installation Stacked
IP rating IP20
Communication CAN/R5485/RS232(4G WiFi/bluetooth/4G optional)
Product size/unit 500*550*295MM 500*550*485MM 500*550*670MM 500*550*855MM 500*550*1040MM
N.W./unit 60kg 110kg 160kg 210kg 260kg

Inverter Products Specification

Rated power 5000W (10kW available)
Voltage 230VAC
Selectable Voltage Range 170-280VAC(For personal computers);90-280VAC(For home appliances)
Frequency Range 50Hz/60Hz(Auto sensing)
Acvoltage Regulation (Battery Mode) 230VAC ± 5%
surge power 10000VA
Effceincy (peak) Up to 93.5%
Transfer Time 10ms(For personal computers);20ms(For home appliances)
Waveform pure sine wave
Battery Voltage 48VDC
Floating Charge Voltage 54VDC
Overcharge Protection 63VDC
Solar Charger & AC charger
Maximum PV Array Open Circuit Voltage 500VDC
Maximum PV Array Power 5000W
MPPT Range @ Operating Voltage 120-450VDC
Maximum Solar Charger Current 80A
Maximum AC Charger Current 60A
Maximum Charger Current 80A
Humidity 5% to 95% Relative Humidity(Non-condensing
Operating Temperature -10°C to 50°C
Storage Temperature -15°C to 60°C
