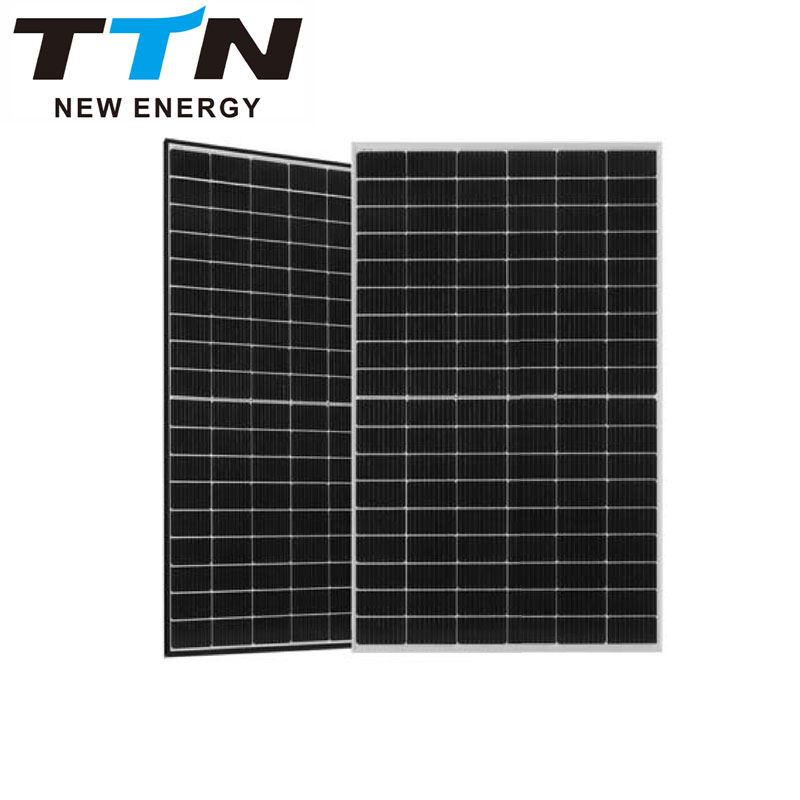

TTNergy 400-415W Mono-facial Module solar panel
TTNergy 400-415W Mono-facial Module solar panel
Additional information
| Cell Type | P type Mono-crystalline |
|---|---|
| No. of cells | 108(2×54) |
| Dimensions | 1722x1134x30mm (67.80×44.65×1.18 inch) |
| Weight | 22.0 kg (48.50 lbs) |
| Front Glass | 3.2mm,Anti-Reflection Coating. |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Output Cables | TUV 1×4.0mm |
Product Information
Positive power tolerance of 0~+3%
IEC61215(2016),IEC61730(2016)
1509001:2015: Quality Management System
IS014001:2015: Environment Management System
15045001:2018
Occupational Health and $afety Management Systems
Packaging Configuration
36pcs/pallets,72pcs/stack,936pcs/ 40’HQ Container

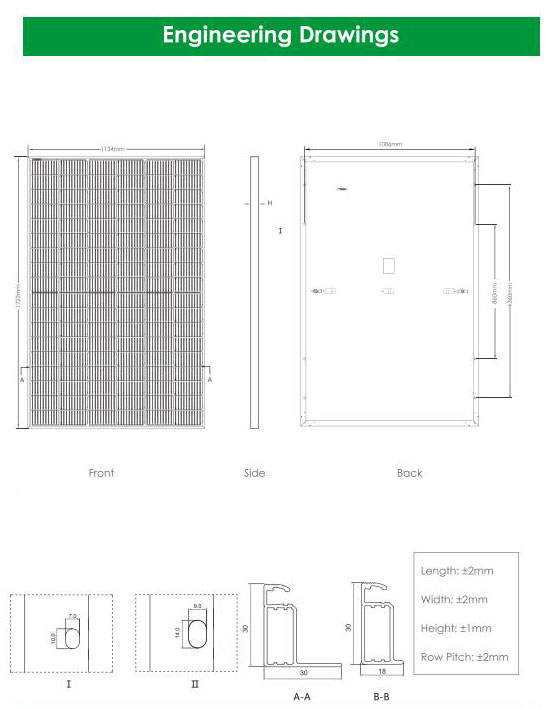

| Mechanical Characteristics | |
| Cell Type | P type Mono-crystalline |
| No. of cells | 108 (2×54) |
| Dimensions | 1722x1134x30mm(67.80×44.65×1.18 inch) |
| Weight | 22.0 kg (48.50 lbs) |
| Front Glass | 3.2mm,Anti-Reflection Coating. High Transmission, Low lron, Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Juncfion Box | IP68 Rated |
| Output Cables | TUV 1×4.0mm (+):300mm,(-):300mm or Customized Length |

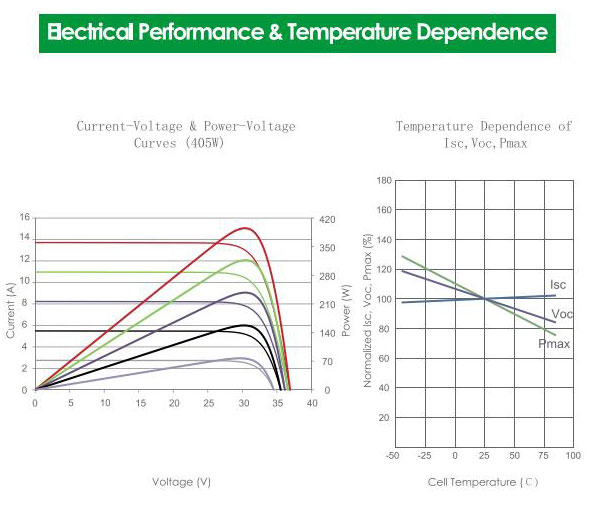

Specifications
| Module Type | 400W(108) | 405W(108) | 410W(108) | 415W(108) | ||||
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power (Pmax) | 298Wp | 400Wp | 405Wp | 301Wp | 305Wp | 410Wp | 415Wp | 309Wp |
| Maximum Power Voltage (Vmp) | 30.42V | 28.42V | 30.52V | 28.56V | 30.62V | 28.72V | 30.79V | 28.88V |
| Maximum Power Curent (lmp) | 13.15A | 10.47A | 13.27A | 10.55A | 13.39A | 10.62A | 13.48A | 10.69A |
| Open-circuit Voltage(Voc) | 36.98V | 34.90V | 37.06V | 34.98V | 37.14V | 35.05V | 37.31V | 35.21V |
| Short-circuit Curent (lsc) | 13.78A | 11.13A | 13.85A | 11.19A | 13.92A | 11.24A | 14.01A | 11.32A |
| Module Efficiency STC (%) | 20.48% | 20.74% | 21.00% | 21.25% | ||||
| Operating Temperature(°C) | -40℃~+85℃ | |||||||
| Maximum system voltage | 1000/1500VDC (IEC) | |||||||
| Maximum series fuse rating | 25A | |||||||
| Power tolerance | 0~+3% | |||||||
| Temperature coefficients of Pmax | -0.35%/°C | |||||||
| Temperature coefficients of lsc | -0.28%/°C | |||||||
| Nominal operating cell temperature (NOCT) | 45±2°C | |||||||
