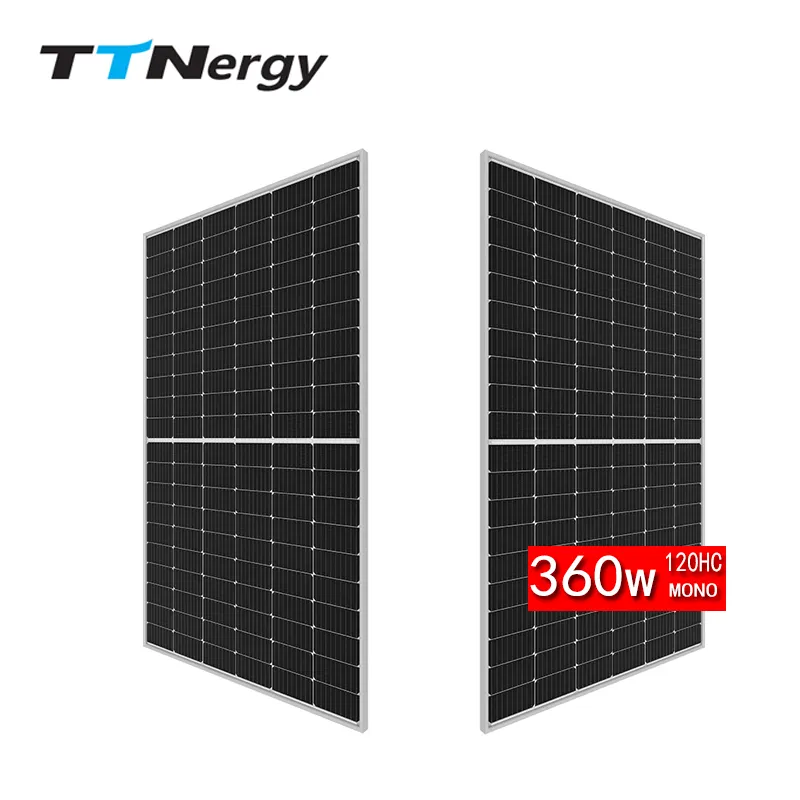

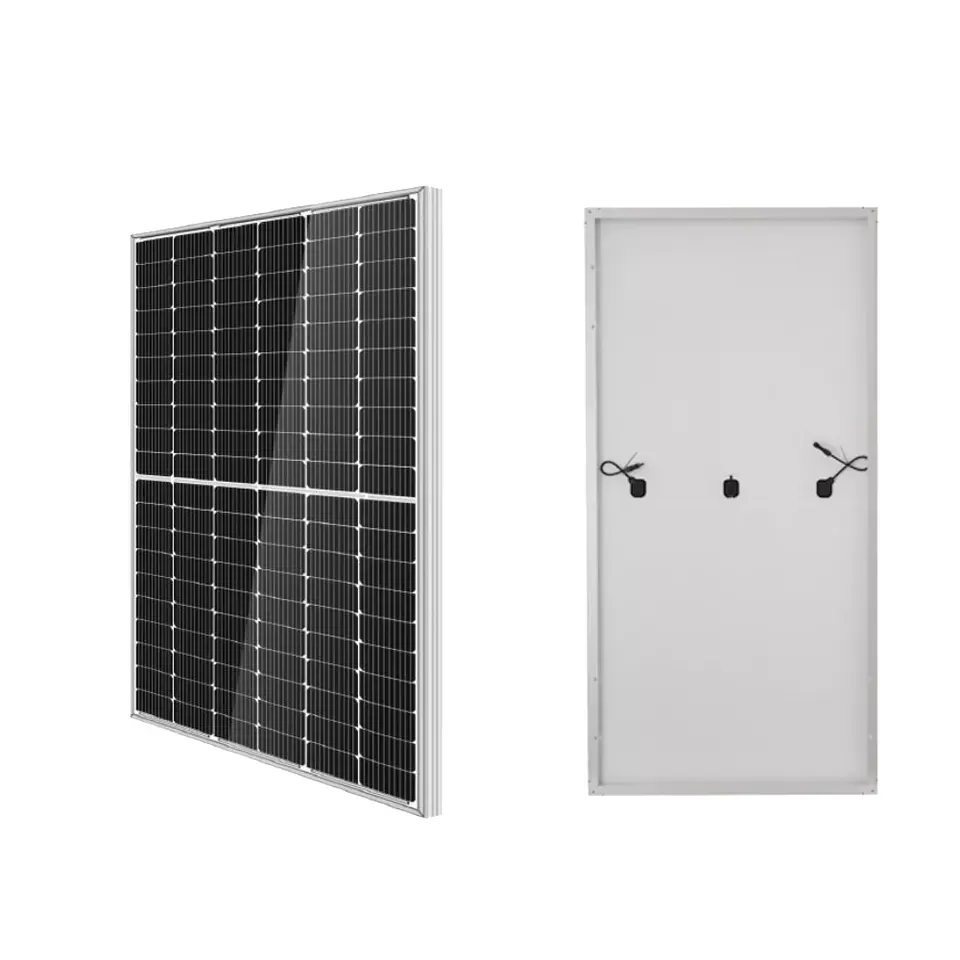

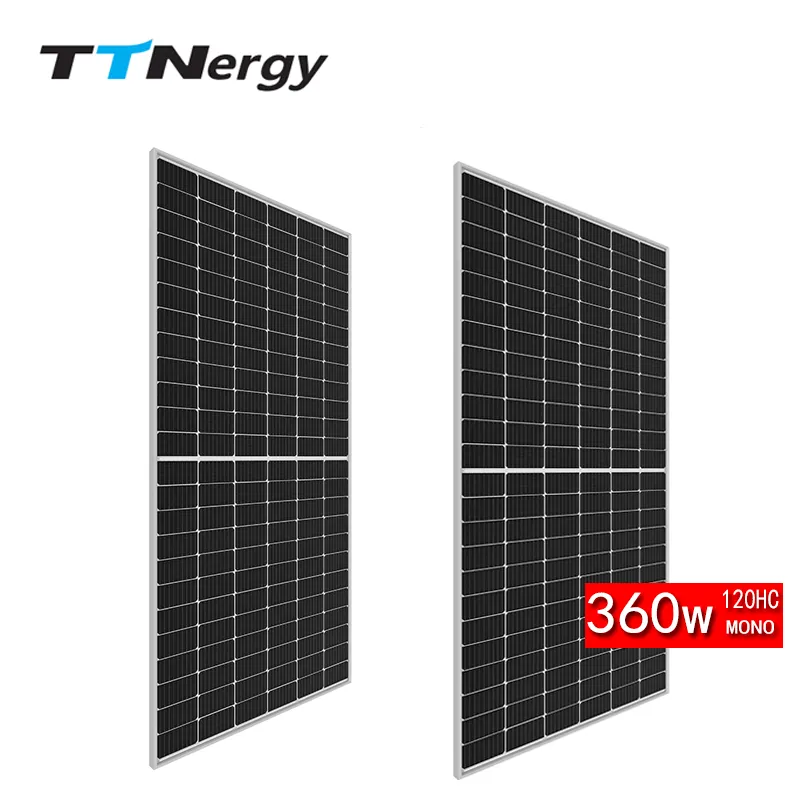

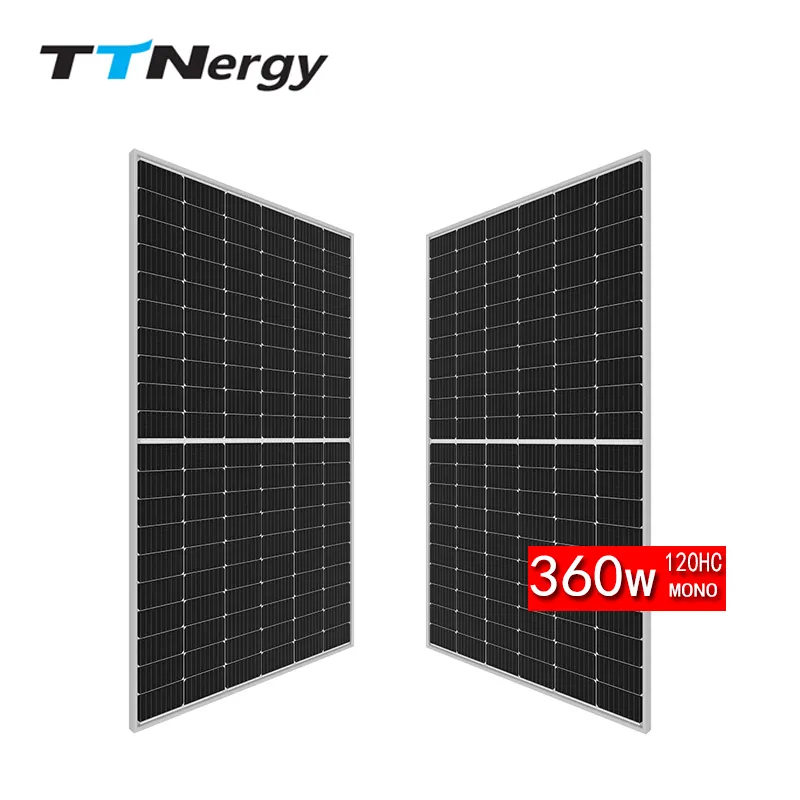

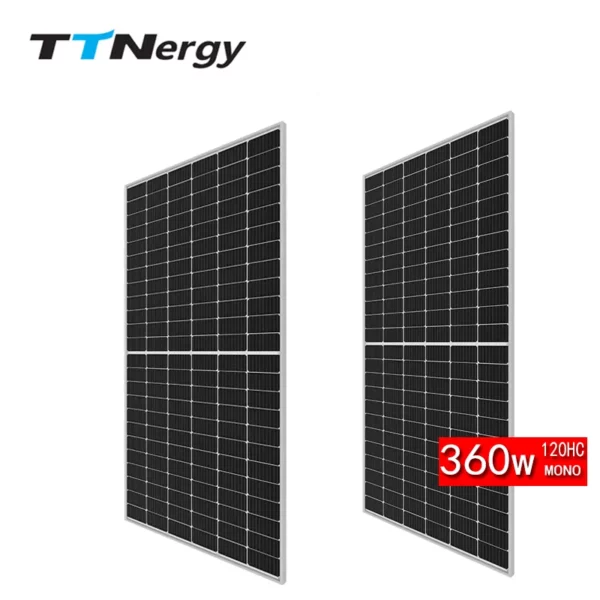

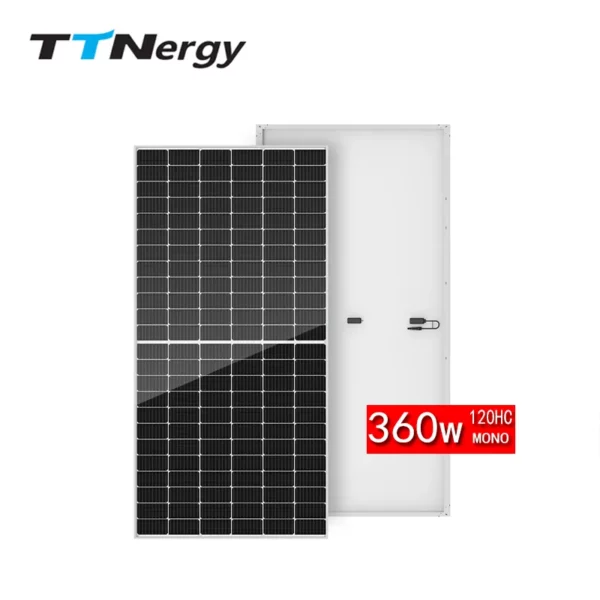

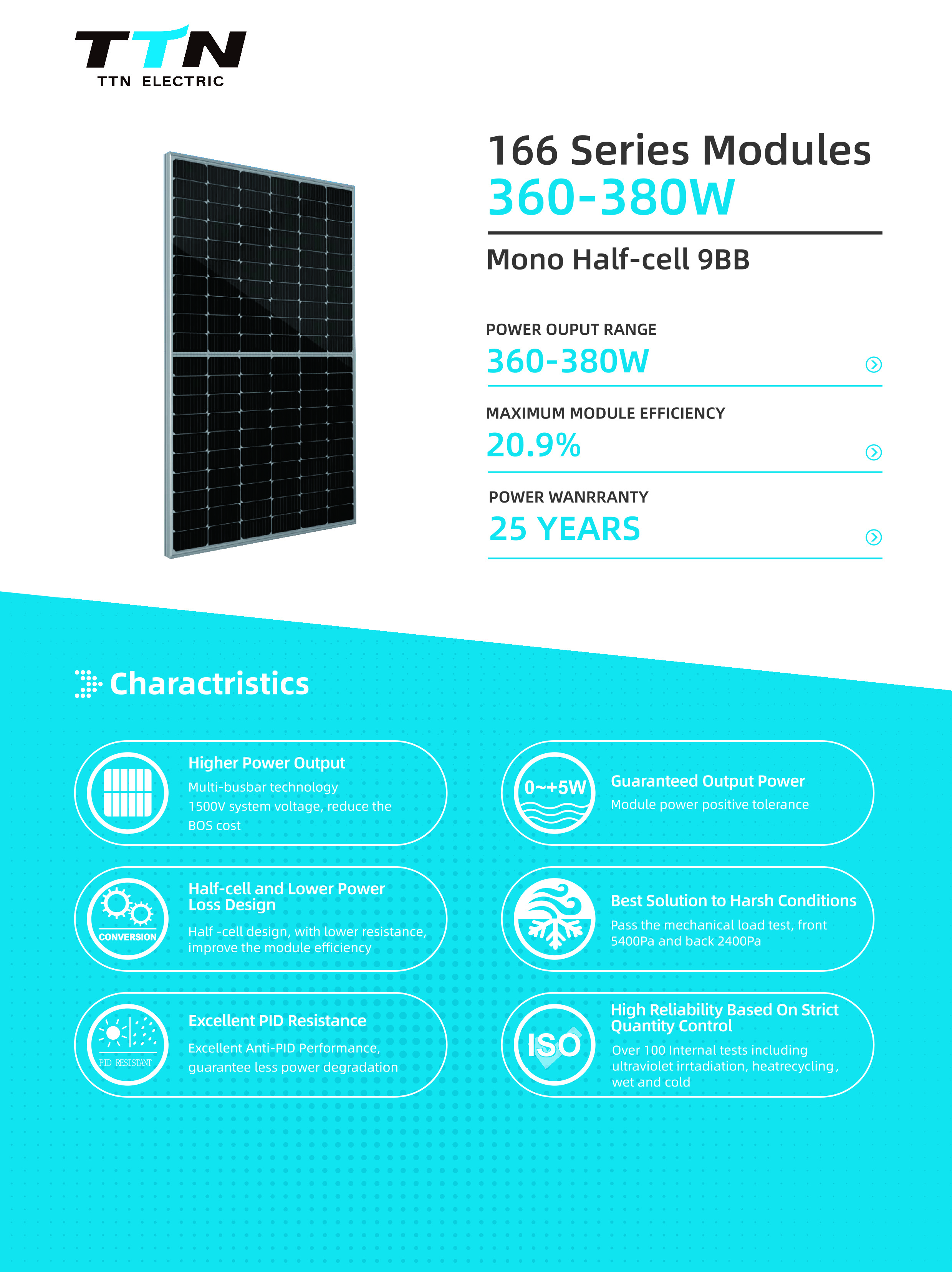

Customized High Efficiency 360-380w solar panels
Customized High Efficiency 360-380w solar panels
Additional information
| Panel Efficiency | 20.09% |
|---|---|
| Cell size | 166mmx166mm |
| Panel Dimensions | 1755*1038*35mm |
| Warranty | 25 years |
| Solar cell | A-grade |
Product Information
250W solar panels Glass
* High-transmittance and low reflection * Inspection:GB15763.2-2005.ISO9050 * High solar transmittance * High mechanical strength * High flatness
250W solar panels Cell
* High output-power: conversation efficiency is 18%-22% * High shunt-resistance: adapt the several environmental conditions. * Bypass diode minimizes the power drop by shade * Excellent low light effect * Low breakage rate
Frame
* Aluminium extrusion profile with prompt delivery * Available in customized surface finish * Excellent material for smooth and subtle edges * Extrusion for construction and other industrial purposes * Thickness variable according special request
Junction Box
* High current and voltage carrying capacity * Simple, quick and safe effective field assembly * IP 68 it can be used in the outdoor iron environment * Expansion connector are available for future requirement * Double permanent connection are adapted for all of the connecting.
|
Module
|
TTN 360W
|
TTN 365W
|
TTN 370W
|
TTN 375W
|
TTN 380W
|
|
Peak Power Watts(Pmax/W)
|
360
|
365
|
370
|
375
|
380
|
|
Power Output Tolerance(W)
|
0~+5
|
||||
|
Maximum Power Voltage(Vmp/V)
|
40.5
|
40.7
|
40.9
|
41.1
|
41.3
|
|
Maximum Power Current(Imp/A)
|
11.35
|
11.43
|
11.52
|
11.60
|
11.69
|
|
Open Circuit Voltage(Voc/V)
|
34.0
|
34.2
|
34.4
|
34.6
|
34.8
|
|
Short Circuit Current(Isc/A)
|
10.59
|
10.68
|
10.76
|
10.84
|
10.92
|
|
Module Efficiency(%)
|
19.8
|
20.0
|
20.3
|
20.6
|
20.9
|
|
STC:Irradiance 1000W/m2,Cell Temperature 25°C,Air Mass AM1.5.
*Measuring Tolerance: ±3%. |
|||||
Monocrystalline solar panels have a higher efficiency rate than other types of solar panels, making them more cost-effective in the long run. They are also more space-efficient, allowing for maximum energy production in a limited area. However, their higher cost may make them less accessible to some consumers.
