| Output Type | Single |
|---|---|
| Inverter Efficiency | 97% |
| Input Voltage | 24V |
| Output Current | 33A |
| Size | 40*25*8.9cm |
| Output Frequency | 50hz/60hz |
| Type | DC/AC Inverters |
Features :

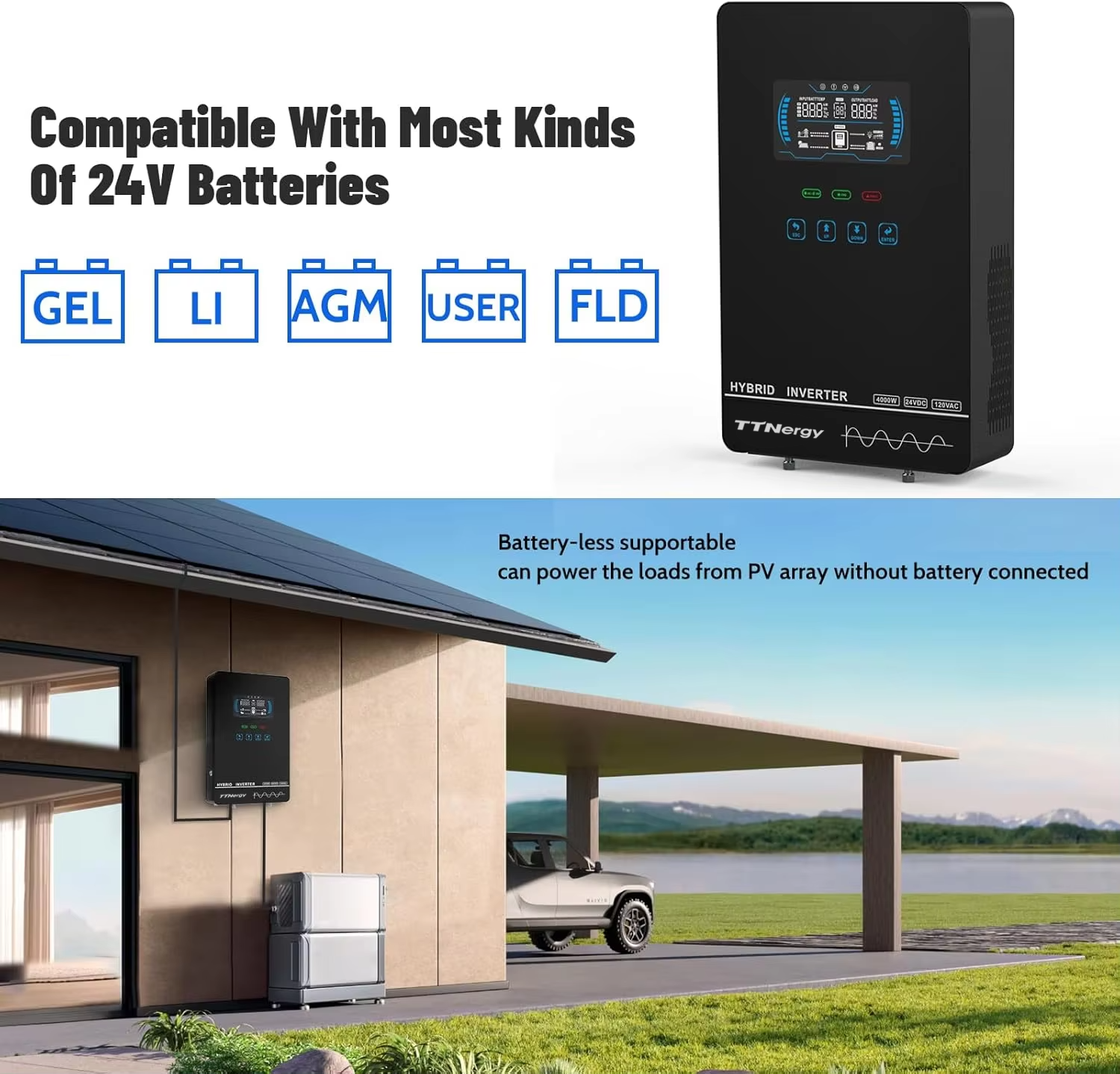

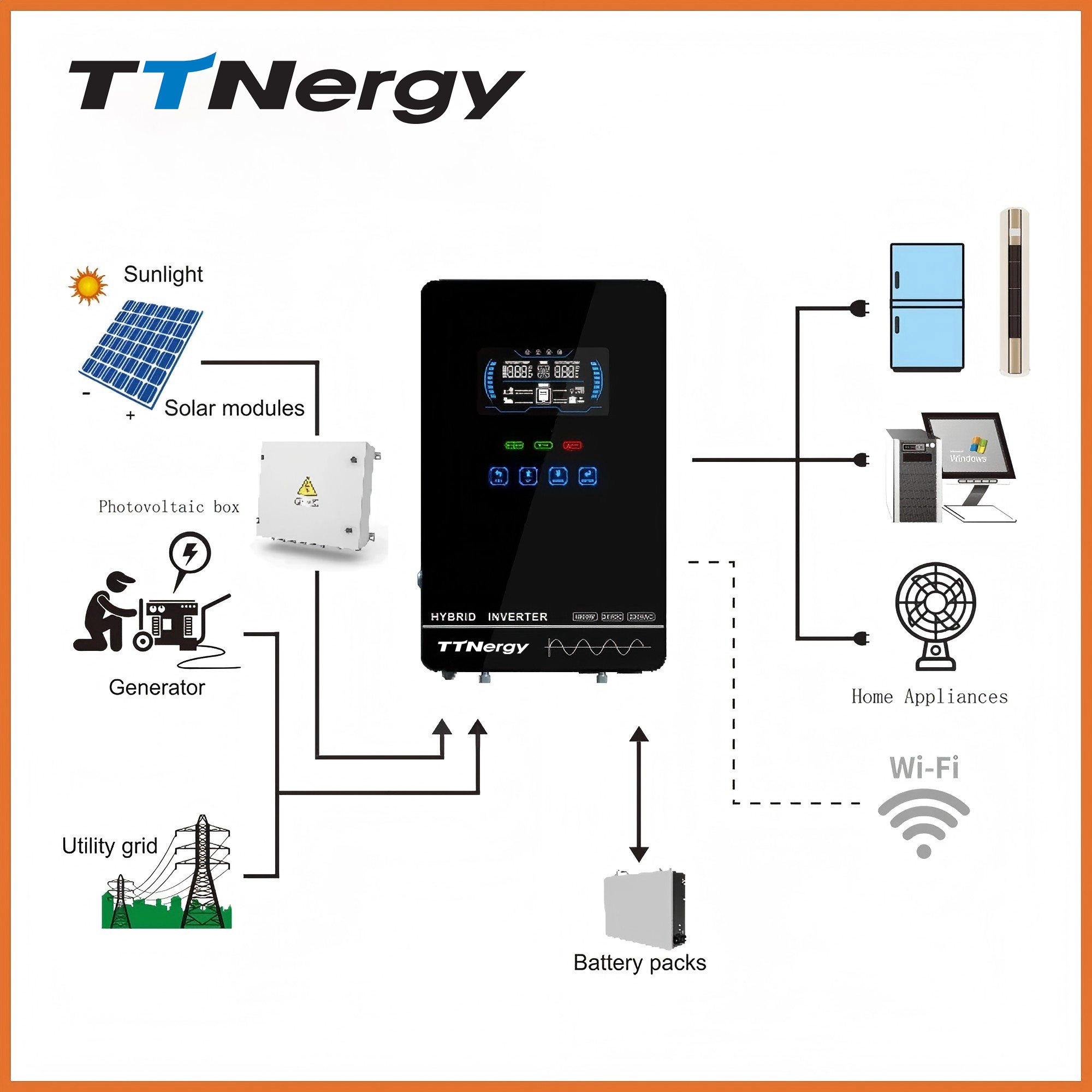

1. Work with/without battery

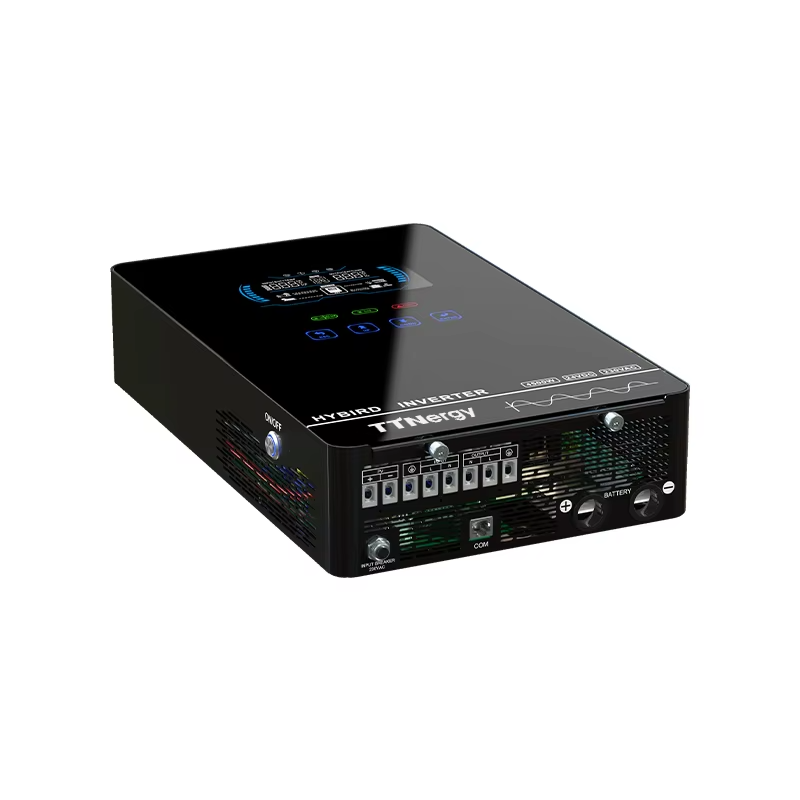

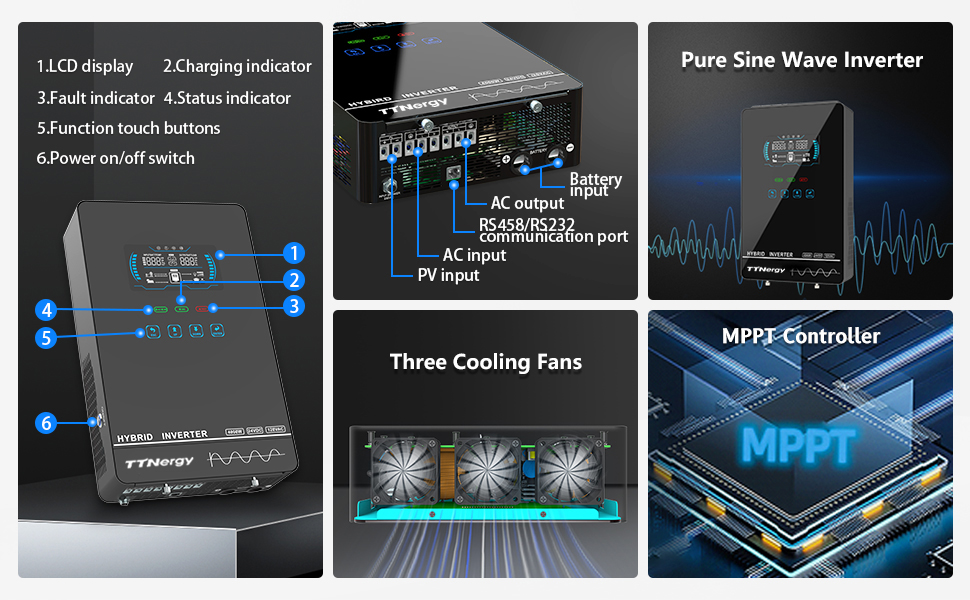

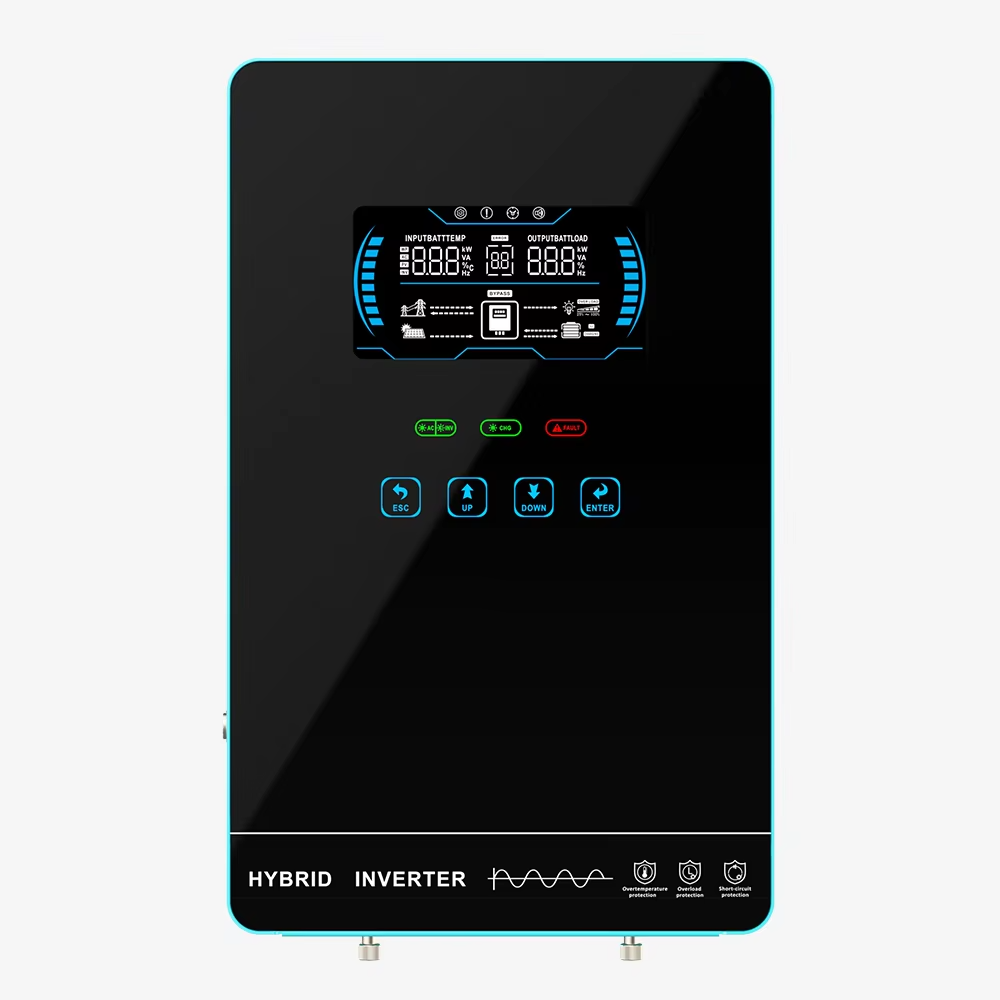

2.Unique glass top cover design with 6.25 inch LCD display and touchable buttons
3. Built-in140A MPPT (Max PV 5600W) solar charger
4. High PV input range from 55V-350Vdc
5. Auto restart while PV is recovering

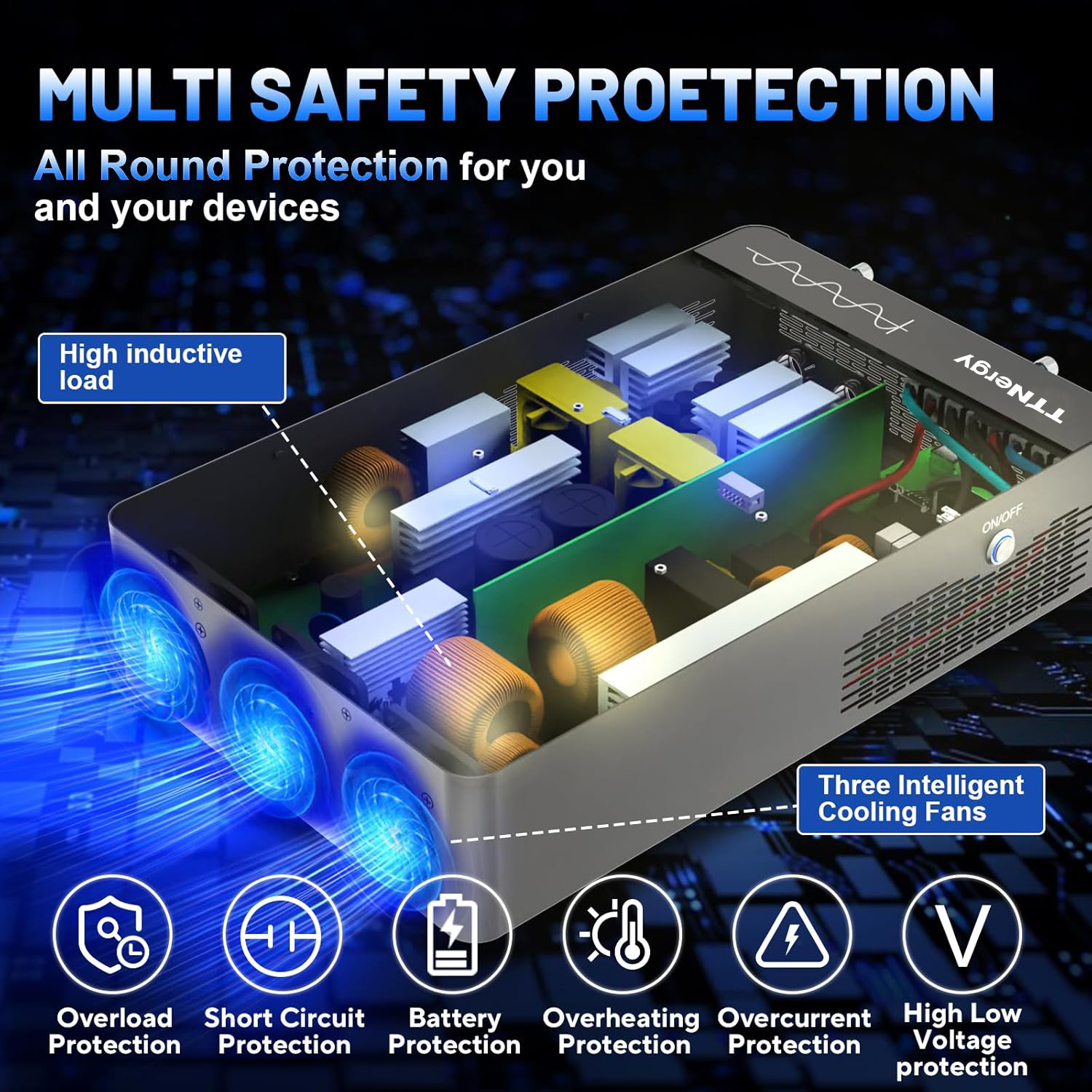

6.Over-load ,overtemperature and output short circuitprotection
7.Cold restart function

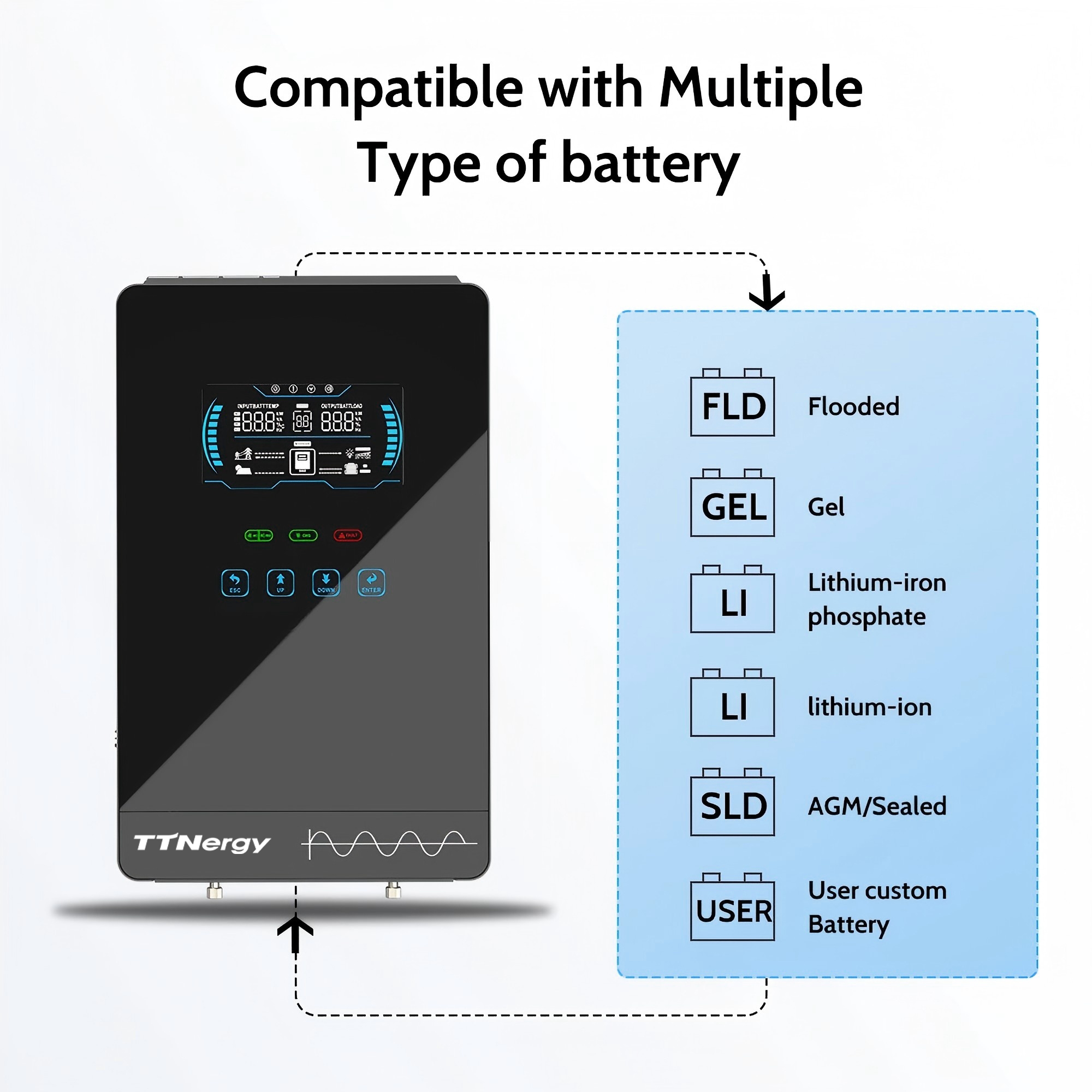

8.Built-in lithium battery automatic activation
9.Communication with RS232/RS485
10.WiFi monitoring function,and Anti-dust kit for harsh environment(optional )

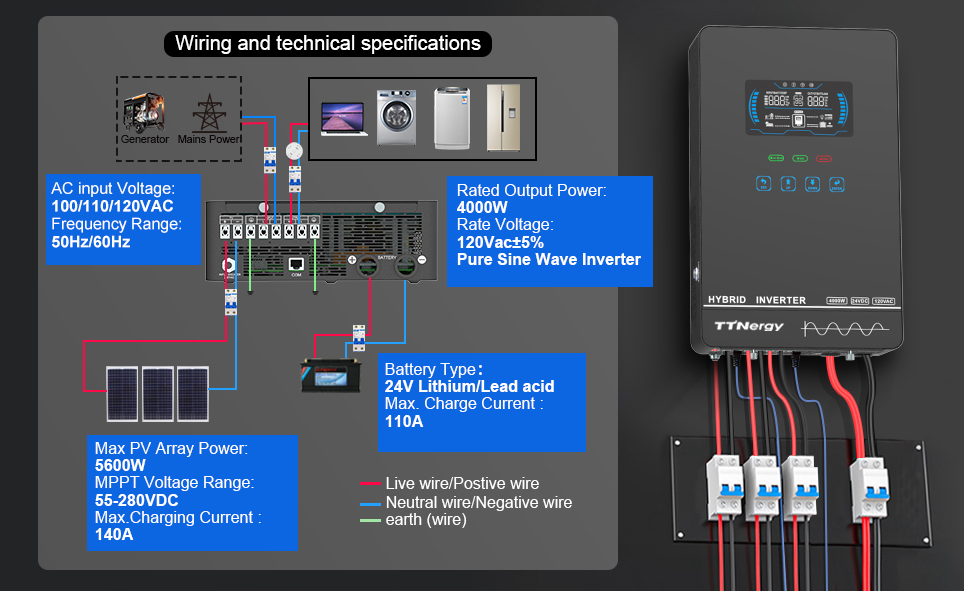

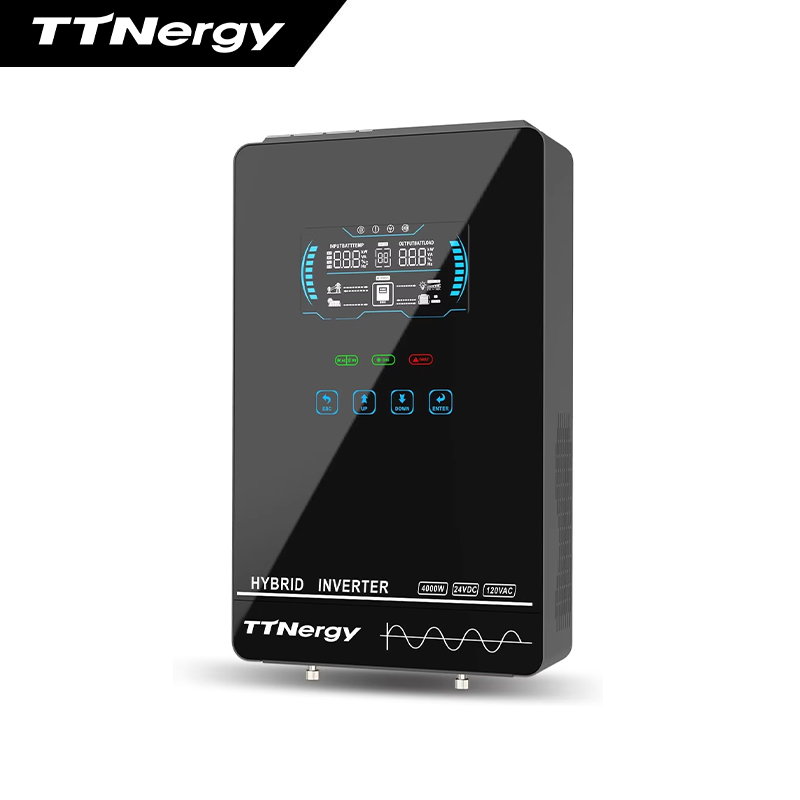

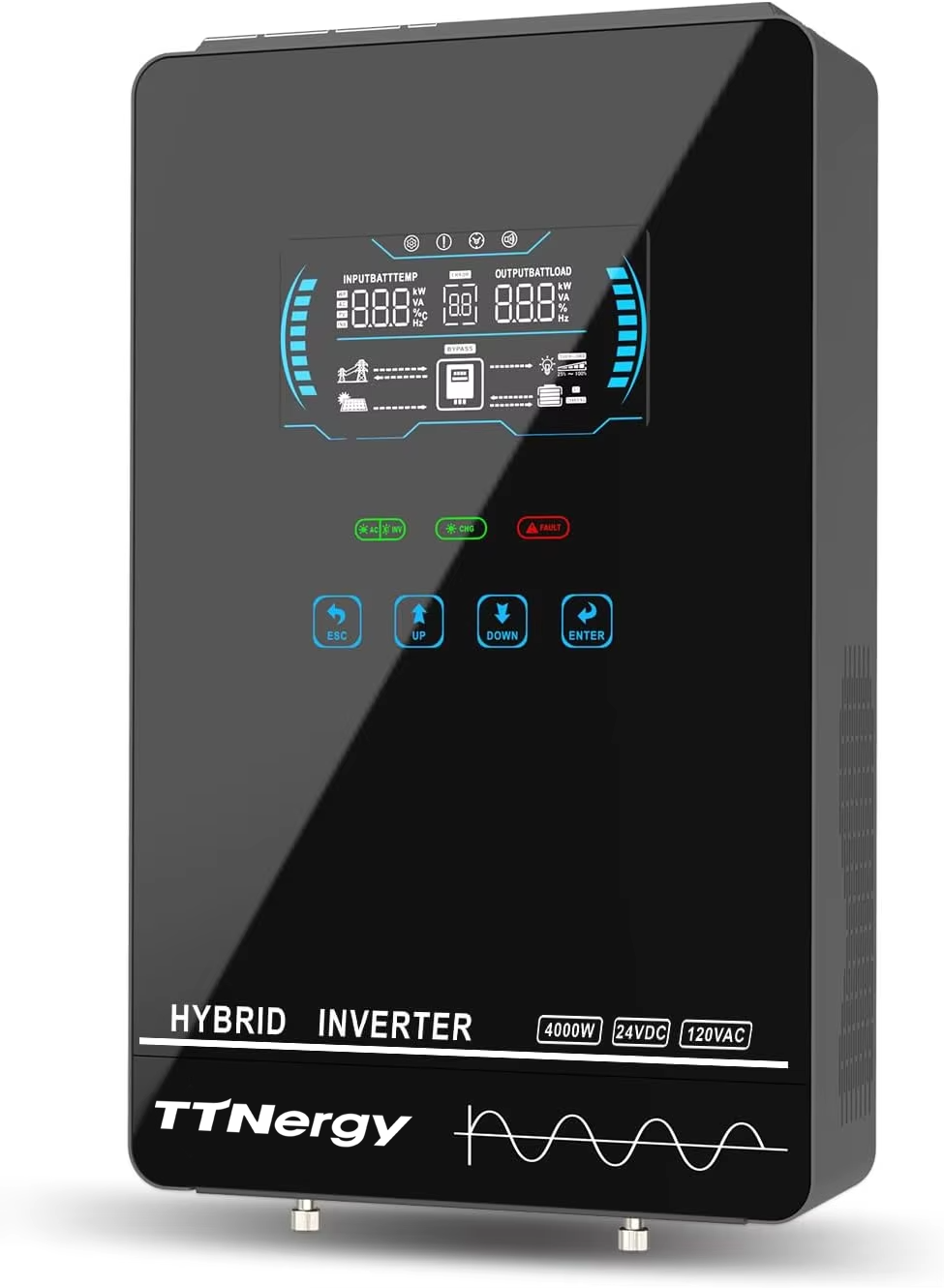

| Model Name | HGX-4KW-120V |
| Rated/ Continious Output Power | 4000 watts |
| Surge/Peak Power at startup | 8000 watts |
| Output Voltage | AC100V-130V Settable |
| Output Frequncy | 50Hz/60Hz(Settable) |
| Maxinum PV Array Input | 5600W, 350VDC, 20A |
| PV Start-up Voltage | 90VDC |
| PV Array MPPT Volatge Range | 55-350VDC |
| Recommended PV Input Range | 90-280VDC |
| AC Input | 90-140VAC |
| Maxinum Charging Current | Solar 140A, AC 110A, Solar+AC 140A |
| Battery Nominal DC Volatge | 24VDC |
| Bulk Charging Voltage Range | 24V-29.2VDC |
| Float Charging Voltage Range | 24V-29.2VDC |
| Low DC cut-off Voltage Range | 20V-24VDC |
| Over Charger Protection | 32VDC |
