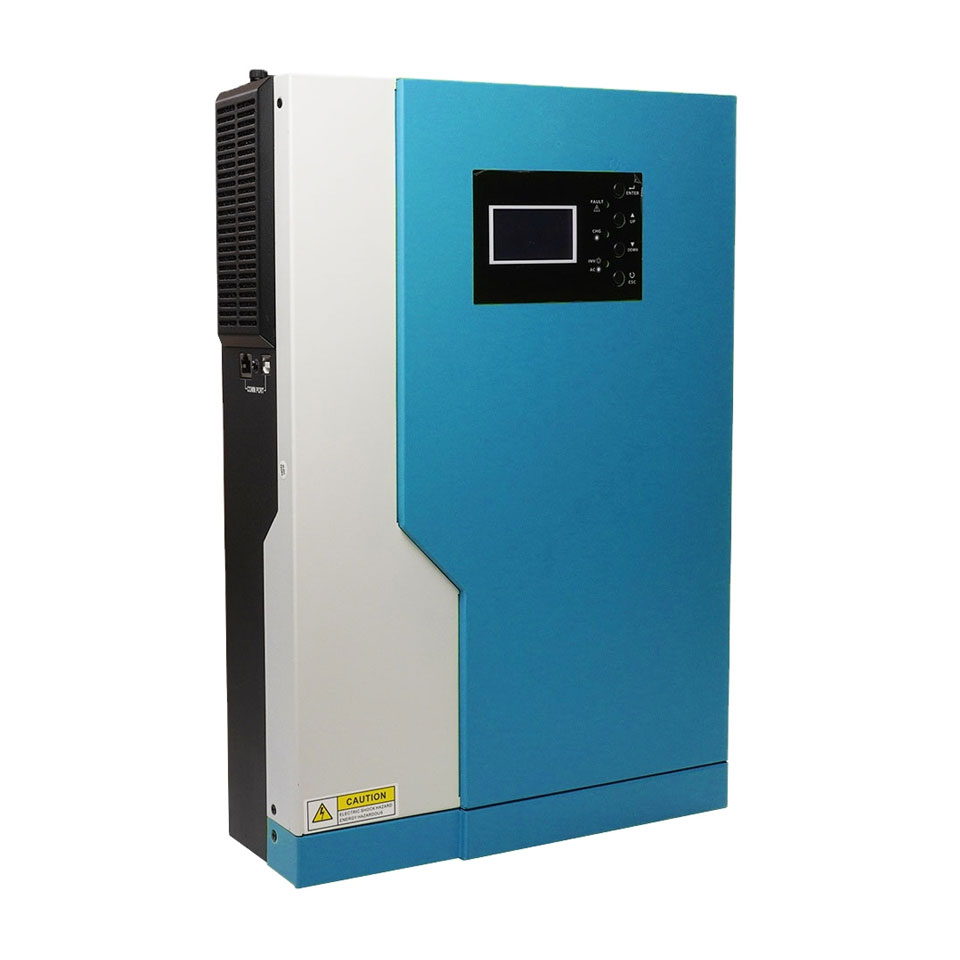

1kva~5kva PWM Hybrid Solar Inverter Off Grid Solar Inverter

Additional information

Output power	800~4000w
Type	DC/AC Inverters
Output Current	30A
Display	LCD Display

Leave your information to get the lowest quotation on the Internet

Product Information

TTN Solar Inverter

An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity altogether. Hybrid Solar Inverter

The Grid-interactive inverter consists of several hardware elements. The Grid-interactive inverter controls and monitors the connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand. Hybrid Solar Inverter

TTN-PS 1K / 3K / 5K

Higher yields / Safe & Reliable / Smart / User-friendly

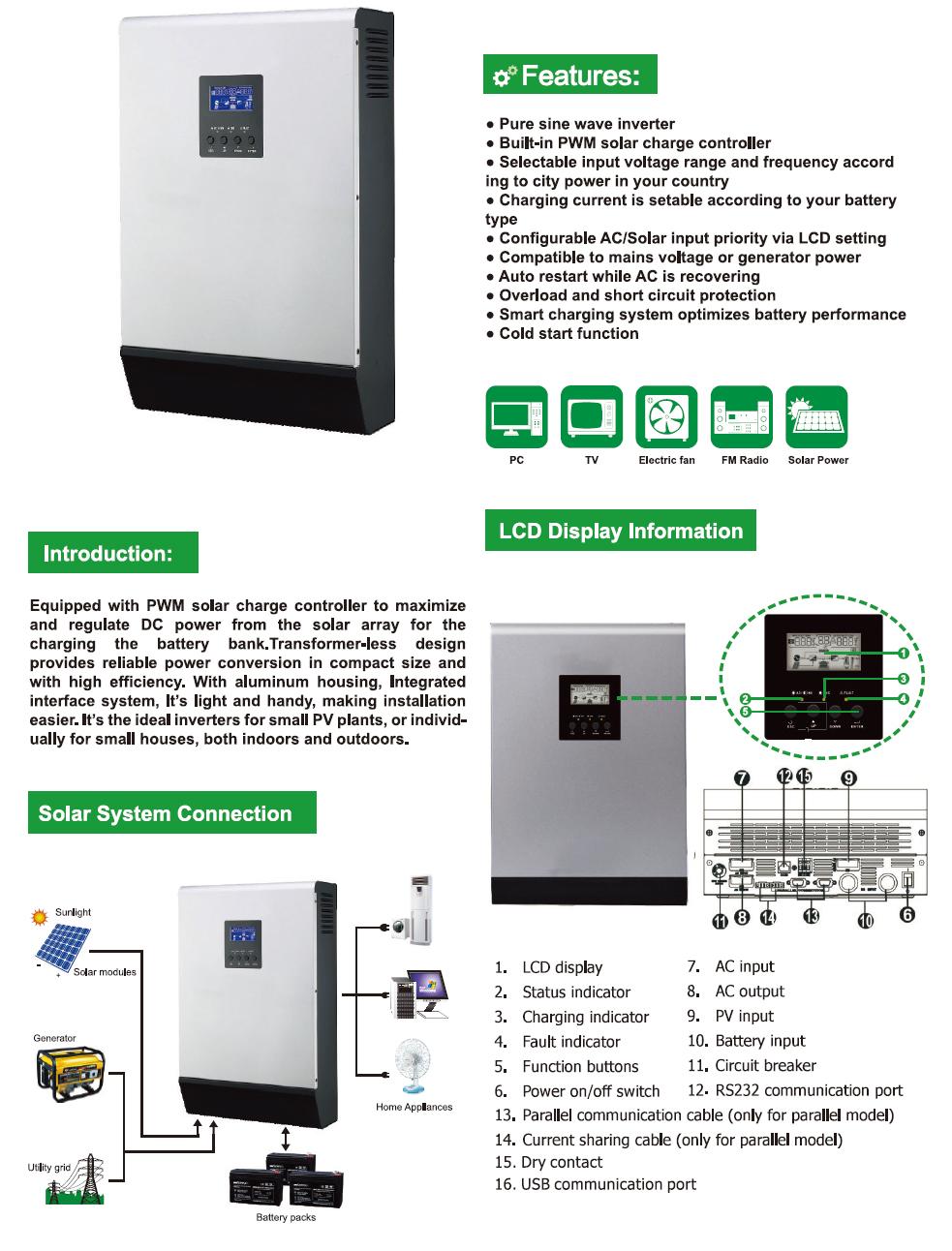

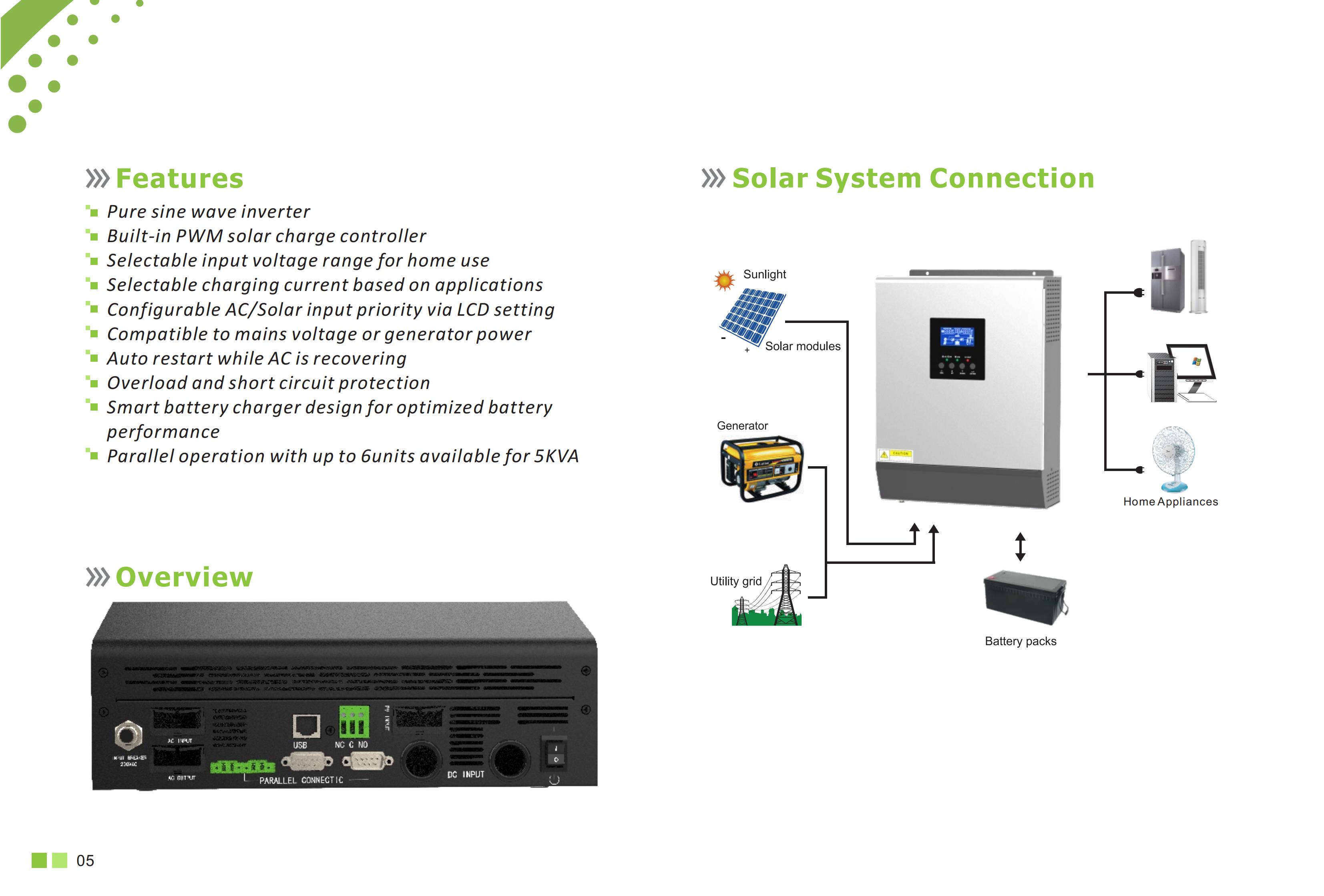

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Pure sine wave inverter
Built-in PWM solar charge controller
Selectable input voltage range and frequency according to city power in your country
Charging current is settable according to your battery type
Configurable AC/Solar input priority via LCD setting

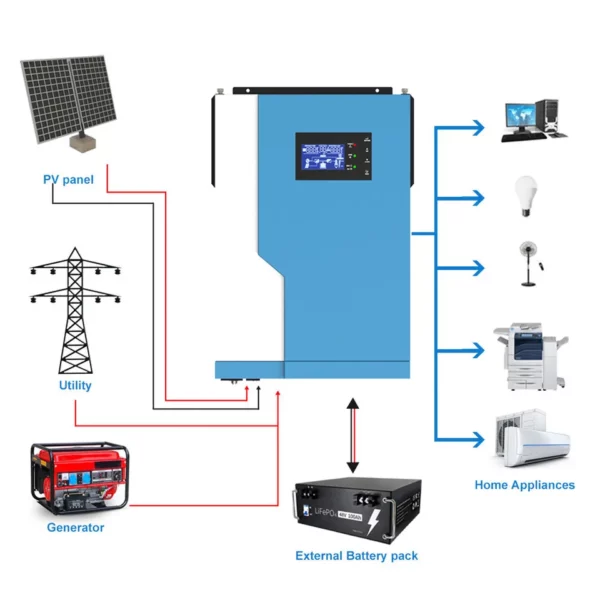

Compatible with mains voltage or generator power
Auto restart while AC is recovering
Overload and short-circuit protection
Smart battery charger design for optimized battery performance
Cold start function

Model NO.		TTN-PS 1K	TTN-PS 3K	TTN-PS 5K
Rated Power		1000VA/800W	3000VA/2400W	5000VA/4000W
INPUT	Phase&waveform	230 VAC
	Voltage selectable range (for Personal Computer)	170~280 VAC
	Voltage selectable range (for home appliance)	90~280 VAC
	Frequency range	50Hz/60Hz (Auto sensing)
OUTPUT	AC voltage Regulation (Batt.Mode)	230V AC ± 5%
	Surge Power	2000VA	6000VA	10000VA
	Efficiency (Peak)	90%	93%
	Transfer time	10ms (for personal computer),20ms (for home appliance)
	Wave form	Pure sine wave
Battery& AC Charger	Battery voltage	12VDC	24VDC	48VDC
	Floating charge Voltage	13.5VDC	27VDC	54VDC
	Overcharge Protection	15VDC	30VDC	60VDC
	Maximum Charge Current	10A or 20A	20A or30A	10A/20A/30A/40A/50A/60A
PV Input	Charge current	50A
	MPPT Range @ Operating Voltage (VDC)	50VDC	60VDC	105VDC
	Standy powr consumption	1W	2W	2W
Physical	Dimension, D×W×H (mm)	305x300x110	305x272x100	413x295x120
Physical	Net Weight (Kgs)	4.5	6.9	9.8
Environmental	Humidity	5%~95% Relative Humidity (Non-condensing)
	Operation Temperature	0℃~55℃
	Storage Temperature	-15℃~60℃

Note:

How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.
For details, please refer to the manual recommendation or consult online customer service.
