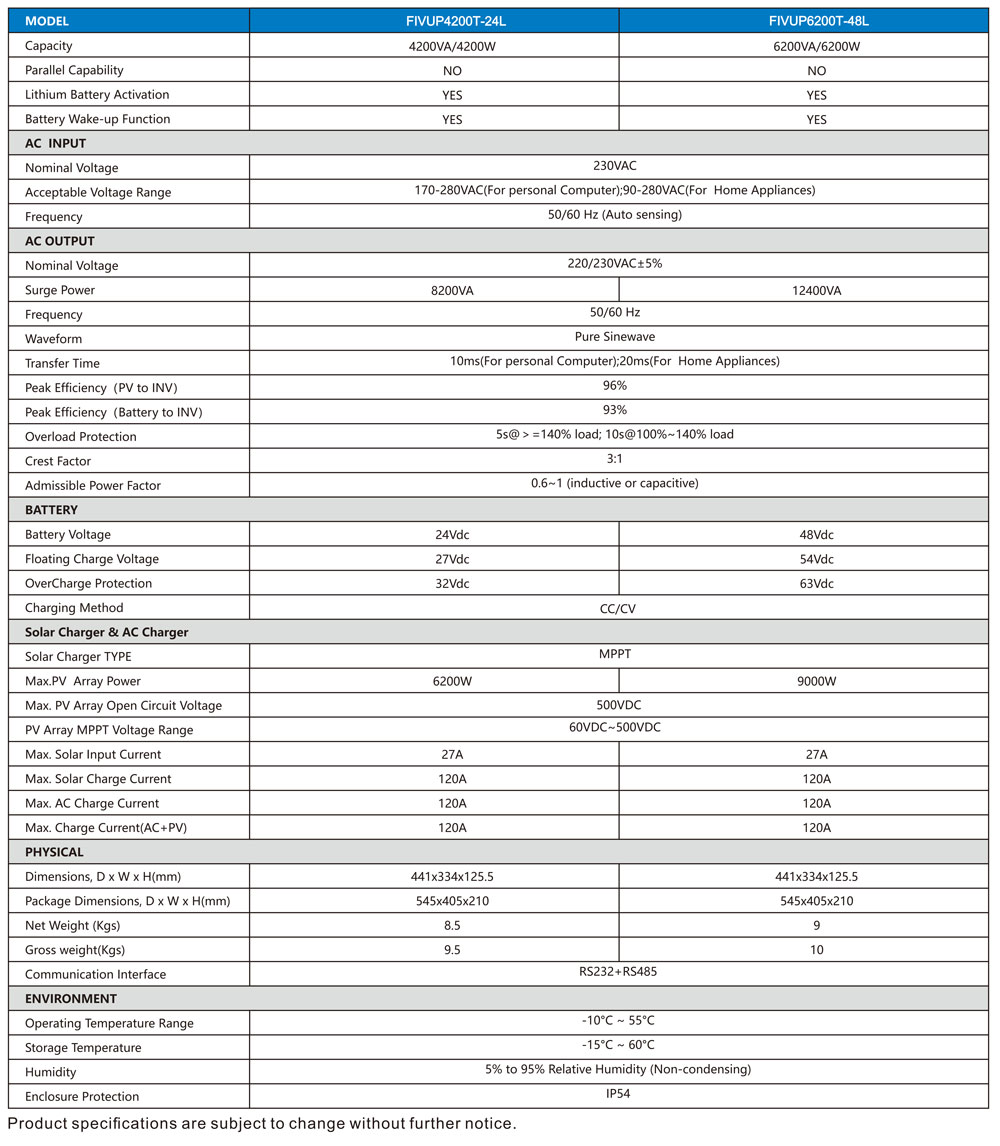

| Operating Temperature Range | -10°C~55°C |
|---|---|
| Storage Temperature | -15°C~ 60°C |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Enclosure Protection | IP54 |
-IP54 design
– Dual AC output
– Built-in 2 MPPT
-Parallel max up to 6 units
– Lithium battery activation function by PV or Utility- Compatible work with LiFePO4 battery via RS485
– Pure Sine Wave
– Power factor 1.0
– PV Input 500Vdc Max
– Built-in MPPT 160A
– Capable to work without battery
– Detachable dust cover for harsh environment
– WIFI remote monitoring optional- Support multiple output priority: SUB,SBU,SUF- EQ function to optimize battery performance and extend lifecycle
