24/48v 1.5-6kw Low Frequency MPPT Off Grid Hybrid milwaukee power inverter

24/48v 1.5-6kw Low Frequency MPPT Off Grid Hybrid milwaukee power inverter

Additional information

Color

Customized OEM

Load

3500w

Product Information

TTN Hybrid Inverter

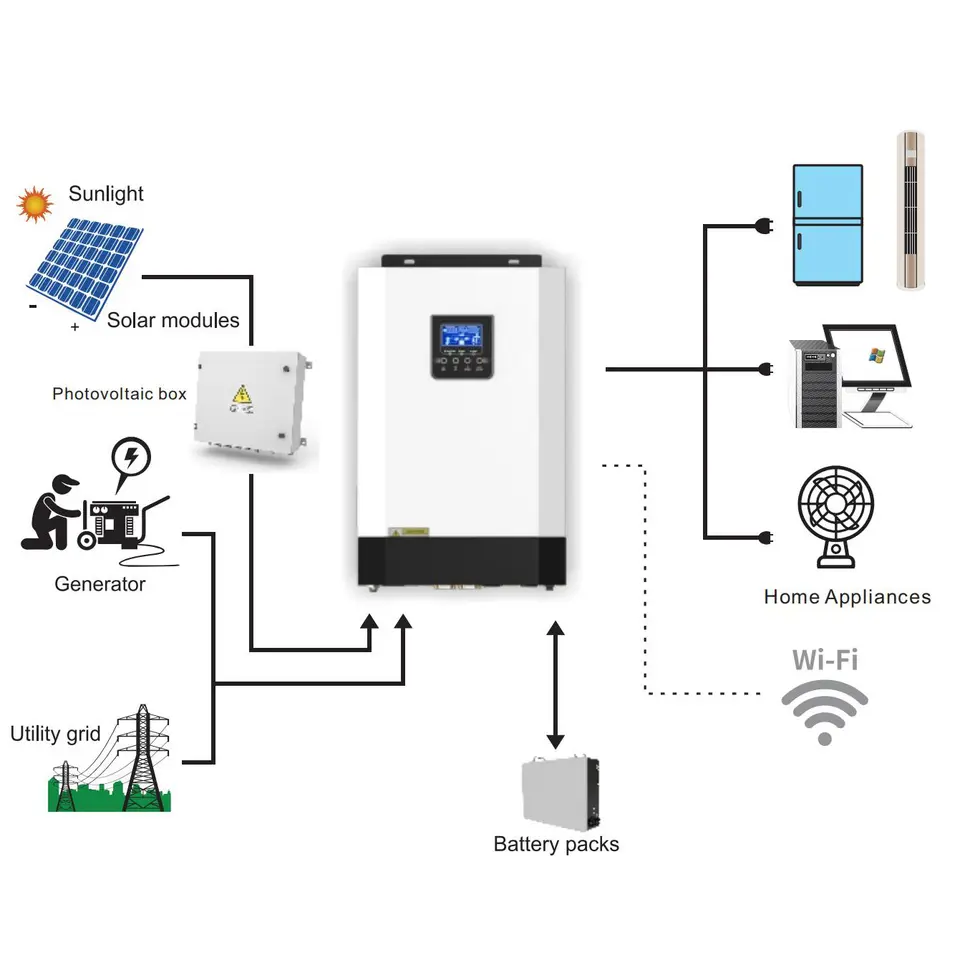

Milwaukee Power Inverter An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid Solar Power Inverter goes a step further and works with batteries to store excess power as well. In the developing world, hybrid Solar Power Inverter are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity altogether.


The Milwaukee Power Inverter consists of several hardware elements. The Milwaukee Power Inverter controls and monitors the connection of the electricity from the power plants. In addition, it also controls the disconnection of excess power from the plants. It ensures the dispatch of power at the peak time based on demand.
TTN-MPS-H/TTN-MPS-HP

Higher yields / Safe & Reliable / Smart / User-friendly

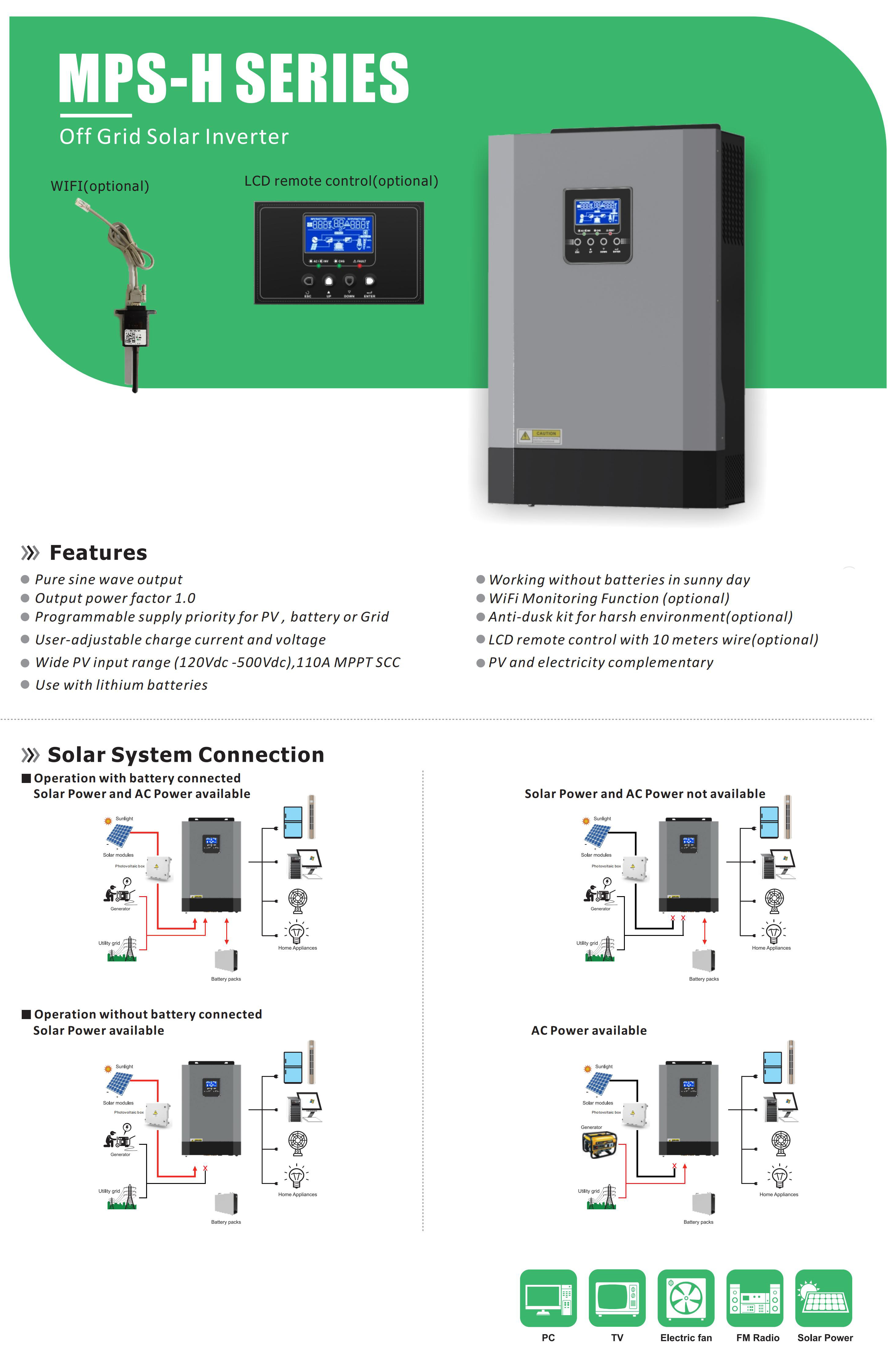

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.


•High efficiency pure sine wave inverter(PF=1);
• Wide PV input range(120Vdc–500Vdc)110A MPPT SCC;
•Surges to 2X continuous power for 5 seconds for motor loads.
• Intelligent functionality enables utility and solar input prioritication
•Wide utility input range(90Vac–280Vac)for unreliable grid even
• In the most challenging environments.
• Field serviceable with replacement boards and spare parts.
• Monitor,troubleshoot,or communication with USB/RS232.
•System configures quickly into compact,wall-mounted system.
• Working without batteries in sun day

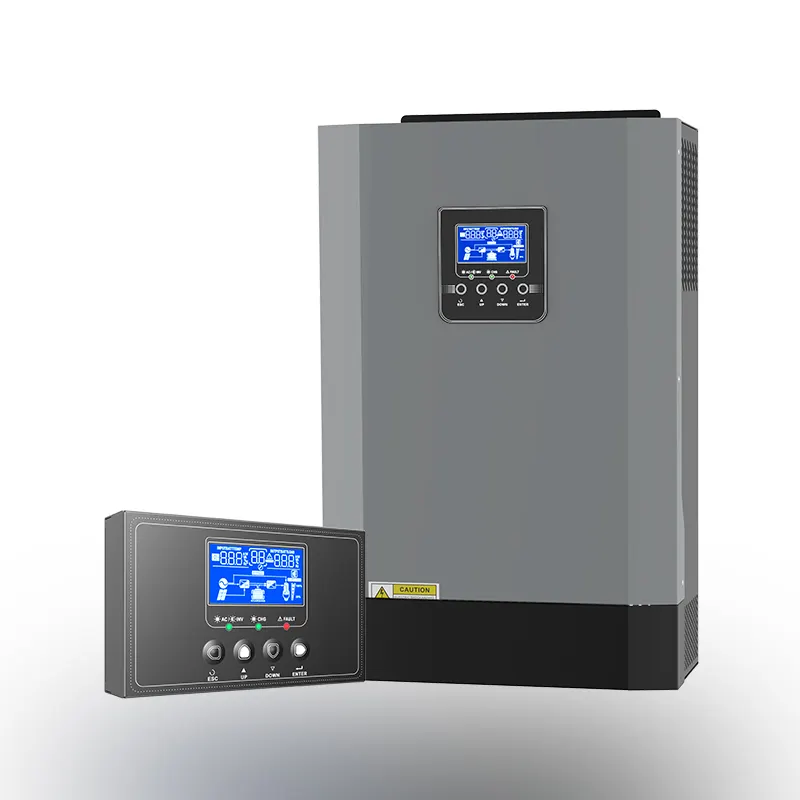

• Remote LCD panel(Optional)

Milwaukee Power Inverter

Note:

How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.
For details, please refer to the manual recommendation or consult online customer service.

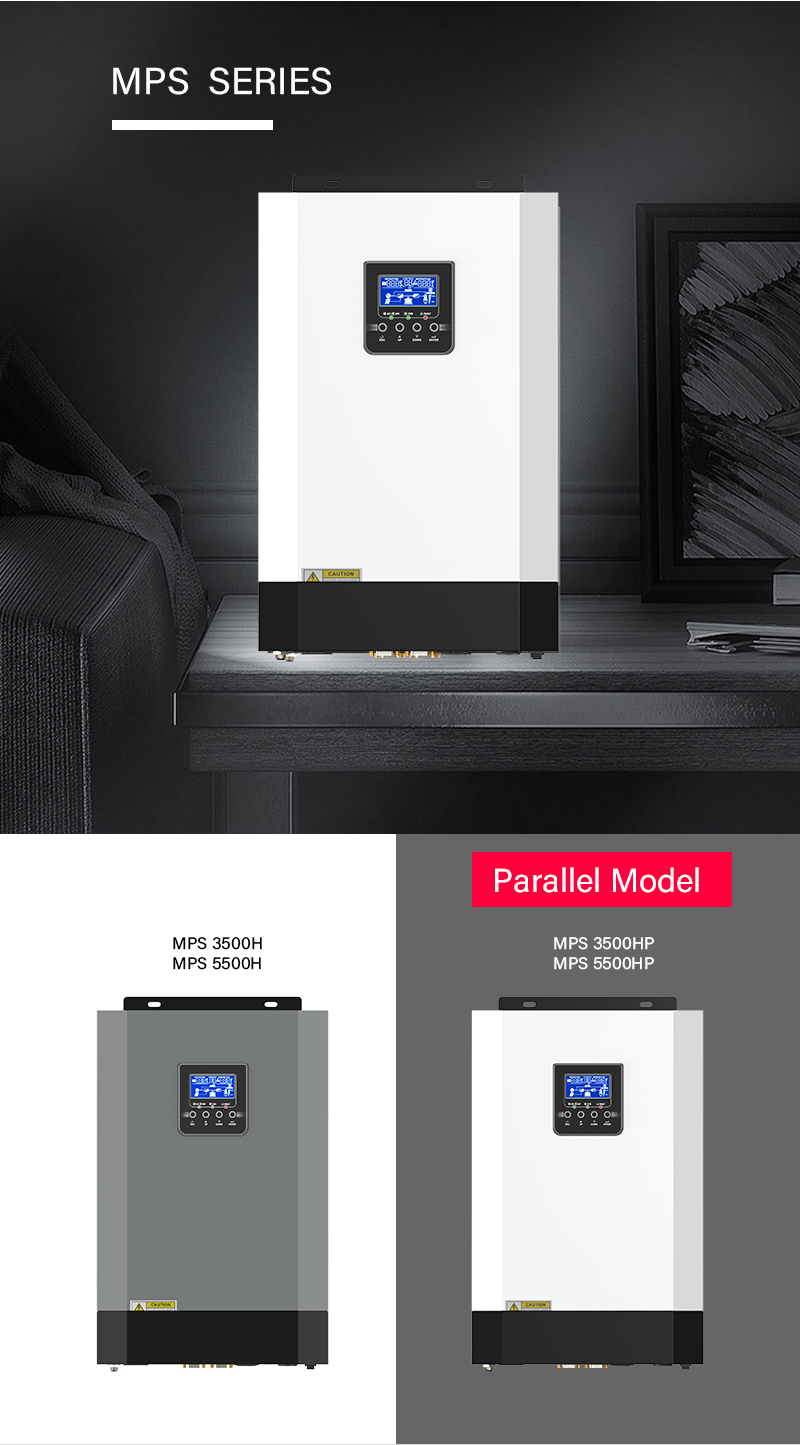

Model No.
TTN-MPS 3500H/MPS 3500HP
TTN-MPS 5500H/MPS 5500HP
Rated power
3500VA /3500W
5500VA /5500W
Input
voltage
230VAC
selectable voltage range
170-280VAC(For Personal Computers) 90-280Vac(For Home Appliances)
Frequency range
50Hz/60Hz(Auto Sensing)
Output
AC voltage regulation (Batt.mode)
230VAC ±5%
Surge power
7000VA
11000VA
Efficiency (peak)PV to INV.
97%
Efficiency (peak)Battery to INV.
94%
transfer time
10 ms(For Personal Computers);20ms(For Home Appliances)
waveform
Pure sine wave
Battery&AC charger
battery voltage
24VDC
48VDC
floating charge voltage
27VDC
54VDC
overcharge protection
33VDC
63VDC
maximum charge current
80A
80A
Solar charger
MAX PV array power
5000W
6000W
MPPT range@ operating voltage
120~450VDC
maximum PV array open circuit voltage
500VDC
maximum charging current
110A
maximum efficiency
98%
Physical
Dimension, D*W*H(mm)
472*297*129
Net weight (kgs)
13
14
Communication interface
RS485/RS232(Standard) LCD remote/WIFI(Optional)
operating Environment
humidity
5% to 95% Relative Humidity(Non-condensing)
operating temperature
0℃ to 55℃
storage temperature
-15℃ to 60℃
Milwaukee Power Inverter
NOTE 1: This is a wide voltage Hybrid inverter. The voltage that starts to connect to the solar panel must be above 150V for the Hybrid inverter to work normally.
NOTE 2: This Hybrid Inverter supports the WIFI function but without the WIFI Monitor.
Product Details
Milwaukee Power Inverter
