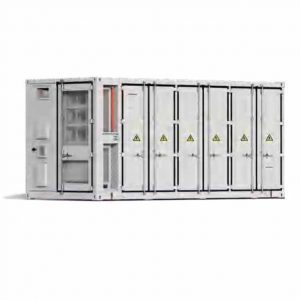

Prime Battery Container

Additional information

DC Side
Battery Type	LFP(Lithium lron Phosphate)
Configuration	10P384S *2
Battery Capacity (BOL) at DC side (kWh)	6880
Nominal DC Voltage (V)	1228.8
Nominal AC Power (MW)	3.44
Rated Charge (Discharge) Rate	0.5C
Operating Voltage Range (V)	1075.2-1382.4
Standard Charge (Discharge) Current (A)	1400×2
Cooling Mode	Liquid Cooling
Coolant	Ethylene Glycol: Aqueous Solution (50%v: 50%v)
Cycles	8000
Fire Extinguisher	NOVEC1230/FM200(optional); water- based fire suppression system
Fire Safety Equipment	Smoke, heat & flammable gas detector
Battery System
Operating Temperature Range (°C)	-30°C~50°C(>45°℃ derating)
Noise (dB)	< 80
Dimensions (WDH)(mm)	20ft (single container)
Weight (T)	2×32
Anti-corrosion	C3/C4/C5(optional)
IP Rating	Battery Compartment: lP54/P55 (optional) Electrical Compartment:1P54
Relative Humidity	0-95%(no condensation)
Standard Altitude (m)	≤2000(>2000 derating)
Efficiency	Up to 86%
Communication Interface	CAN, Ethernet, RS485
Communication Protocol	ModbusTCP/RTU, IEC61850, Goose
