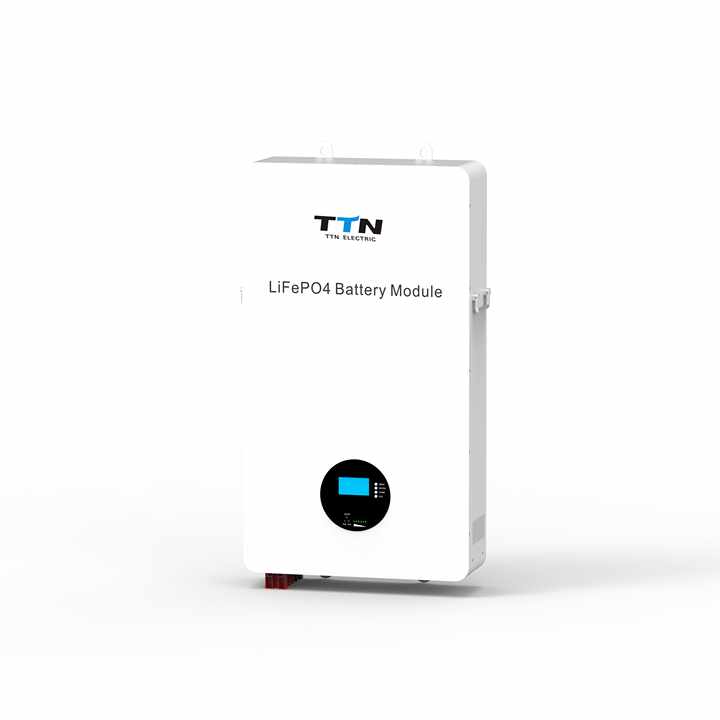

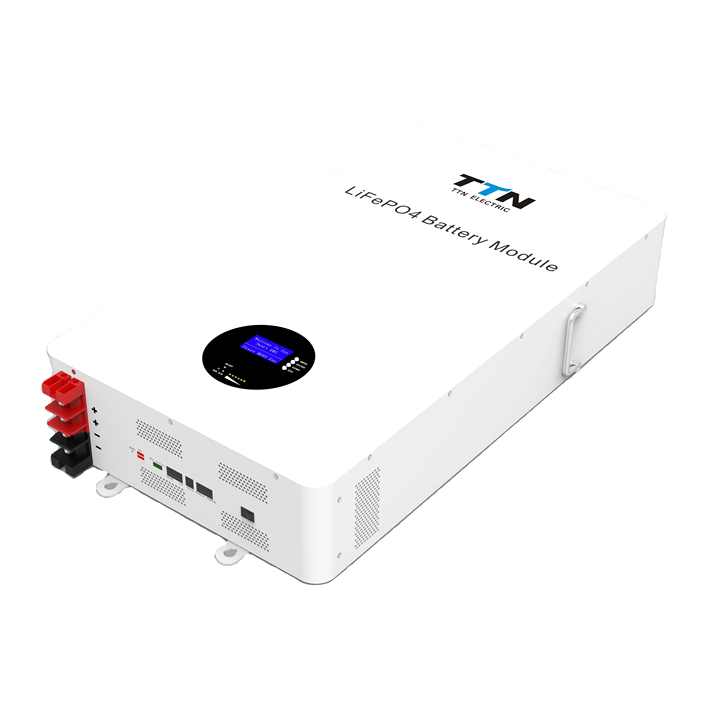

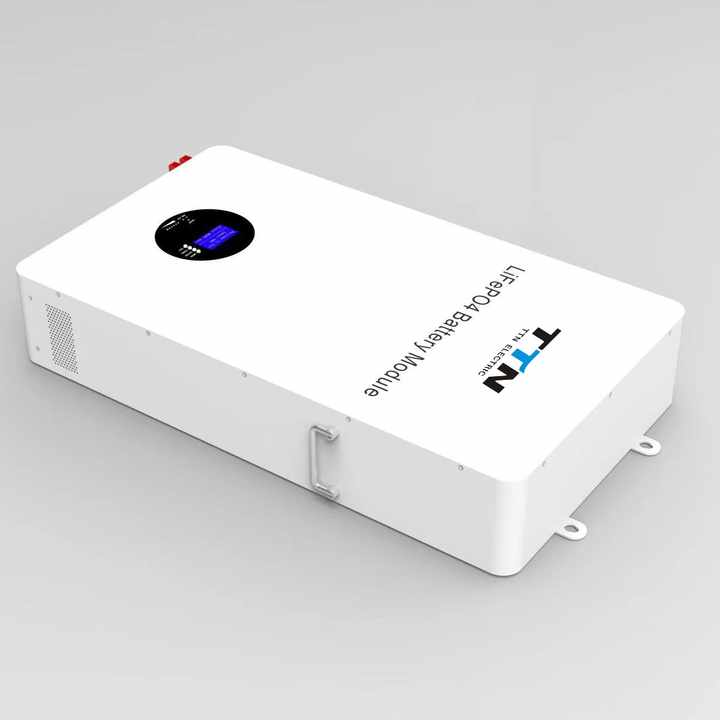

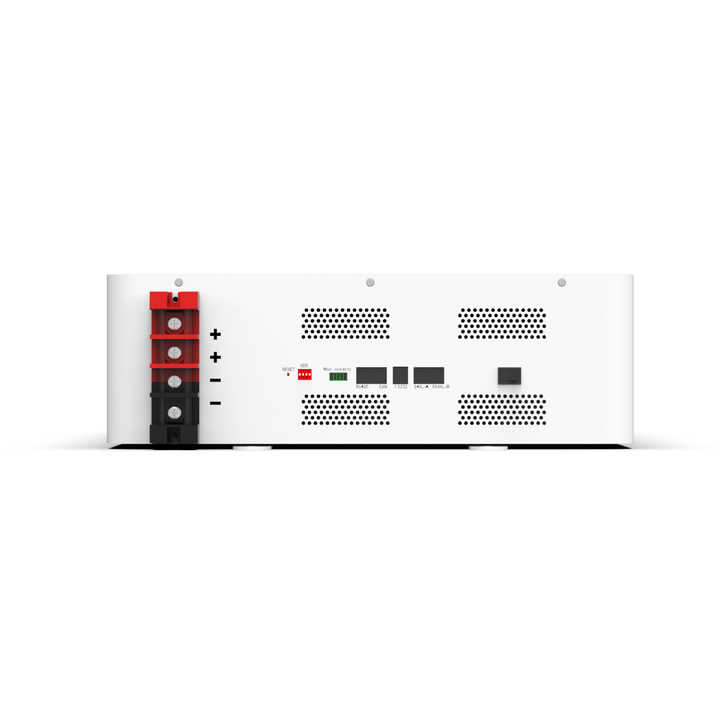

Lifepo4 Solar Lithium Ion Battery 48v 200ah 5/10kwh 6000 Cycle Storage System Wall Mounted Battery
Lifepo4 Solar Lithium Ion Battery 48v 200ah 5/10kwh 6000 Cycle Storage System Wall Mounted Battery
Additional information
| Voltage | 48V/51.2V |
|---|---|
| Charge ways | CC/CP/VP |
| Inverter Type | Pure Sine Wave |
| Size | 590*375*245mm |
| Battery Type | LiFePO4 |
| Capacity | 200ah |
| Controller Type | MPPT |
| Cycle Life | 3000 times |
| Weight | 88KGS |
Product Information
A solar lithium battery is a cutting-edge energy storage solution that harnesses the power of the sun to provide reliable, clean energy. These batteries are designed to store energy generated by solar panels during the day, allowing you to use them at night or during times of low sunlight. With their long lifespan, high efficiency, and low maintenance requirements, solar lithium batteries are an excellent choice for anyone looking to reduce their carbon footprint and save money on energy bills. This Solar Lithium Battery can benefit your home or business today.
|
Core Material
|
LiFePO4
|
|
Rated Voltage
|
51.2V
|
|
Series Parallel Mode (S series, P parallel)
|
16S2P
|
|
Rated Capacity
|
200Ah@0.2C
|
|
Rated Power
|
10240Wh
|
|
Internal Resistance
|
≤30mΩ
|
|
Communication
|
RS485/RS232/CAN
|
|
Display
|
LCD
|
|
Cycle Life
|
>2000 times @ 25℃
|
|
Application
|
Hospital, bank data center, wall-mounted home, enterprise energy storage backup power supply, wind complementary system, office,
military, base station and other uninterrupted energy storage power supply |
|
Charging Mode (CC/CV)
|
CC/CP/VP
|
|
Charging Current
|
0.2C (Standard)
|
|
Charge Cut Off Voltage
|
58.4V/CELL
|
|
Max Charge Current
|
Max0.5C @25℃
|
|
Discharge Cut Off Voltage
|
44.8V
|
|
Discharge Mode
|
CC/CP/VP
|
|
Discharge Current
|
0.5C@25℃
|
|
Max Discharge Current
|
Max0.6C @25℃
|
|
Charge Working Temperature Range
|
0~+50℃
|
|
Discharge Working Temperature Range
|
-20 +55℃
|
|
Storage Environment
|
25±5℃
|
|
Water Dust Resistance
|
IP55
|
Product packaging
Enquiry more about: Lifepo4 Solar Lithium Ion Battery 48v 200ah 5/10kwh 6000 Cycle Storage System Wall Mounted Battery
