TTN SGPC Solar Power Inverter with AC Charger 500W~6000W
TTN SGPC Solar Power Inverter with AC Charger 500W~6000W
Additional information
| Input Voltage | 12VDC / 24VDC / 48VDC / 36VDC / 72VDC / 96VDC |
|---|---|
| Output Voltage | 110VAC / 120VAC / 220VAC / 230VAC /240VAC |
| Frequency | 50Hz / 60Hz |
| Output Waveform | Pure Sine Wave |
Leave your information to get the lowest quotation on the Internet
Product Information

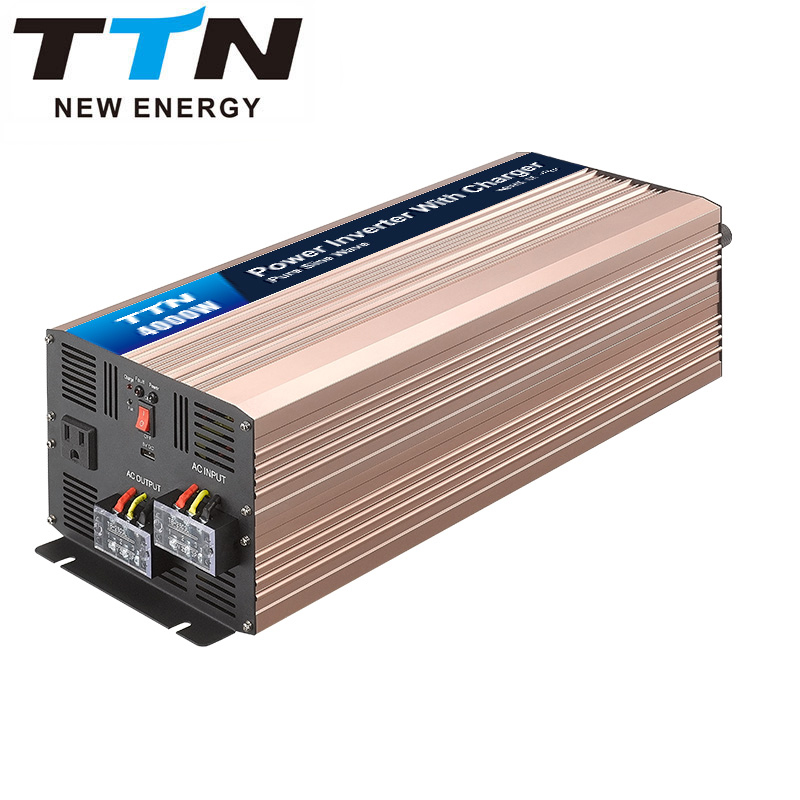

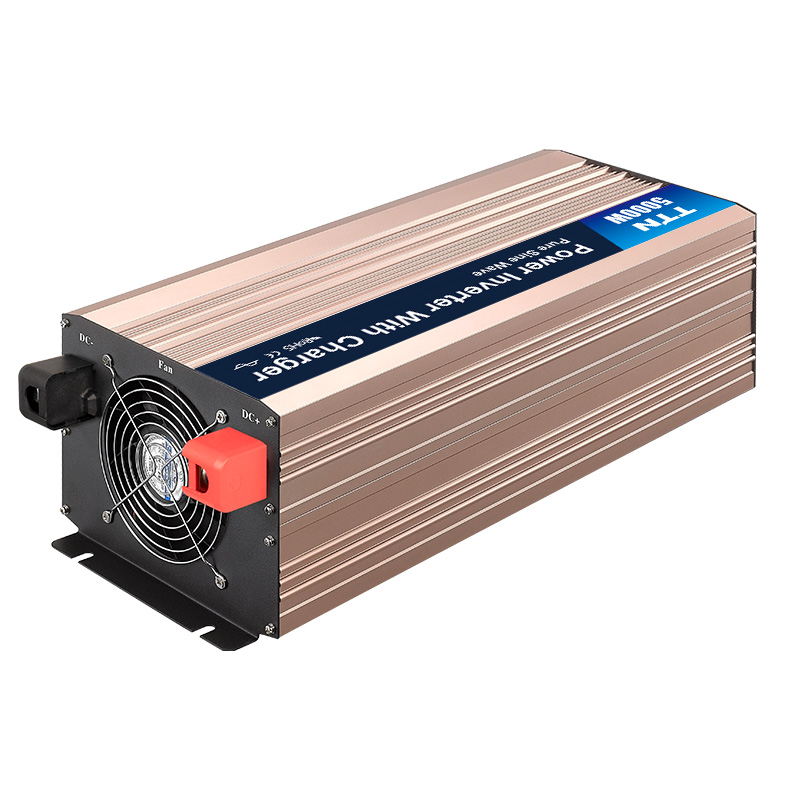

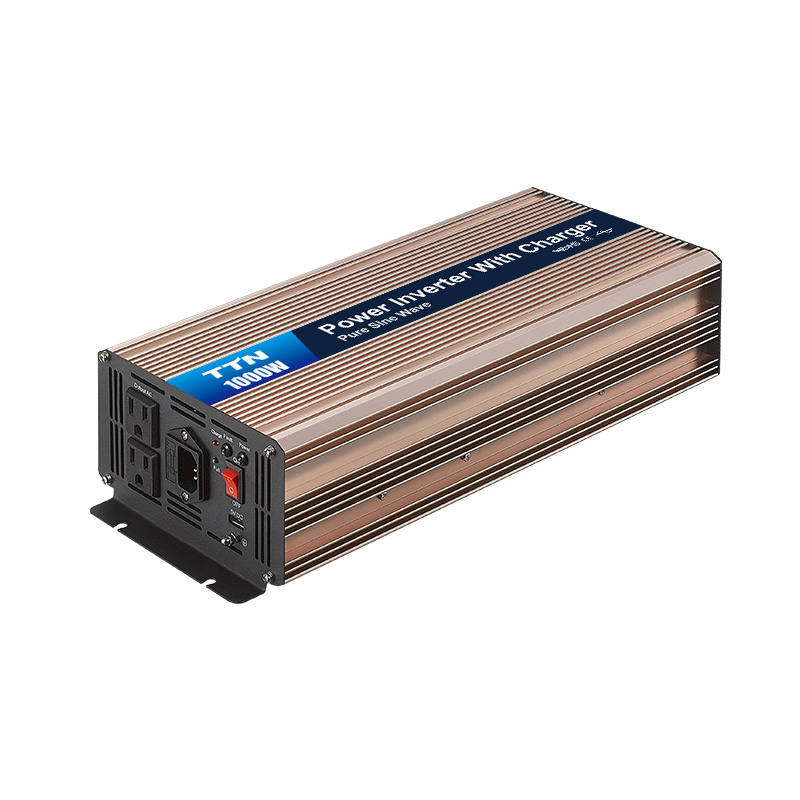

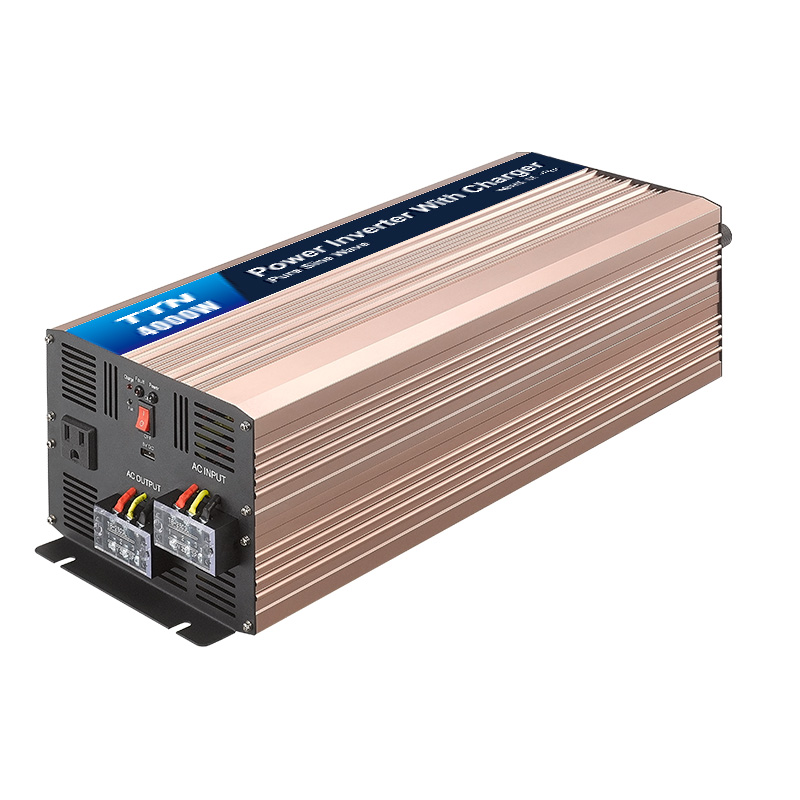

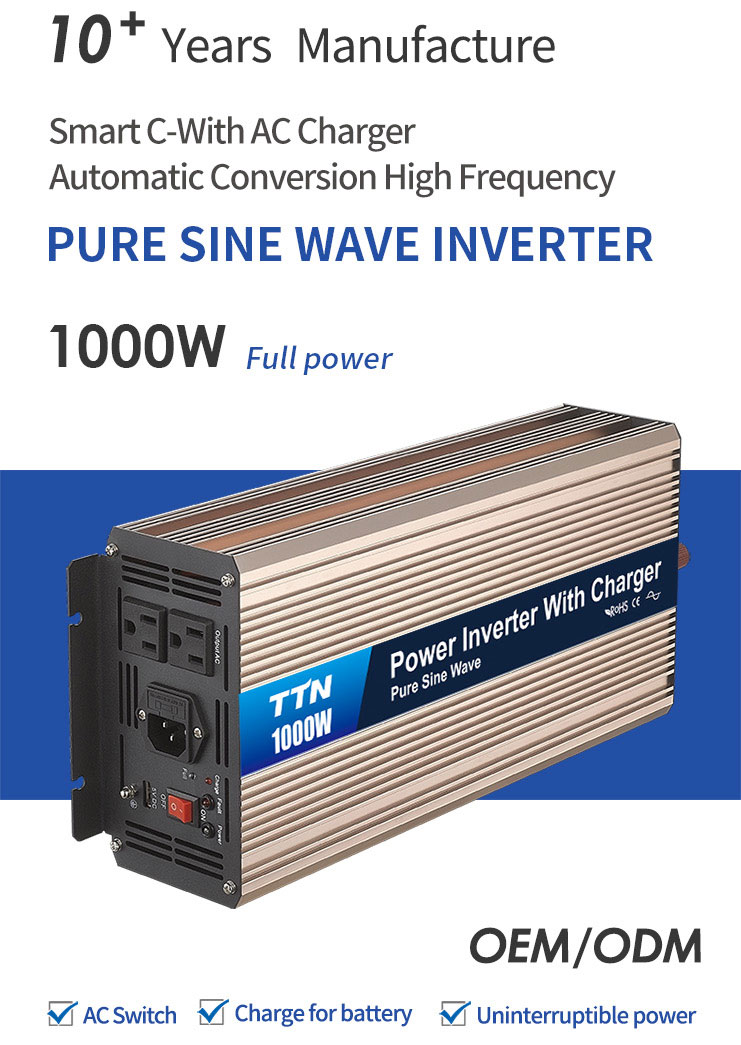

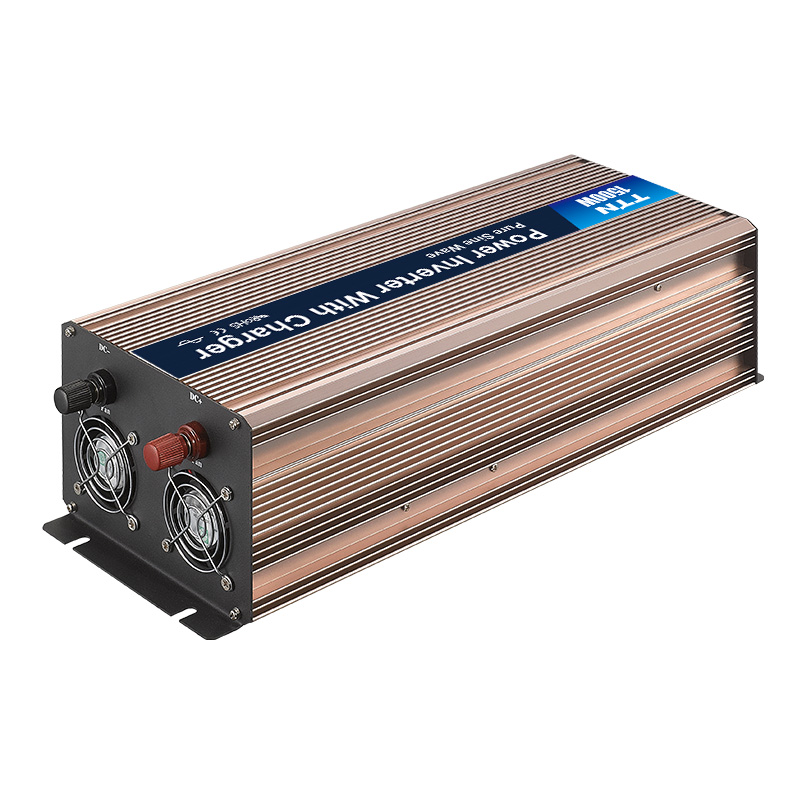

TTN Solar Power Inverter With AC Charger
TTN-SGPC 500W / 1000W / 1500W / 2000W
/ 3000W / 4000W / 5000W / 6000W
Introduction of Solar Power Inverter:
1. This inverter power supply adopts SPWM technology controlled by MCU micro-processing, pure sine wave output, and the waveform is indeed pure. The unique dynamic current loop control technology ensures reliable operation of the inverter, high reliability, strong shock resistance, low solder joint defect rate, reducing battery and radio frequency interference.
2. Load adaptability, including inductive load, capacitive load, resistive load, and Hybrid load. High performance at over-load capacity and impact resistance.
3. Eight intelligent protection, overload protection, high voltage protection, low voltage protection, over temperature protection, reverse polarity protection, short circuit protection, over current protection, and insurance protection.
4. The sine wave inverter adopts LCD liquid crystal display mode, and the state is clear at a glance.
5. Stable performance, safe and reliable, long service life.
6. Aluminum-magnesium alloy casing, lightweight, good thermal conductivity, can quickly reduce the temperature of parts,
long-term work is not affected.
long-term work is not affected.
7. intelligent temperature control fan, make the inverter quieter. When the temperature is ≤ 45 °C, the fan stops working; when the temperature is ≥ 45 °C, the fan starts to work.
8. Buzzer reminder device. Once any protection of the inverter is triggered, the inverter will immediately disconnect the power supply, and the load enters the protection mode and reminds people via a buzzer reminder.
9. Low standby power consumption and high conversion rate.

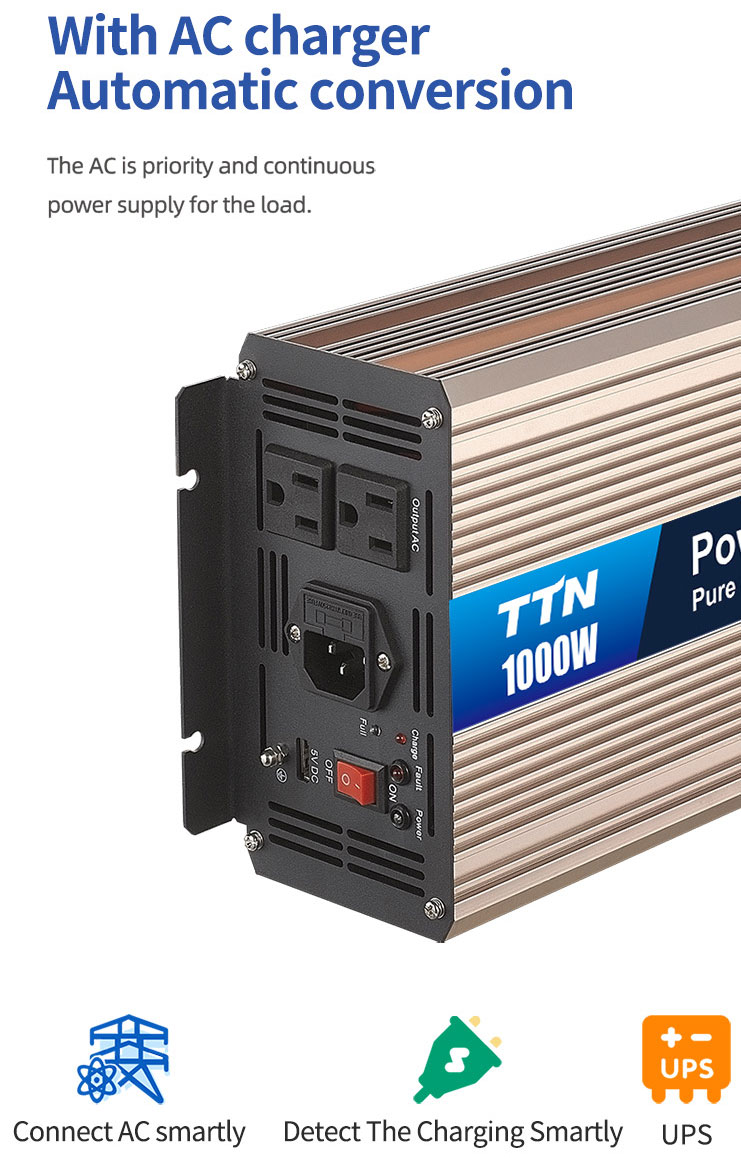

10. Smart C-With AC Charger
|
Model
|
500W-
12/24/48V
|
1000W-
12/24/48V
|
1500W-
12/24/48V
|
2000W-
12/24/48V
|
|
3000W-
12/24/48V
|
4000W-
12/24/48V
|
5000W-
12/24/48V
|
6000W-
12/24/48V
|
|
|
Rated Power
|
500W~6000W
|
|||
|
Peak Power
|
1000W~12000W
|
|||
|
Input Voltage
|
12VDC/24VDC/48VDC/96VDC
|
|||
|
Output Voltage
|
110VAC±5%/220VAC±5%
|
|||
|
USB Port
|
5V1A
|
|||
|
Frequency
|
50Hz±3 or 60Hz±3
|
|||
|
Output Waveform
|
Pure Sine Wave
|
|||
|
Soft Start
|
YES
|
|||
|
Charging Current
|
10/20/30A optional
|
|||
|
Priority
|
City Power First Priority
|
|||
|
Transfer Time
|
4ms
|
|||
|
AC Regulation
|
THD<3%(Linear Load)
|
|||
|
Output Efficiency
|
94% MAX
|
|||
|
No Load Current
|
0.1A~3.8A
|
|||
|
Cooling Way
|
Intelligent Cooling Fan
|
|||
|
Protection
|
Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit. Reverse Polarity
|
|||
|
Working Temperature
|
-10℃ – +50℃
|
|||
|
Warranty
|
1 Years
|
|||
|
Voltage Range
|
12V
|
24V
|
48V
|
|
DC Voltage Range
|
10-15.5V
|
20-31V
|
40-61V
|
|
Low Voltage Alarm
|
10.5±0.5V
|
21±0.5V
|
42±1V
|
|
Low Voltage Shut Down
|
10±0.5V
|
20±0.5V
|
40±1V
|
|
Low Voltage Recovery
|
13±0.5V
|
24±0.5V
|
48±1V
|
|
Over Voltage Shut Down
|
15.5±0.5V
|
31±0.5V
|
61±1V
|
|
Over Voltage Recovery
|
14.8V±0.5V
|
29V±0.5V
|
59V±1V
|
|

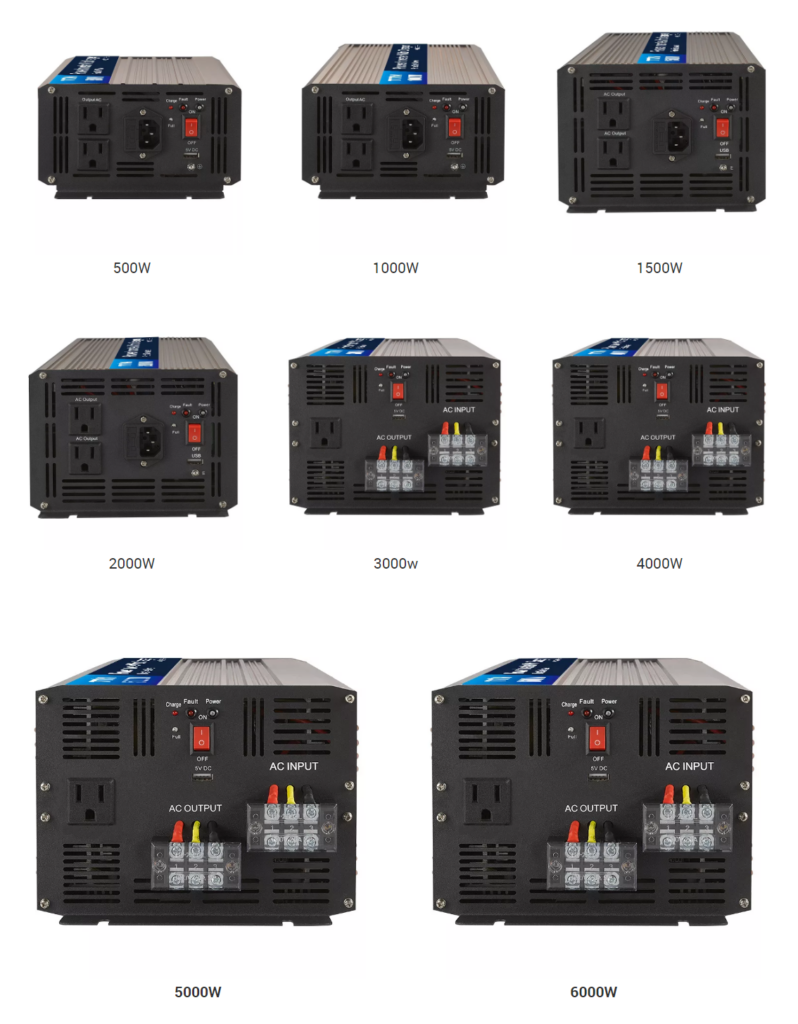

Model
|

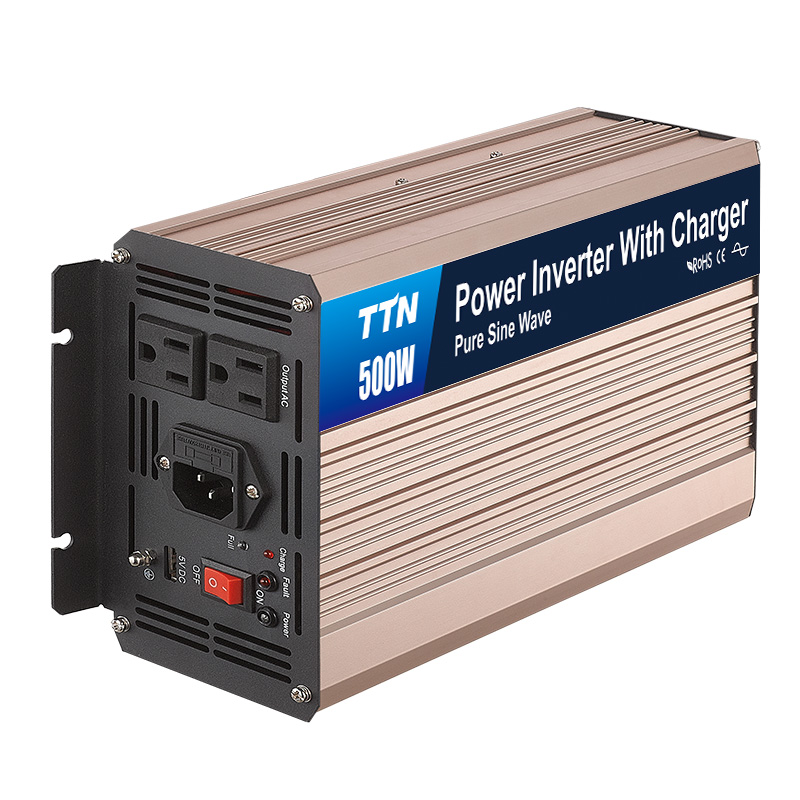

500W
|
1000W
|
1500W
|
2000W
|
|
Net Dimension
|
36.2*16.5*8.7cm (LxWxH)
|
43*16.5*8.7cm (LxWxH)
|
43*16.5*11.5cm(LxWxH)
|
43*16.5*11.5cm(LxWxH)
|
|
Inner Box Dimension
|
45.6*20.6*12.2cm(LxWxH)
|
45.6*20.6*12.2cm(LxWxH)
|
|
|
|
Meas/Ctn
|
52*47.5*38cm/4pcs
|
52*47.5*38cm/4pcs
|
49.5*21.5*20cm/1pcs
|
49.5*21.5*20cm/1pcs
|
|
N.W/Unit
|
4kg
|
5.5kg
|
7.5kg
|
7.5kg
|
|
G.W/Ctn
|
19KGS
|
25KGS
|
8KGS
|
8KGS
|
|
Packing
|
carton
|
Colour box
|
Colour box
|
Colour box
|
|
|
||||
|
Model
|

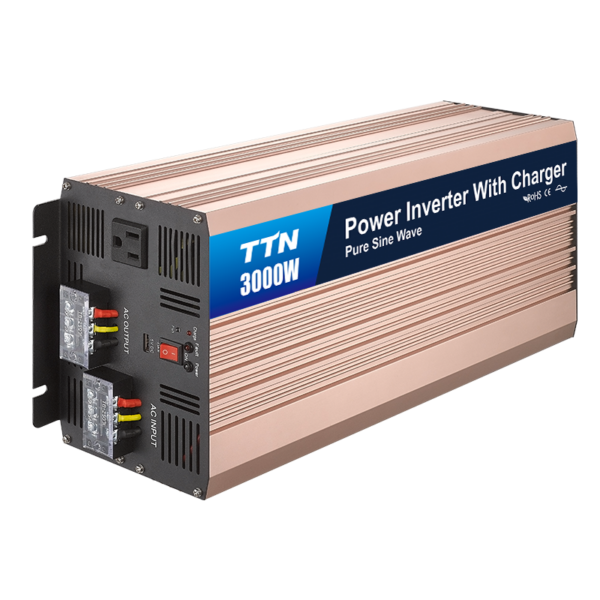

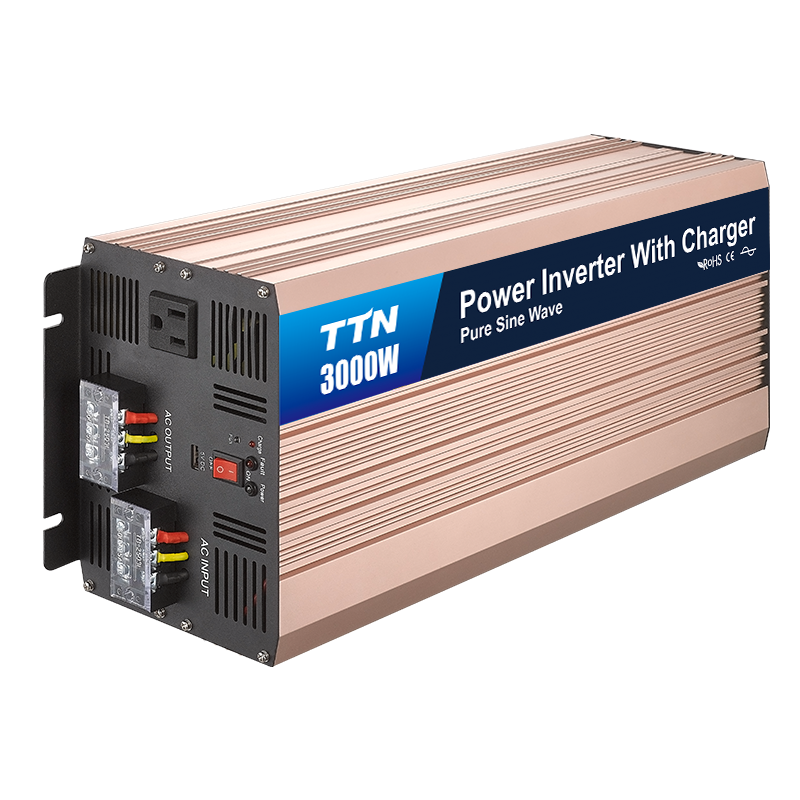

3000W
|
4000W
|
5000W
|
6000W
|
|
Net Dimension
|
46.5*21.6*15.6cm(LxWxH)
|
46.5*21.6*15.6cm(LxWxH)
|
51.5*21.6*15.6cm(LxWxH)
|
51.5*21.6*15.6cm(LxWxH)
|
|
Meas/Ctn
|
60*31.5*25cm/1pcs
|
65*31.5*25cm/1pcs
|
70*31.5*25cm/1pcs
|
70*31.5*25cm/1pcs
|
|
N.W/Unit
|
12kg
|
13kg
|
14kg
|
15kg
|
|
G.W/Ctn
|
13.5KGS
|
15KGS
|
16KGS
|
17KGS
|
|
Packing
|
carton
|
Honeycomb carton
|
Honeycomb carton
|
Honeycomb carton
|
