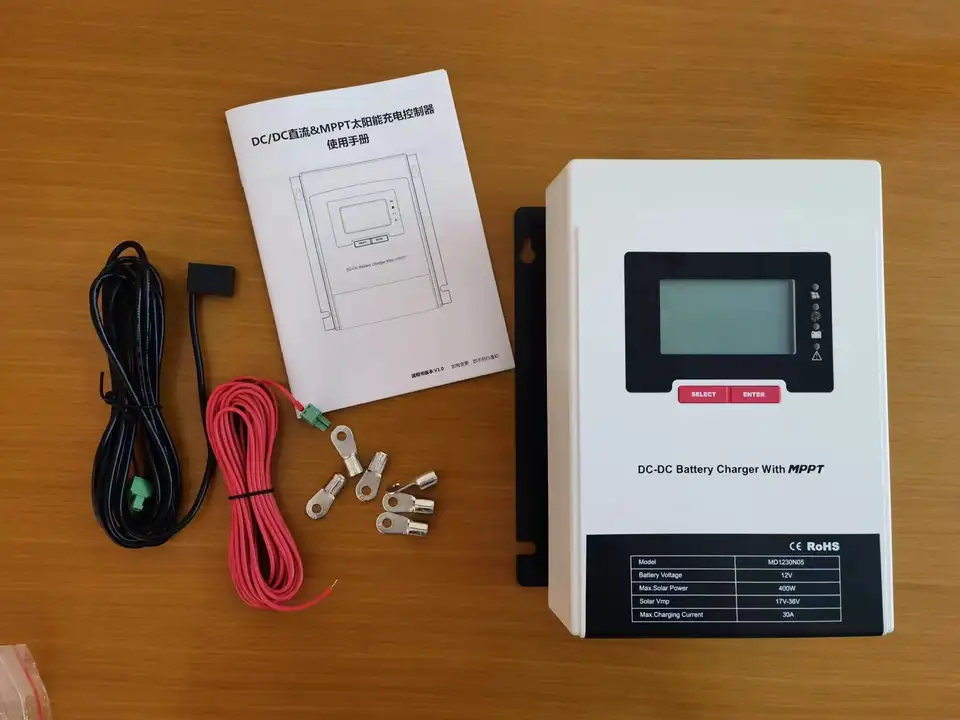

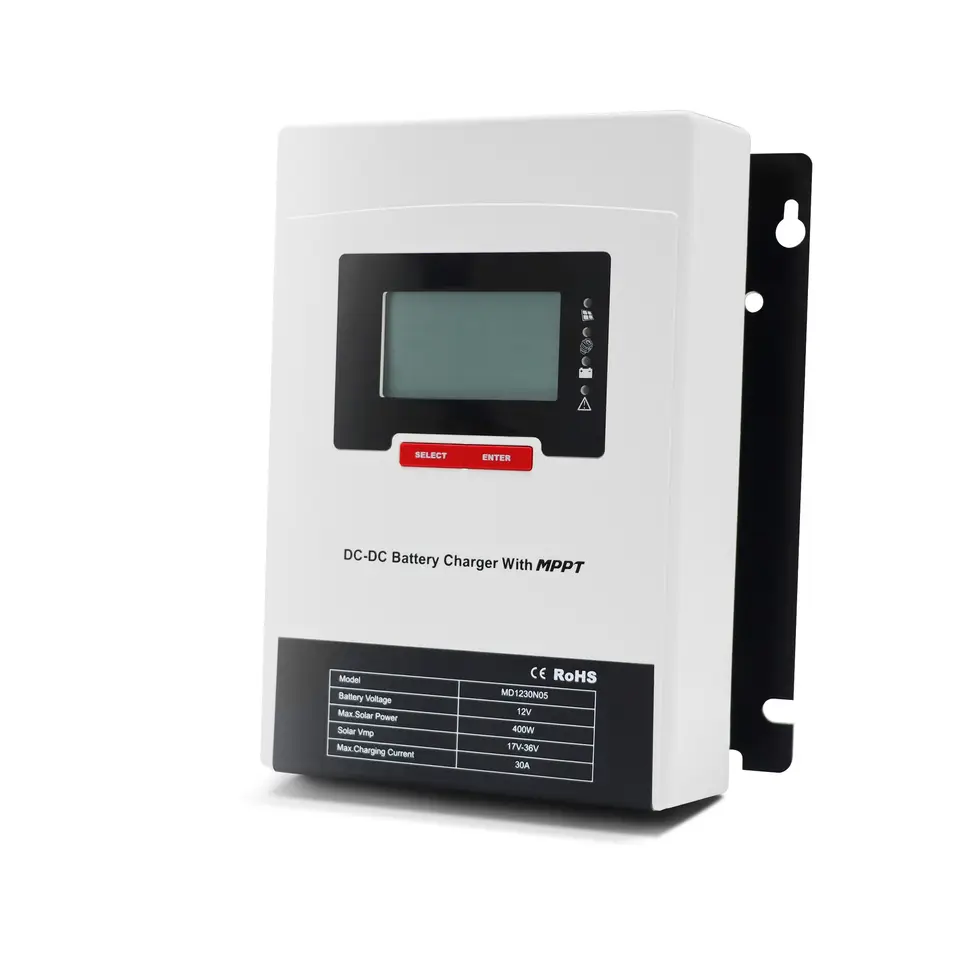

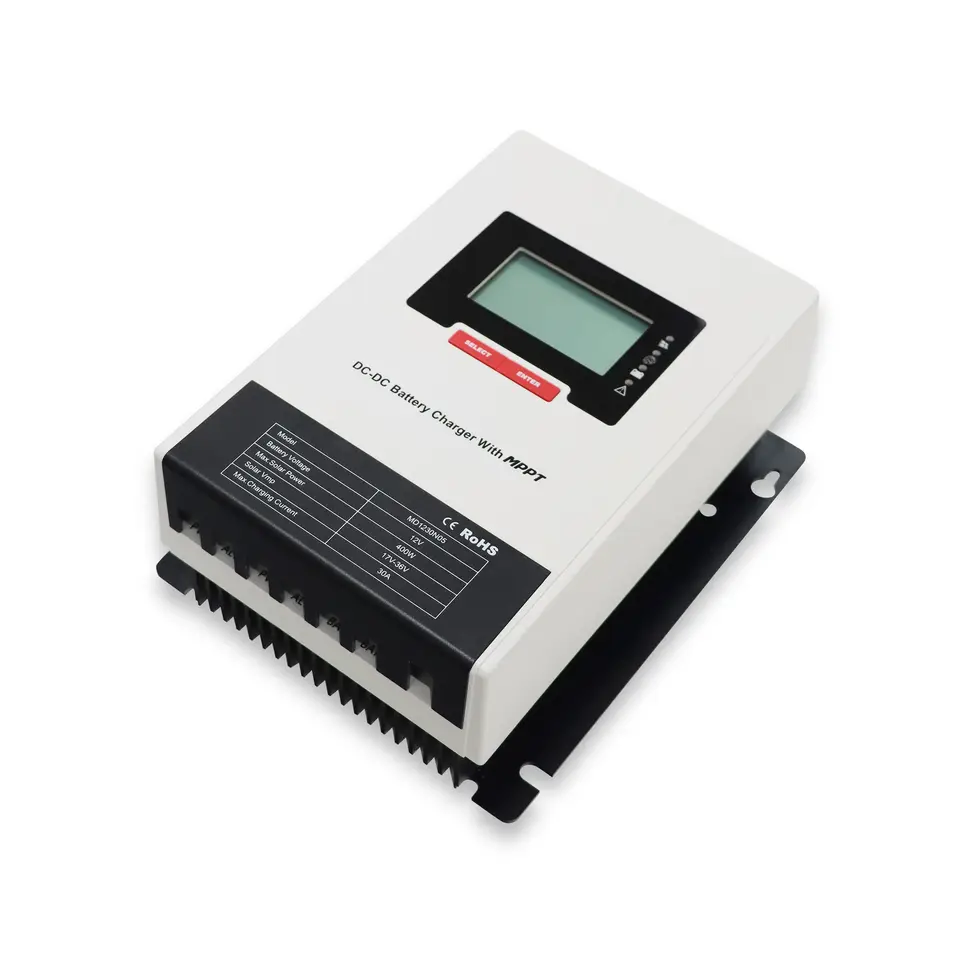

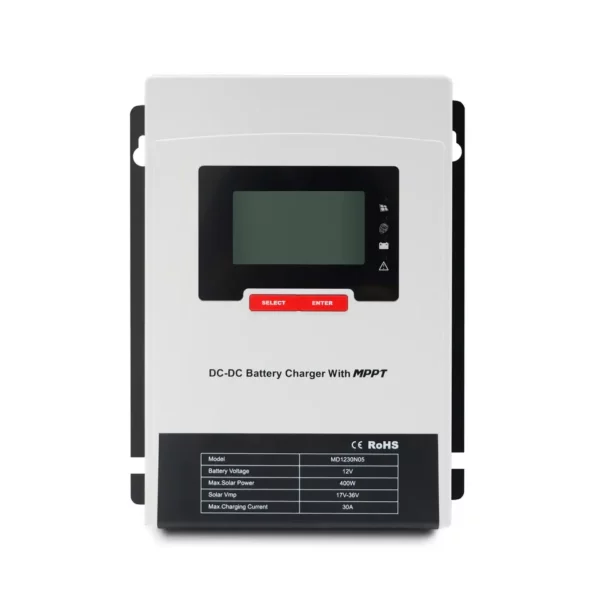

30A mppt DC to DC Solar Charge Controller For RV System 99% Efficiency off grid inverter 24v 48v

30A mppt DC to DC Solar Charge Controller For RV System 99% Efficiency off grid inverter 24v 48v

Additional information

System voltage

DC 12V

Product Information

TTN 30A Solar Charge Controller & Generator DC Charging Controller


• Power Catcher (30A Solar Charge Controller) maximum power point tracking technology allows the controller to track the maximum power point of solar panels even in a complex environment. Compared with the traditional 30 Amp Solar Charge Controller tracking technology, it boasts faster response speed and higher tracking efficiency.
• A built-in maximum power point tracking (MPPT) algorithm can significantly increase the energy utilization efficiency of the
a photovoltaic system, which is about 15% to 20% higher than traditional PWM charging.
• It provides an active charging voltage regulation feature. At battery open circuit or lithium battery BMS overcharge protection, the controller battery terminal will output the rated charging voltage value.
• MPPT tracking efficiency is up to 99.9%.
• Due to advanced digital power technology, the circuit energy conversion efficiency is as high as 98%.
• Available in multiple battery types and support charging procedures of various types of batteries such as lithium batteries,
colloidal battery, sealed battery, vented battery, lithium battery, etc.
• A current-limited charging mode is available. When the power of the solar panel is too large and the charging current is higher than the rated valve, the controller automatically reduces the charging power so that the solar panel can operate at the rated charging current.
• Support automatic identification of lead-acid battery voltage.
• External LCD screen or BT module can be connected for viewing of equipment operating data and status, and modification of 30 Amp Solar Charge Controller parameters is supported.
• Support standard Modbus protocol to meet communication needs on different occasions.
• Built-in over-temperature protection mechanism ensures that when the temperature exceeds the set value of the device, the charging
current decreases linearly with the temperature, thereby reducing the temperature rise of the controller and avoiding high-temperature damage.
• Temperature compensation and automatic adjustment of charge and discharge parameters help to improve battery life.
• Solar panel short circuit protection, battery open circuit protection and TVS lightning protection, etc.

30 Amp Solar Charge Controller
Backup Battery System Voltage
Backup Battery Voltage Range
9~16V DC
Backup Battery Type
Sealed Battery, Gel Battery, Vented Battery, Lithium Iron Phosphate Battery, User-defined Battery
Rated Charging Current
Maximum PV Input Voltage
55V DC
Max. power point voltage range
Maximum PV Input Current
Solar Panel Charging Mode
MPPT Efficiency
PV input power is recommended
Generator (Starter Battery) System Voltage
Starter Battery Type
Lead-acid Battery
Maximum Generator Input Voltage
32V DC
Maximum Generator Input Current
Generator Voltage Range
Conventional Generator
13.2~16V/26.4~32V DC
Intelligent (Euro 6 Standard) Generator
12~16V/24~32V DC
Generator charging mode
Buck , Boost , Buck-Boost
Generator output
power is recommended
12V Backup Battery
PV charges the starter battery
Charging Voltage
Charging Current
No-load loss
Maximum Charging Conversion Efficiency
Temperature compensation factor
-3mV/℃/2V(Default value, the value of lead-acid batterycanbeset);No temperaturecompensation function for lithium battery
Communication method
Protection Function
Overcharging Protection, Overcurrent Protection, Overtemperature Protection, Generator Reverse Connection Protection, Solar Panel
Reverse Connection Protection,Backup battery Reverse connection protection,Anti-reverse Charging Protection at night
Operating temperature
Waterproof level
Product dimensions
30 Amp Solar Charge Controller
