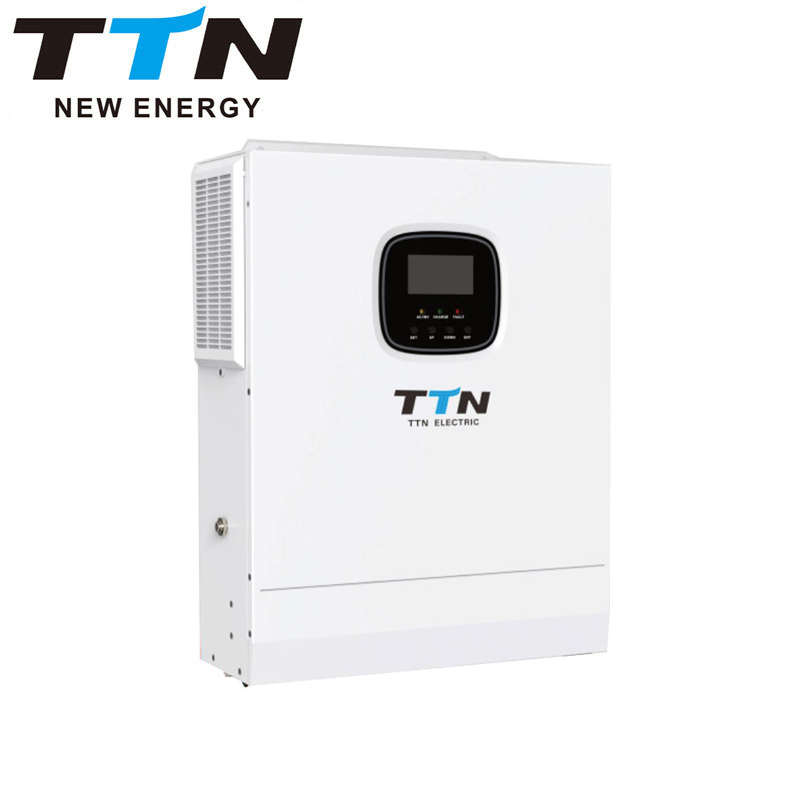

TTNergy US&EU solar charge inverter 5000A/7000A

TTNergy US&EU solar charge inverter 5000A/7000A

Additional information

Specification authentication

CE(IEC62109)、RoHs

EMC authentication grade

EN61000

Operation temperature range

-15°C to 55°C

Noise

<60dB

Thermal dissipation

Forced cooling with adjustable air speed

Communication interface

USB/RS485(WiFi/GPRS)/dry node control

Dimension(L*W*D)

426*322*126mm

Product Information

Performance Characteristics

● Full digital voltage and current double closed loop control, advanced SPWMtechnology, output of pure sine wave.
● Two output modes: mains bypass and inverter output; uninterrupted powersupply.
● Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains& Solar hybrid charging.
● Advanced MPPT technology with an efficiency of 99.9%
● With the charging requirement (voltage, current, mode) settings, and suitable forvarious types of energystorage batteries
● ON/OFF rocker switch for AC output control
● Power saving mode available to reduce no-load loss
● Intelligent variable speed fan to efficiently dissipate heat and extend system life
● Lithium battery activation design, allowing access of lead-acid battery andlithium battery.
● 360° all-round protection with a number of protection functions. Such asoverload,short circuit and overcurrent.
● Supply of a variety of user-friendly communication modules, such as Rs485(GPRS,WiFi), CAN, USB etc, and suitable for computer, mobile phones,Internetmonitoring as well as remote operations.

Model HAF4835U60-H HAF4850U80-H
AC mode
Rated input voltage 110/120Vac
Input voltage range (90Vac~140Vac)±2%
Frequency  50Hz/60Hz(auto-seing)
Frequency Range 47±0.3Hz~55±0.3Hz(50Hz)/57±0.3Hz~65±0.3Hz(60Hz);
Overload/short circuit protection Breaker
Efficiency 95%
Conversion time (bypass and inverter) 10ms (Typical value)
AC reverse protection Available
Maximum bypass overload current 63A
Inverting mode
Output voltage waveform Pure sine wave
Rated output power (VA) 3500(2900/3000/3200) 5000(4100/4300/4500)
Rated output power(W) 3500(2900/3000/3200) 5000(4100/4300/4500)
Power factor 1
Rated output voltage (Vac) 120Vac(100/105/110Vac settable)
Dutput voltage error    ±5%
Output frequency range (Hz) 50Hz±0.3Hz/60Hz±0.3Hz
Efficiency >90%
Peak power 5000A 7000A
Loaded motor capacity 2HP 3HP
Output short-circuit protection Breaker
pecification of bypass breaker 63A
Rated battery input voltage  48V (minimum start voltage 44V)
Battery voltage range    40.0Vdc-60Vdc ± 0.6Vdc (undervotage alam/turmoff voltage/overvoltage alarm/overvoltage restoration…settable LCD screen)
Power saving mode Load ≤50W
AC charge
Battery type Lead acid or lithium batter
Maximum charge current 40A
Charge current error ±5Adc
Charge voltage range 40Vdc~60Vdc
Short-circuit protectior Breaker and blown fuse
Breaker specification 63A
Overcharge protection  Turn off charge after 1min alarm
Solar charge
Maximum PV opencircuit voltage 450Vdc 500Vdc
PV operation voltage range 120-450Vdc 120-500Vdc
MPPT voltage range 120-430Vdc 120-450Vdc
Battery voltage range 40-60Vd
Maximum output power 4200V 5000V
Charge current range of solar energy (settable) 0-60A 0-80A
Charge short-circuit protection Blown fuse
Wiring protection Inverse wiring protection
Authentication specification
Specification authentication CE(IEC62109)、RoH
MC authentication grade EN61000
Operation temperature range -15℃ to 55℃
Storage temperature range -25℃~60℃
Humidity range 5% to 95%(Conformal coating protection)
Noise  ≤60dB
hermal dissipation Forced cooling with adjustable air speed
Communication interface USB/RS485(WiFi/GPRS)/dry node control
Dimension (L*W*D) 426*322*126mm
Weight (kg) 11.6

Application scenarios

Product connection diagram











Product characteristics
