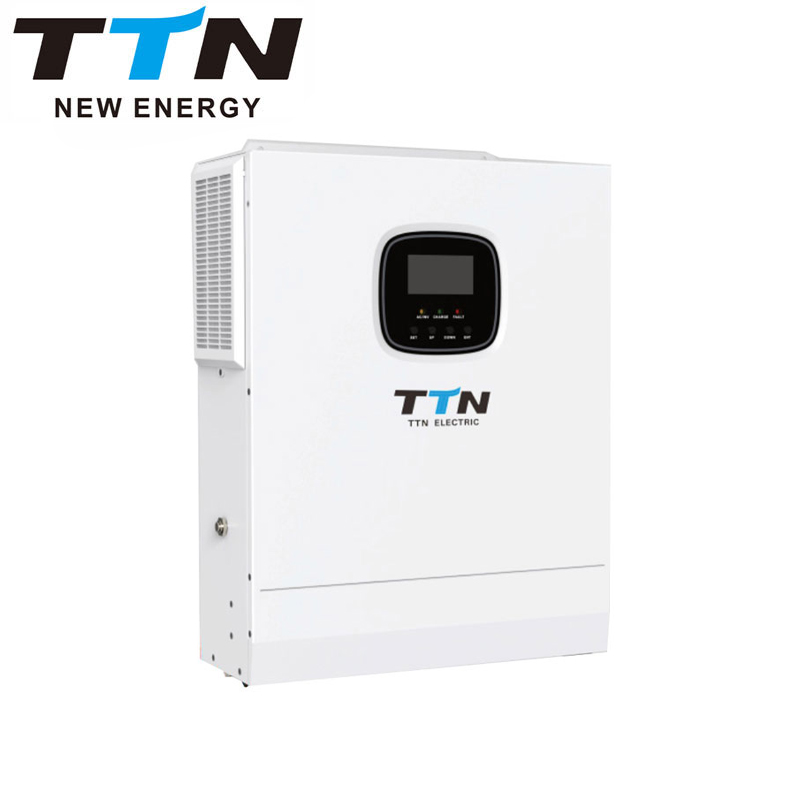

TTNergy US&EU solar charge inverter 6000A/10000A

Additional information

Specification authentication	CE(IEC62109)、RoHs
EMC authentication grade	EN61000
Operation temperature range	-15°C to 55°C
Noise	<60dB
Thermal dissipation	Forced cooling with adjustable air speed
Communication interface	USB/RS485(WiFi/GPRS)/dry node control
Dimension(LWD)	426322126mm

Product Information

Performance Characteristics

● Full digital voltage and current double closed loop control, advanced SPWMtechnology, output of pure sine wave.
● Two output modes: mains bypass and inverter output; uninterrupted powersupply.
● Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains& Solar hybrid charging.
● Advanced MPPT technology with an efficiency of 99.9%
● With the charging requirement (voltage, current, mode) settings, and suitable forvarious types of energystorage batteries
● ON/OFF rocker switch for AC output control
● Power saving mode available to reduce no-load loss
● Intelligent variable speed fan to efficiently dissipate heat and extend system life
● Lithium battery activation design, allowing access of lead-acid battery andlithium battery.
● 360° all-round protection with a number of protection functions. Such asoverload,short circuit and overcurrent.
● Supply of a variety of user-friendly communication modules, such as Rs485(GPRS,WiFi), CAN, USB etc, and suitable for computer, mobile phones,Internetmonitoring as well as remote operations.

Model	HAF4830S60-H	HAF4850S80-H
AC mode
Rated input voltage	220/230Vac
Input voltage range	170Vac~280Vac)±2%;(90Vac-280Vac)±2%
Frequency	50Hz/60Hz(auto-seing)
Frequency Range	47±0.3Hz~55±0.3Hz(50Hz)/57±0.3Hz~65±0.3Hz(60Hz);
Overload/short circuit protection	Breaker
Efficiency	95%
Conversion time (bypass and inverter)	10ms (Typical value)
AC reverse protection	Available
Maximum bypass overload current	40A
Inverting mode
Output voltage waveform	Pure sine wave
Rated output power (VA)	3000(2600/2700/3000)	5000(4350/4500/4800/5000)
Rated output power(W)	3000(2600/2700/3000)	5000(4350/4500/4800/5000)
Power factor	1
Rated output voltage (Vac)	230Vac (200/208/220/240Vac settable)
Dutput voltage error	±5%
Output frequency range (Hz)	50Hz±0.3Hz/60Hz±0.3Hz
Efficiency	>90%
Peak power	6000A	10000A
Loaded motor capacity	2HP	4HP
Output short-circuit protection	Breaker
pecification of bypass breaker	40A
Rated battery input voltage	48V (minimum start voltage 44V)
Battery voltage range	40.0Vdc-60Vdc ± 0.6Vdc (undervotage alam/turmoff voltage/overvoltage alarm/overvoltage restoration…settable LCD screen)
Power saving mode	Load ≤50W
AC charge
Battery type	Lead acid or lithium batter
Maximum charge current	60A
Charge current error	±5Adc
Charge voltage range	40Vdc~60Vdc
Short-circuit protectior	Breaker and blown fuse
Breaker specification	40A
Overcharge protection	Turn off charge after 1min alarm
Solar charge
Maximum PV opencircuit voltage	500Vdc
PV operation voltage range	120-500Vdc
MPPT voltage range	120-450Vdc
Battery voltage range	40-60Vd
Maximum output power	4200V	5000V
Charge current range of solar energy (settable)	0-60A	0-80A
Charge short-circuit protection	Blown fuse
Wiring protection	Inverse wiring protection
Authentication specification
Specification authentication	CE(IEC62109)、RoH
MC authentication grade	EN61000
Operation temperature range	-15℃ to 55℃
Storage temperature range	-25℃~60℃
Humidity range	5% to 95%(Conformal coating protection)
Noise	≤60dB
hermal dissipation	Forced cooling with adjustable air speed
Communication interface	USB/RS485(WiFi/GPRS)/dry node control
Dimension (LWD)	426322126mm
Weight (kg)	10.9

TTNergy US&EU solar charge inverter 6000A/10000A
