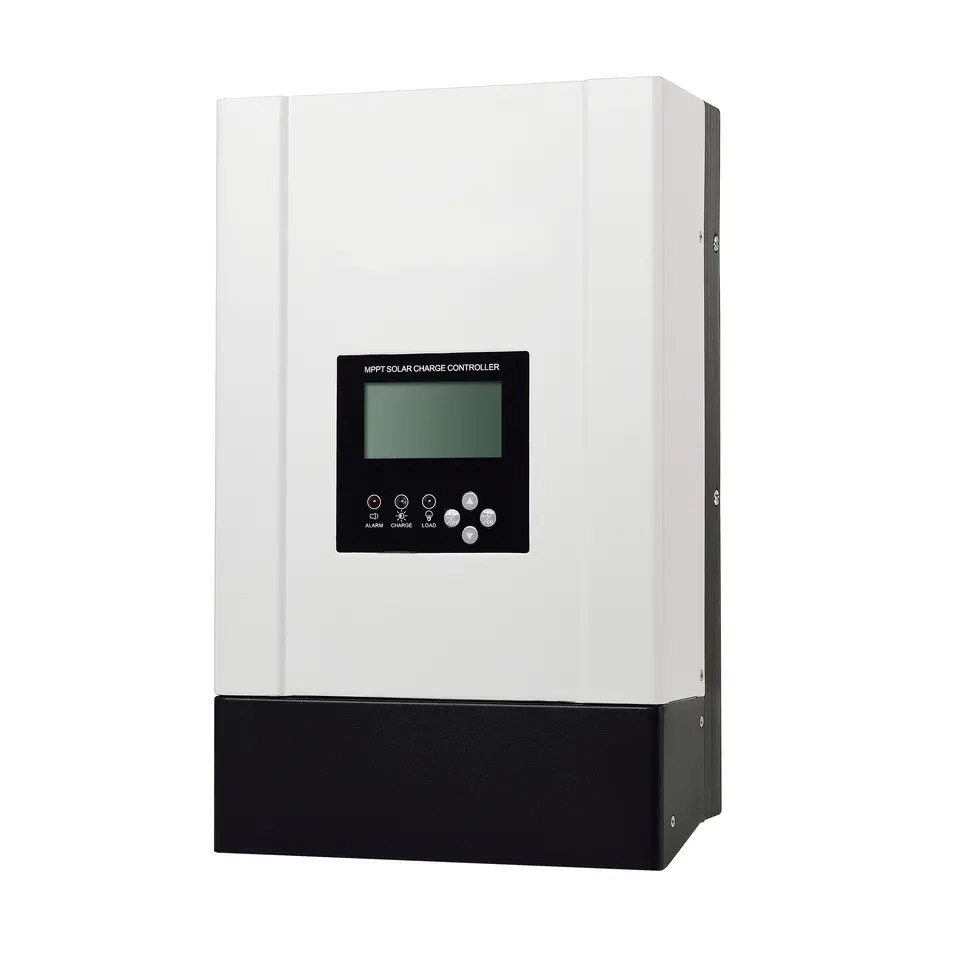

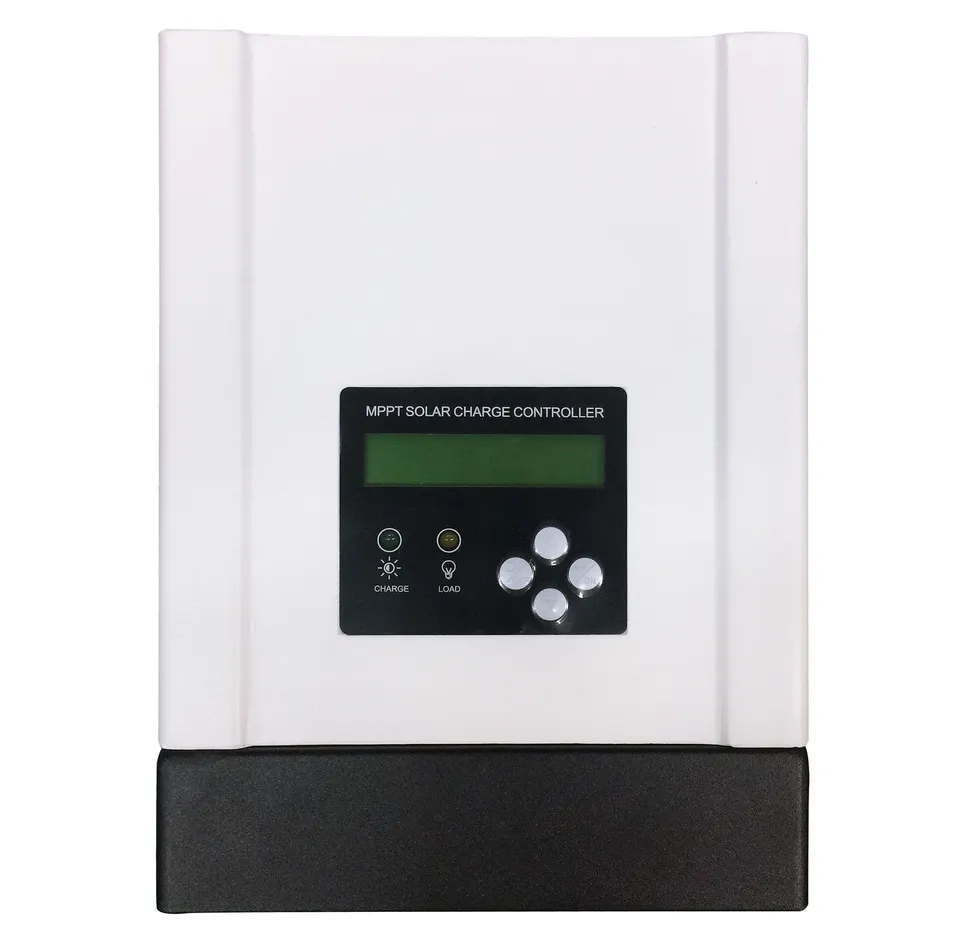

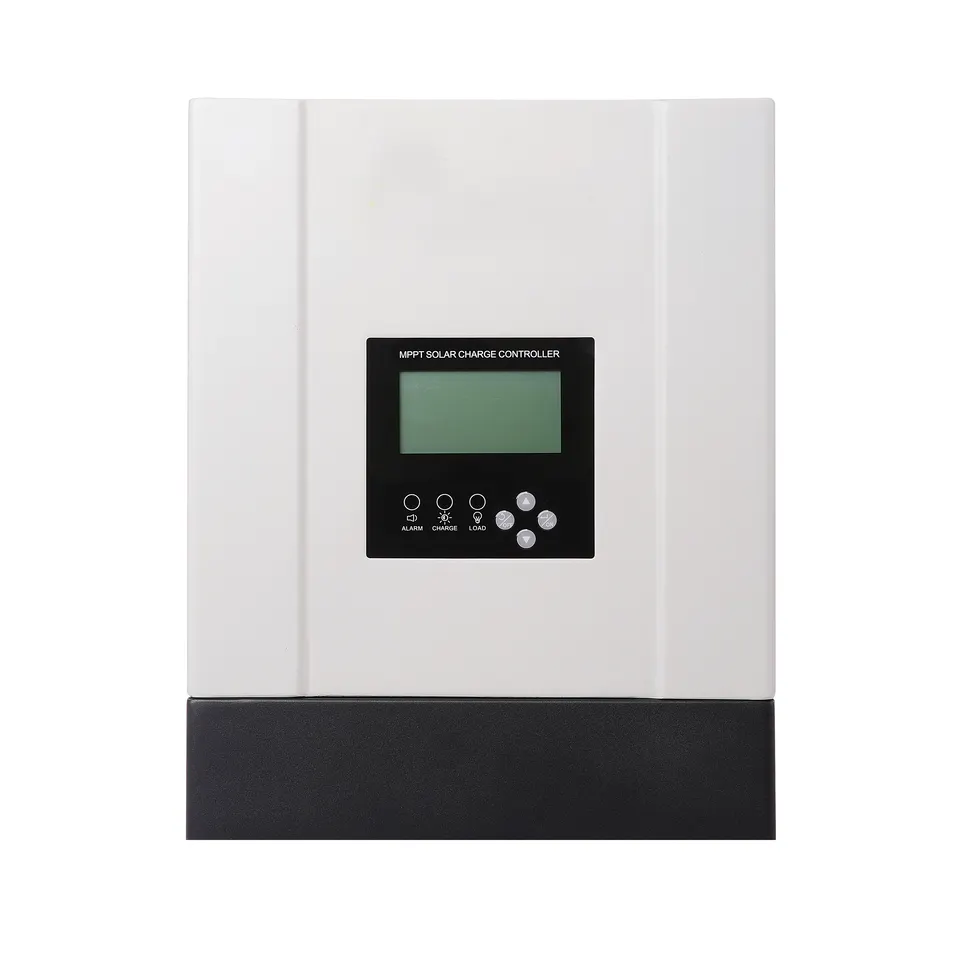

| Application | Charger Controller |
|---|---|
| Max PV Power | 5400w |
| Type | MPPT |
| Work Time (h) | 24 |
| Model | SCH-30A | SCH-40A | SCH-50A | SCH-60A | SCH-70A | SCH-80A | SCH-90A | SCH-100A |
| Solar System Voltage | 12V/24V/36V/48V Auto work | |||||||
| Electrical | ||||||||
| PV Operating Voltage | 18~150Vdc@12V 35~150Vdc@24V 50~150Vdc@36V 60~150Vdc@48V | |||||||
| Max. PV input power | 12V 400W | 12V 600W | 12V 700W | 12V 900W | 12V 1000W | 12V 1200W | 12V 1300W | 12V 1400W |
| 24V 800W | 24V 1200W | 24V 1400W | 24V 1800W | 24V 2000W | 24V 2300W | 24V 2600W | 24V 2800W | |
| 36V 1300W | 36V 1700W | 36V 2200W | 36V 2600W | 36V 3000W | 36V 3300W | 36V 3800W | 36V 4200W | |
| 48V1700W | 48V 2300W | 48V 2900W | 48V 3400W | 48V 4000W | 48V 4600W | 48V 5000W | 48V 5400W | |
| Rated Output Current | 30A | 40A | 50A | 60A | 70A | 80A | 90A | 100A |
| Rated DC load Current | 40A | 60A | ||||||
| Self consumption | <2W | <3W | ||||||
| Max.Conversion Efficiency | 97.50% | 98.50% | ||||||
| Protection | PV array short circuit, over charging,battery reverse polarity,output short circuit | |||||||
| Battery charging | ||||||||
| Battery Type | Sealed Gel AGM Flooded Lithium | |||||||
| Charge algorithm | 3 stage: Bulk, Absorption, Float charging | 4 stage: Bulk, Absorption, Float, Equalize charging | ||||||
| Bulk charge voltage | Sealed: 14.4V AGM 14.2V Gel:14.2V Flooded:14.6V User defined:10-15V | |||||||
| Float charge voltage | Sealed/Gel/AGM:13.8V Flooded:13.7V User defined:10-15V | |||||||
| Equalize charge voltage | N/A | Sealed 14.6V AGM:14.8V Flooded:14.9V | ||||||
| Load disconnect voltage | 10.5V~12V adjustable | |||||||
| Low voltage reconnect voltage | 12.5V | |||||||
| Temperature compensation | 5mV/℃/2V with BTS | |||||||
| Communication | ||||||||
| Communication Port | RS485 with On line monitoring system | |||||||
| Physical | ||||||||
| Net weight | 3.3kg | 6.5kg | 7.8kg | 9 kg | ||||
| Gross weight | 4.0kg | 7.3kg | 8.7kg | 10 Kg | ||||
| Dimension | 220*170*90MM | 310*230*110MM | 370*230*110MM | 405*230*110MM | ||||

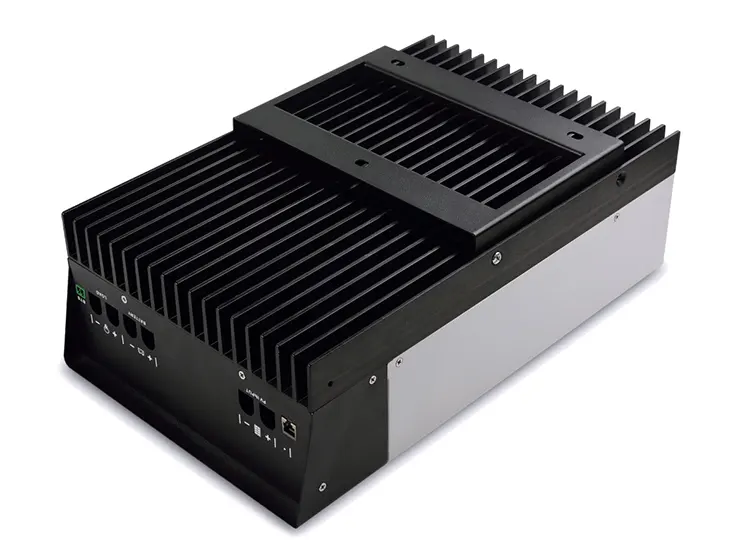

| Cooling | Heatsink cooling | |||||||
| Enclosure | IP45 | |||||||
| Environment | ||||||||
| Ambient operating temperature | -25℃~60℃ | |||||||
| Storage Temperature | -40℃~80℃ | |||||||
| Humidity | 5%-95% non-condensing | |||||||
| Warranty | Two years | |||||||
