| LCD | Can display operating mode/load/input/output |
|---|---|
| RS232 | 5PIN/Pitch 2.54mm, Baud Rate 2400 |
| Expansion Slot CommunicationInterface | Lithium Battery BMS Communication Card,WIFI |
| Parallel Interface | -10°C-50°C/ -15-60°C |
| Ork Altitude | No more than 1000m, If 1000m,Rate power will lower, MAX 4000m, Refer |
· Lithium Battery Auto-restart Function, More Convenient forLithium Battery Charging
· Display can be designed with a touch screen panel
· Utility Charging Voltage/PV Charging Voltage Adjustable, Match Different Battery Charging Requirements
· Support CT anti-back flow function, automatically detect thegrid status, and ensure that no poweris reversed to the grid
· PF1.0, High Efficiency, Lower Consumption, Energy Conservation/Environmental Protection/Electricity Saving / Cost Saving
· Allowing PV Power Generation To Be Fed Into The Grid, SavingElectricity Bills
· Communication Option: External WIFI, Supervise at Any Time
· BMS function for lithium battery

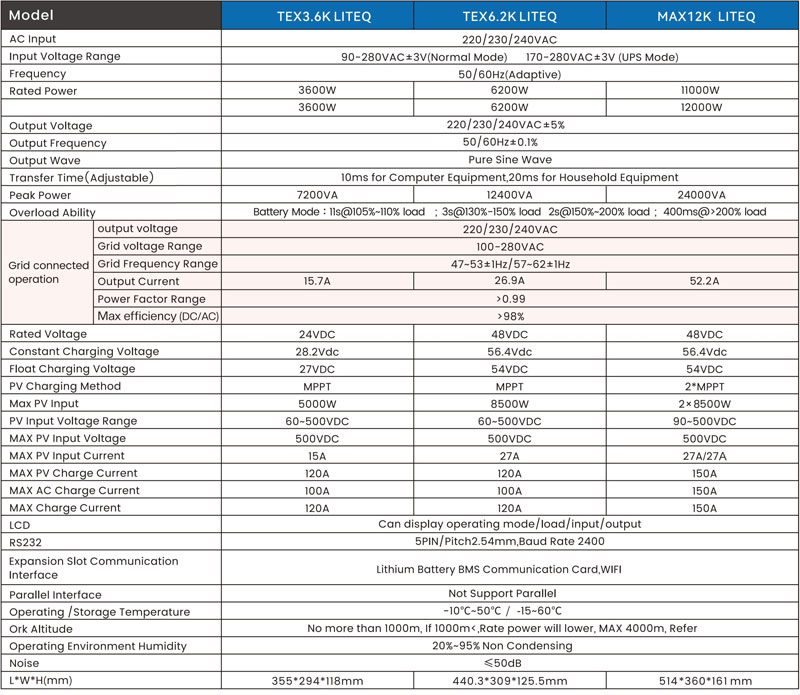

| Model | TEX3.6K LITEQ | TEX6.2K LITEQ | MAX12K LITEQ | |
| AC Input | 220/230/240VAC | |||
| Input Voltage Range | 90-280VAC±3V(Normal Mode) 170-280VAC±3V (UPS Mode) |
|||
| Frequency | 50/60Hz(Adaptive) | |||
| Rated Power | 3600W | 6200W | 11000W | |
| Rated Power | 3600W | 6200W | 12000W | |
| Output Voltage | 220/230/240VAC±5% | |||
| Output Frequency | 50/60Hz±0.1% | |||
| Output Wave | Pure Sine Wave | |||
| Transfer Time(Adjustable) | 10ms for Computer Equipment,20ms for Household Equipment | |||
| Peak Power | 7200VA | 12400VA | 24000VA | |
| Overload Ability | Battery Mode: 11s@105%-110% load ; 3s@130%-150% load ; 2s@150%-200% load ; 400ms@>200% load |
|||
| Grid connected operation | Output voltage | 220/230/240VAC | ||
| Grid voltage Range | 100-280VAC | |||
| Grid Frequency Range | 47-53±1Hz/ 57-62±1Hz | |||
| Output Current | 15.7A | 26.9A | 52.2A | |
| Power Factor Range | >0.99 | |||
| Max efficiency (DC/AC) | >98% | |||
| Rated Voltage | 24VDC | 48VDC | 48VDC | |
| Constant Charging Voltage | 28.2Vdc | 56.4Vdc | 56.4Vdc | |
| Float Charging Voltage | 27VDC | 54VDC | 54VDC | |
| PV Charging Method | MPPT | MPPT | 2*MPPT | |
| Max PV Input | 5000W | 8500W | 2×8500W | |
| PV Input Voltage Range | 60-500VDC | 60-500VDC | 90-500VDC | |
| MAX PV Input Voltage | 500VDC | 500VDC | 500VDC | |
| MAX PV Input Current | 15A | 27A | 27A/27A | |
| MAX PV Charge Current | 120A | 120A | 150A | |
| MAX AC Charge Current | 100A | 100A | 150A | |
| MAX Charge Current | 120A | 120A | 150A | |
| LCD | Can display operating mode / load / input / output | |||
| RS232 | 5 PIN / Pitch2.54mm, Baud Rate 2400 | |||
| Expansion Slot Communication Interface | Lithium Battery BMS Communication Card, WIFI | |||
| Parallel Interface | Not Support Parallel | |||
| Operating /Storage Temperature | -10℃-50℃ / -15-60℃ | |||
| Ork Altitude | No more than 1000m, If 1000m-,Rate power will lower, MAX 4000m, Refer | |||
| Operating Environment Humidity | 20%~95% Non Condensing | |||
| Noise | ≤50dB | |||
| LWH (mm) | 355*294*118mm | 440.3*309*125.5mm | 514*360*161mm | |
