TTNergy Solar Energy Storage Lithium Ion Battery 15kWh 48V 300Ah LiFePO4 Battery Pack For 5KW 10KW Inverter Power System
TTNergy Solar Energy Storage Lithium Ion Battery 15kWh 48V 300Ah LiFePO4 Battery Pack For 5KW 10KW Inverter Power System
Additional information
| Voltage | 48V |
|---|---|
| Capacity | 50Ah, 75Ah,100ah,200ah,300ah,400ah |
| Application | UPS,Solar, Home, Solar Energy Storage Systems,Power Supplies |

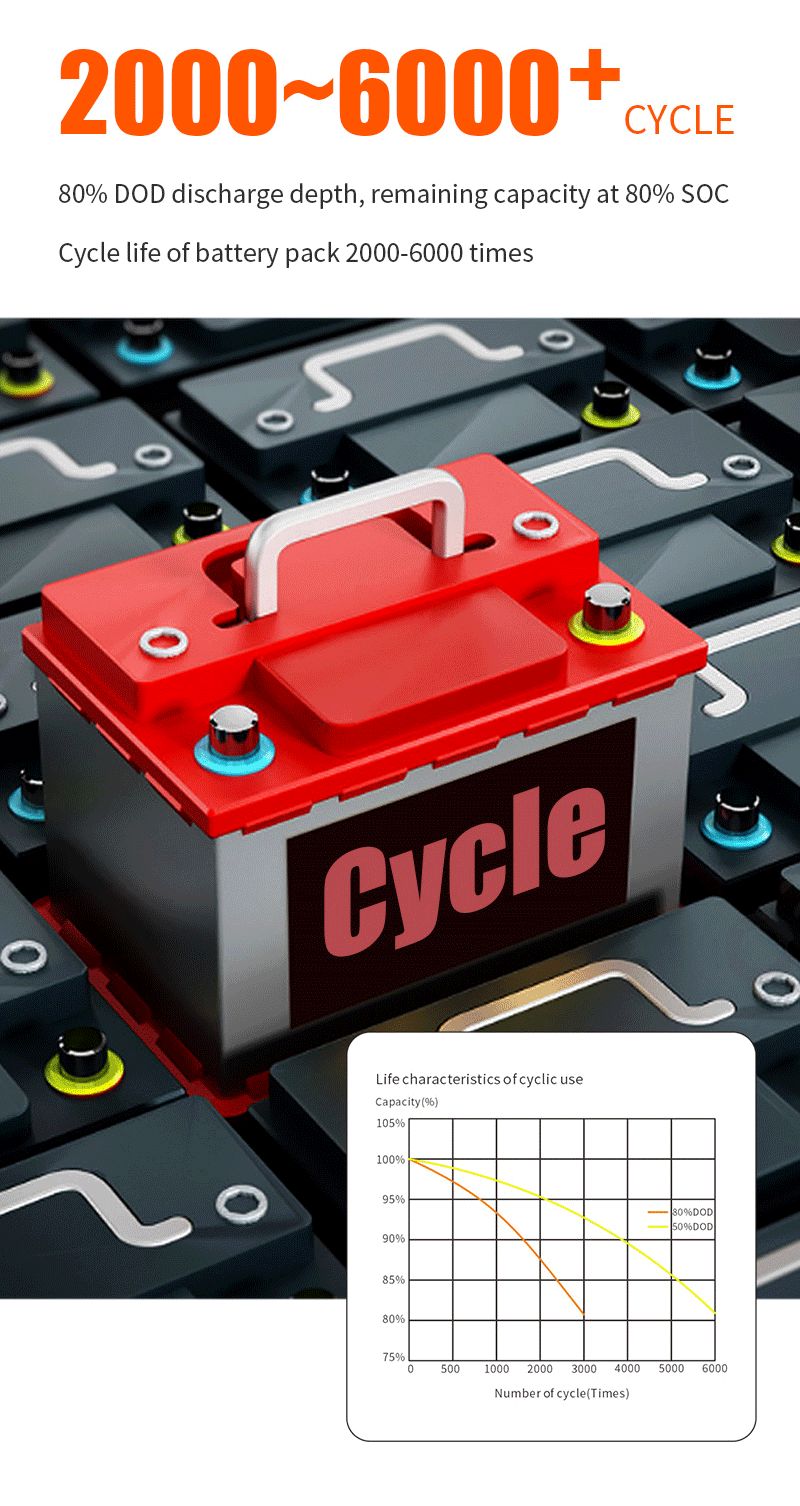

| Cycles | 6000 times |
| Communication | CAN/RS485/DRY CONTACT |
| Protection Level | IP20 |
| Warranty | 10 Years, 5years |
Leave your information to get the lowest quotation on the Internet
Product Information

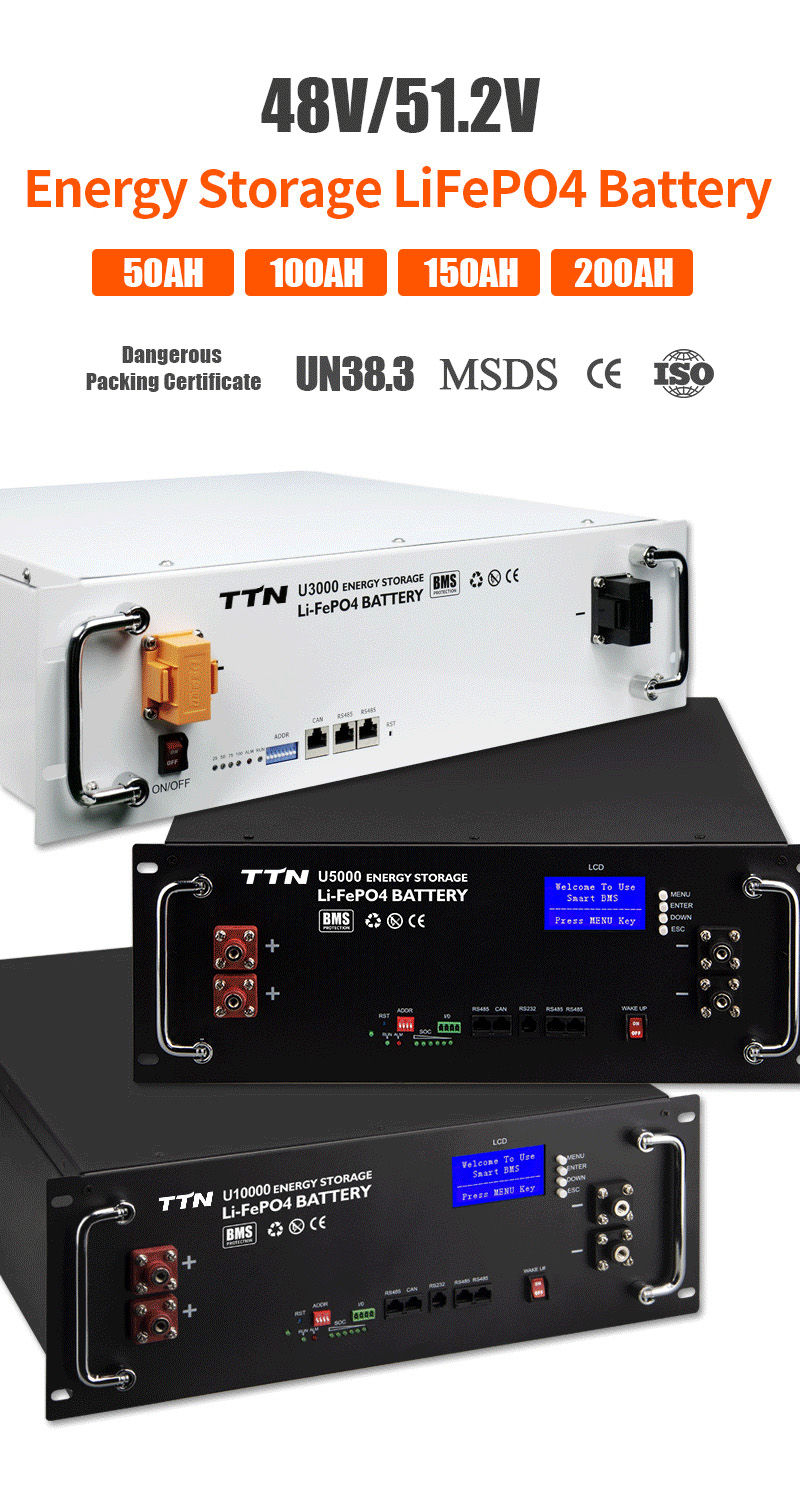

TTNergy Rack Model Lithium LiFePO4 Battery
TTN lithium energy storage battery uses a long working life LiFePO4 battery, and high-performance BMS to protect and manage the battery system, it has wider usage and longer life than a traditional battery.
TTN-U3000/5000/10000
LiFePO4 Battery features:
※ High power, friendly interface, free combination
※ High-quality battery cell, the precise combination
※ CAN/RS485/WIFI/4G/Blue tooth communication
※ BMS customization supported
※ Thick shell, well protection for inside cells
Application area:
※Energy storage system, control system, alarm system, power system, database
※Emergency lighting system, emergency power supply, UPS
※ Telecommunication, communication, firefighting system
BMS Protection:
※Over Current
※Short Circuit
※Over Voltage
※High Temperature
※Low Voltage
|
Model
|

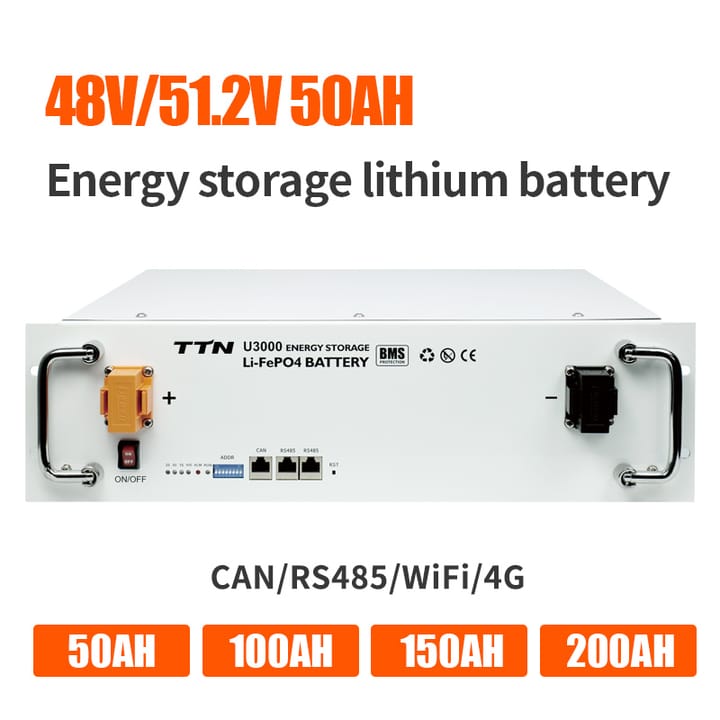

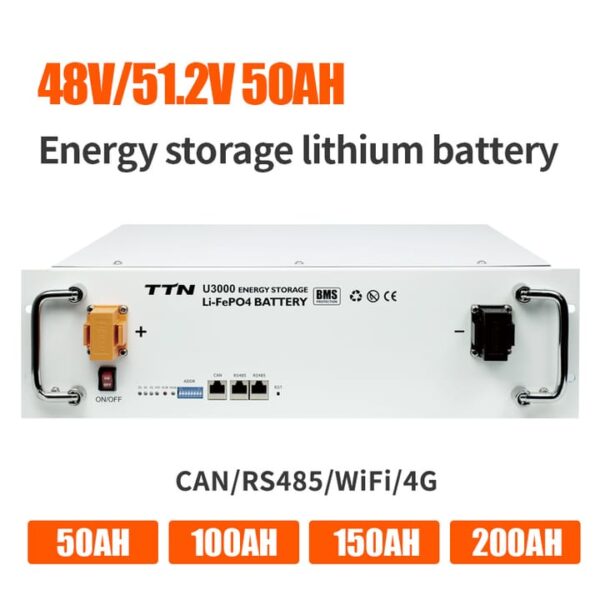

U3000 48V/51.2V
|
U5000 48V/51.2V
|
U8000 48V/51.2V
|

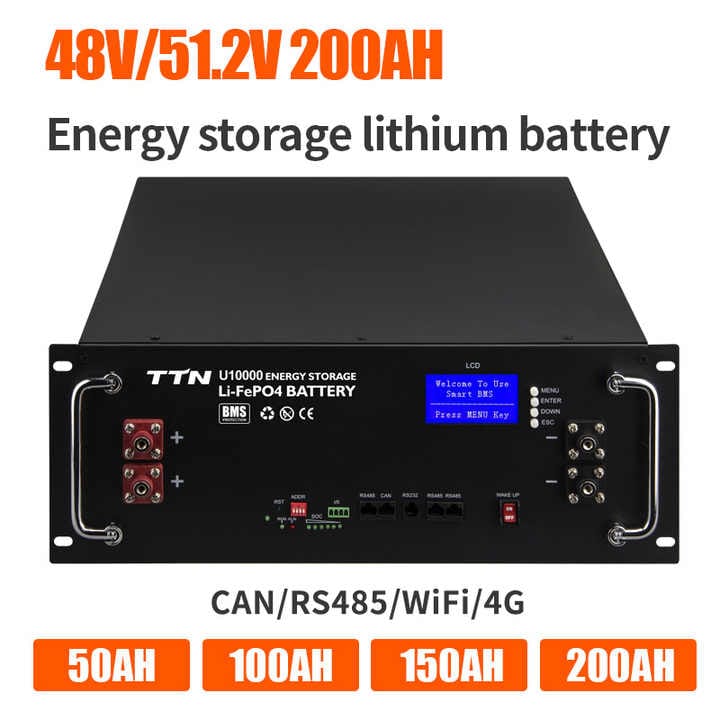

U10000 48V/51.2V
|
|
Capacity
|
2.4KWH/2.56KWH
|
4.8KWH/5.12KWH
|
7.2KWH/7.68KWH
|
9.6KWH/10.24KWH
|
|
Standard Discharging Current
|
25A
|
50A
|
50A
|
50A
|
|
Max Discharging Current
|
50A
|
100A
|
100A
|
100A
|
|
Working Voltage
|
40.5-54VDC/43.2-57.6VDC
|
40.5-54VDC/43.2-57.6VDC
|
40.5-54VDC/43.2-57.6VDC
|
40.5-54VDC/43.2-57.6VDC
|
|
Standard Voltage
|
48VDC/51.2VDC
|
48VDC/51.2VDC
|
48VDC/51.2VDC
|
48VDC/51.2VDC
|
|
Max Charging Current
|
25A
|
50A
|
75A
|
100A
|
|
Max Charging Voltage
|
54V/57.6V
|
54V/57.6V
|
54V/57.6V
|
54V/57.6V
|
|
Suggested DOD Model
|
90%
|
|||
|
Humidity
|
20-60%
|
|||
|
Installation
|

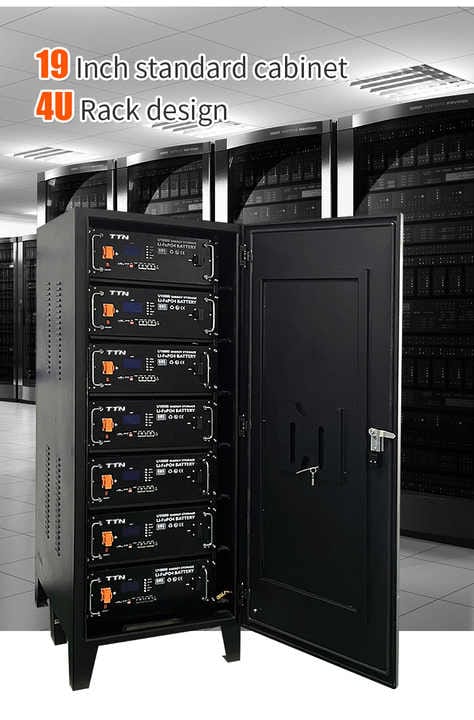

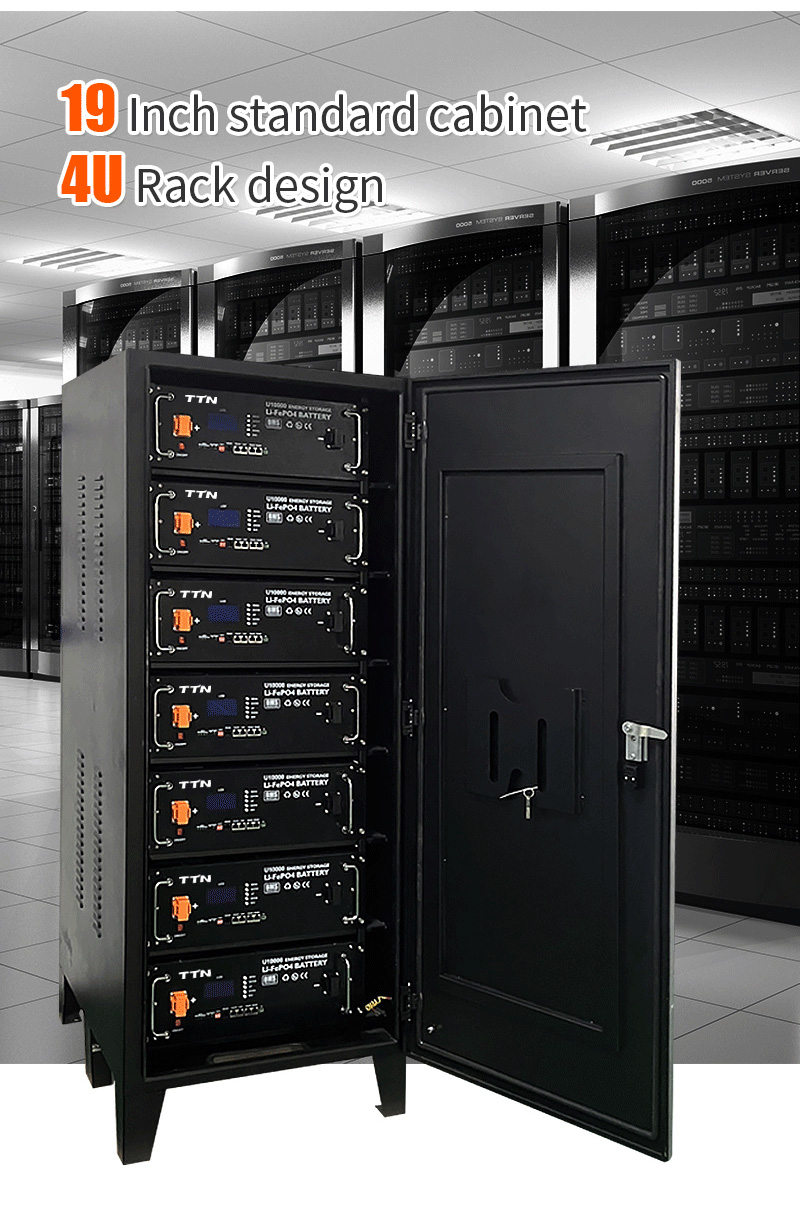

Rack mounted or cabinet
|
|||
|
IP Rating
|
IP20
|
|||
|

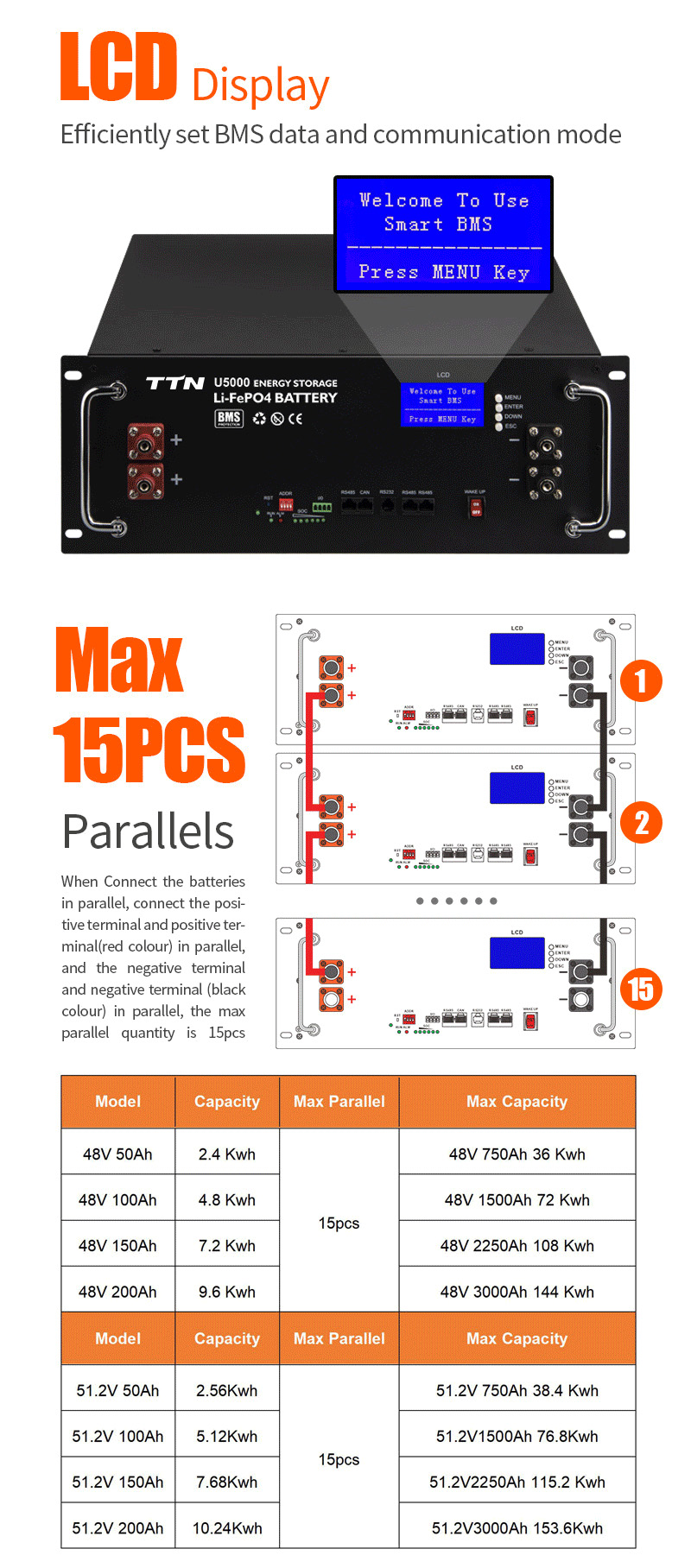

Max Number Of Parrallel
|
16
|
|||
|
Warranty
|
5 Years
|
|||
|
Communication
|
CAN/RS485/RS232(WiFi/bluetooth/4G optional)
|
|||
|
Product Size
|
410*484*122mm
|
410*484*178mm
|
590*484*178mm
|
590*484*178mm
|
|

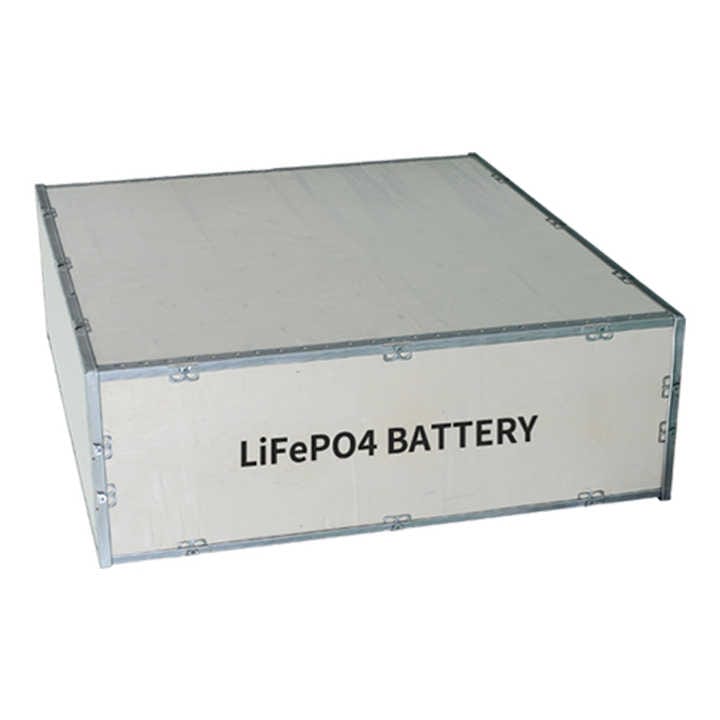

Packing Size
|
510*567*165mm
|
540*510*270mm
|
730*544*270mm
|
730*544*270mm
|
|
Net Weight
|
24.5kg/26.5kg
|
39.5kg/41.5kg
|
55kg/58kg
|
70.5kg/72.5kg
|
|
Gross Weight
|
27.05kg/29.05kg
|
45.5kg/47.5kg
|
62kg/65kg
|
78.5kg/80.5kg
|
