| Battery type | LiFePO4 |
|---|---|
| Rated capacity | 100Ah |
| Max. power | 38KW |
| Rated power | 30KW |

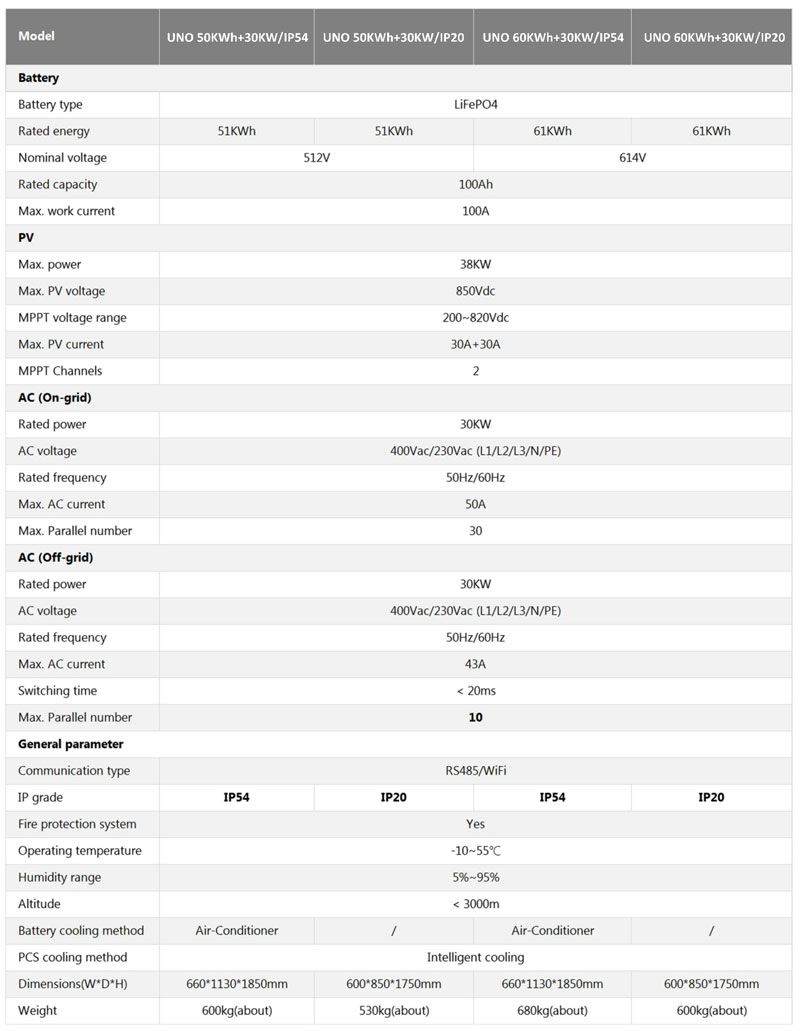

| Model | UNO 50KWh+30KW/IP54 | UNO 50KWh+30KW/IP20 | UNO 60KWh+30KW/IP54 | UNO 60KWh+30KW/IP20 |
| Battery | ||||
| Battery type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
| Rated energy | 51KWh | 51KWh | 61KWh | 61KWh |
| Nominal voltage | 512V | 512V | 614V | 614V |
| Rated capacity | 100Ah | 100Ah | 100Ah | 100Ah |
| Max. work current | 100A | 100A | 100A | 100A |
| PV | ||||
| Max. power | 38KW | 38KW | 38KW | 38KW |
| Max. PV voltage | 850Vdc | 850Vdc | 850Vdc | 850Vdc |
| MPPT voltage range | 200~820Vdc | 200~820Vdc | 200~820Vdc | 200~820Vdc |
| Max. PV current | 30A+30A | 30A+30A | 30A+30A | 30A+30A |
| MPPT Channels | 2 | 2 | 2 | 2 |
| AC (On-grid) | ||||
| Rated power | 30KW | 30KW | 30KW | 30KW |
| AC voltage | 400Vac/230Vac (L1/L2/L3/N/PE) | |||
| Rated frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Max. AC current | 50A | 50A | 50A | 50A |
| Max. Parallel number | 30 | 30 | 30 | 30 |
| AC (Off-grid) | ||||
| Rated power | 30KW | 30KW | 30KW | 30KW |
| AC voltage | 400Vac/230Vac (L1/L2/L3/N/PE) | |||
| Rated frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Max. AC current | 43A | 43A | 43A | 43A |
| Switching time | <20ms | <20ms | <20ms | <20ms |
| Max. Parallel number | 10 | 10 | 10 | 10 |
| General parameter | ||||
| Communication type | RS485/WiFi | RS485/WiFi | RS485/WiFi | RS485/WiFi |
| IP grade | IP54 | IP20 | IP54 | IP20 |
| Fire protection system | Yes | Yes | Yes | Yes |
| Operating temperature | -10~55℃ | -10~55℃ | -10~55℃ | -10~55℃ |
| Humidity range | 5%~95% | 5%~95% | 5%~95% | 5%~95% |
| Altitude | <3000m | <3000m | <3000m | <3000m |
| Battery cooling method | Air-Conditioner | / | Air-Conditioner | / |
| PCS cooling method | Intelligent cooling | Intelligent cooling | Intelligent cooling | Intelligent cooling |
| Dimensions(W*D*H) | 660*1130*1850mm | 600*850*1750mm | 660*1130*1850mm | 600*850*1750mm |
| Weight | 600kg(about) | 530kg(about) | 680kg(about) | 600kg(about) |
