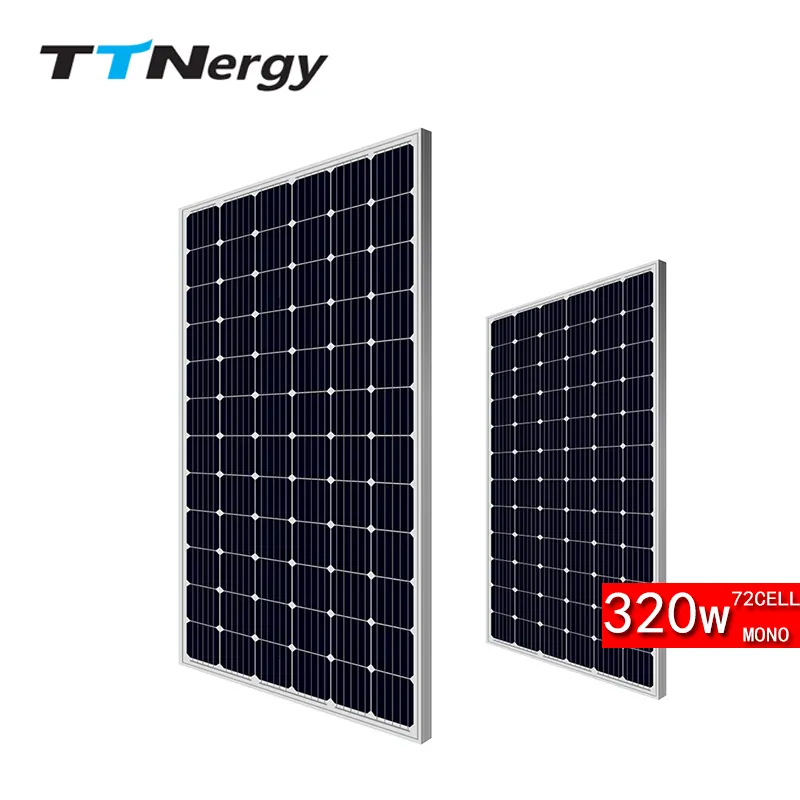

High efficiency monocrystalline Photovoltaic 320-335W solar panels for sale
High efficiency monocrystalline Photovoltaic 320-335W solar panels for sale
Additional information
| Cell size | 156.75mmx156.75mm |
|---|---|
| Panel Dimensions | 1950mmx992mmx40mm |
| Panel Efficiency | 16.59% |
| Warranty | 25 years |
| Junction Box | IP68 Rated |
| Front Glass | 3.2mm HighTransmission |
Product Information
monocrystalline solar panels for sale Glass
* High-transmittance and low reflection * Inspection:GB15763.2-2005.ISO9050 * High solar transmittance * High mechanical strength * High flatness
Solar Panel Cell
* High output-power: conversation efficiency is 18%-22% * High shunt-resistance: adapt the several environmental conditions. * Bypass diode minimizes the power drop by shade * Excellent low light effect * Low breakage rate
Frame
* Aluminium extrusion profile with prompt delivery * Available in customized surface finish * Excellent material for smooth and subtle edges * Extrusion for construction and other industrial purposes * Thickness variable according special request
Junction Box
* High current and voltage carrying capacity * Simple, quick and safe effective field assembly * IP 68 it can be used in the outdoor iron environment * Expansion connector are available for future requirement * Double permanent connection are adapted for all of the connecting.
|
Module
|
TTN 320W
|
TTN 325W
|
TTN 330W
|
TTN 335W
|
|
Peak Power Watts(Pmax/W)
|
320
|
325
|
330
|
335
|
|
Power Output Tolerance(W)
|
0~+5
|
|||
|
Maximum Power Voltage(Vmp/V)
|
37.79
|
37.93
|
37.94
|
37.95
|
|
Maximum Power Current(Imp/A)
|
8.47
|
8.57
|
8.75
|
8.83
|
|
Open Circuit Voltage(Voc/V)
|
46.01
|
46.26
|
46.93
|
47.06
|
|
Short Circuit Current(Isc/A)
|
8.97
|
9.01
|
9.16
|
9.22
|
|
Module Efficiency(%)
|
16.54
|
16.80
|
17.05
|
17.31
|
|
*Standard Testing Condition(STC):Irradiance 1000W/m3,Temperature 25 ,AM=1.5
|
||||
