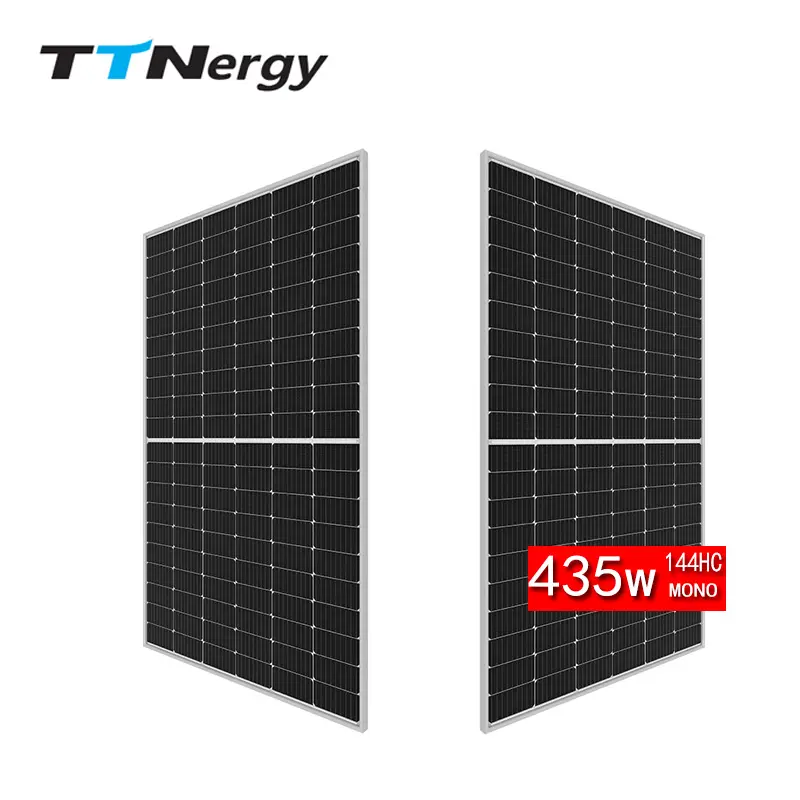

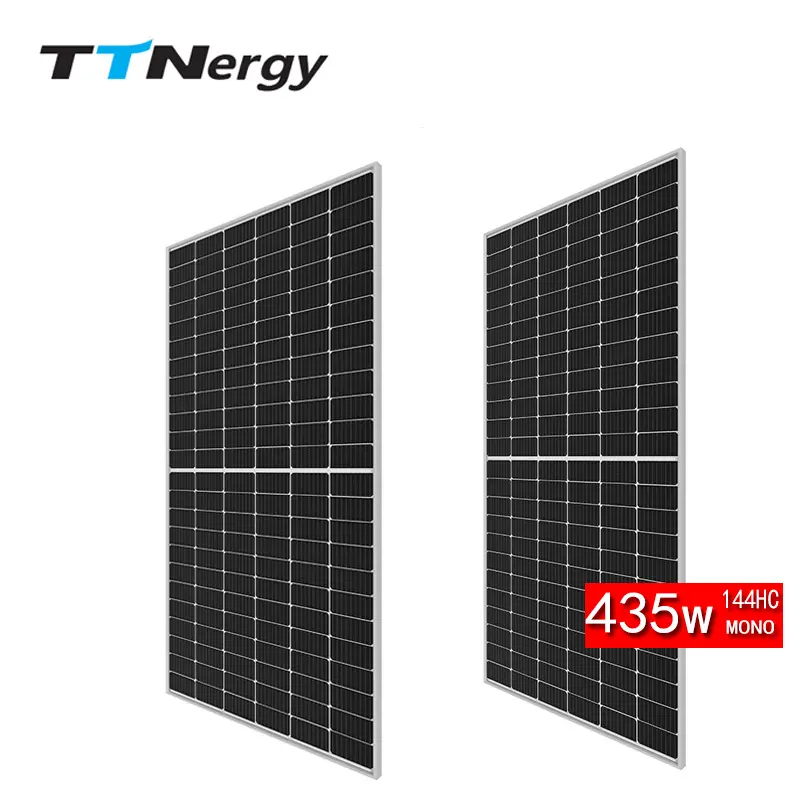

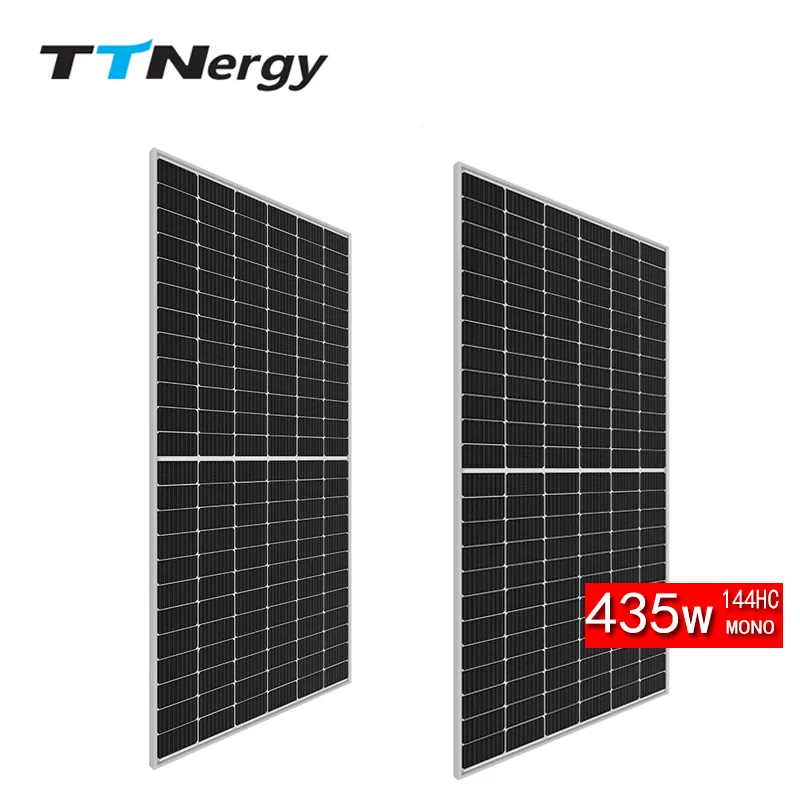

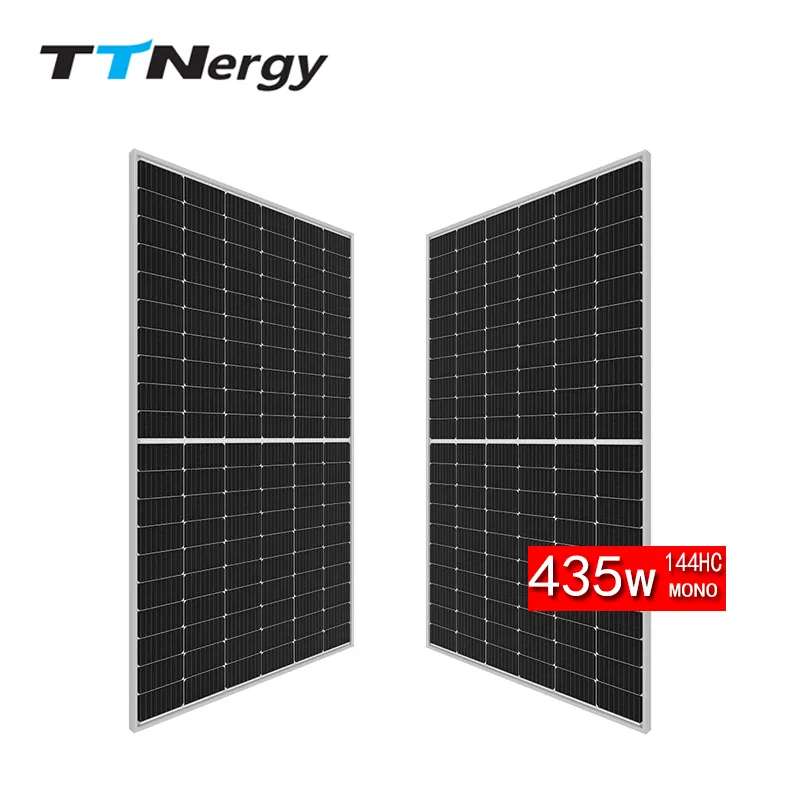

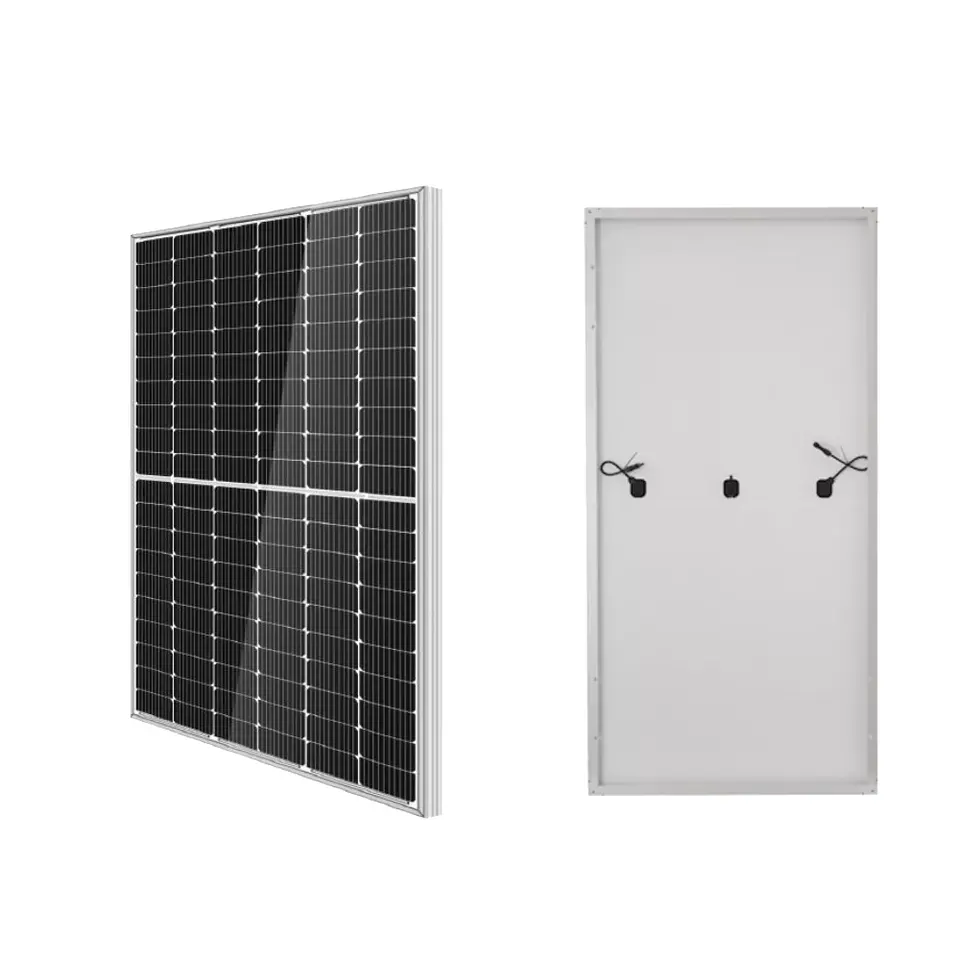

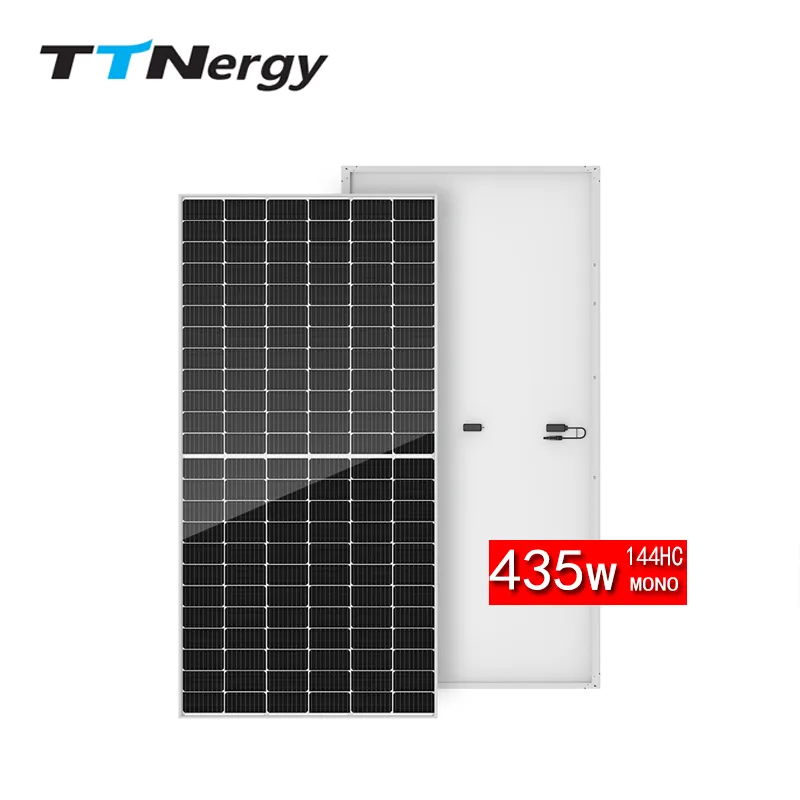

High Efficiency 435-460w Monocrystalline Solar Panels for sale
High Efficiency 435-460w Monocrystalline Solar Panels for sale
Additional information
| Panel Efficiency | 21.2% |
|---|---|
| Warranty | 25 years |
| Solar cell | A-grade |
Product Information
Solar Panel Glass
* High-transmittance and low reflection * Inspection:GB15763.2-2005.ISO9050 * High solar transmittance * High mechanical strength * High flatness
Solar Panel Cell
* High output-power: conversation efficiency is 18%-22% * High shunt-resistance: adapt the several environmental conditions. * Bypass diode minimizes the power drop by shade * Excellent low light effect * Low breakage rate
Frame
* Aluminium extrusion profile with prompt delivery * Available in customized surface finish * Excellent material for smooth and subtle edges * Extrusion for construction and other industrial purposes * Thickness variable according special request
Junction Box
* High current and voltage carrying capacity * Simple, quick and safe effective field assembly * IP 68 it can be used in the outdoor iron environment * Expansion connector are available for future requirement * Double permanent connection are adapted for all of the connecting.
|
Module
|
TTN 435W
|
TTN 440W
|
TTN 445W
|
TTN 450W
|
TTN 455W
|
TTN 460W
|
|
Peak Power Watts(Pmax/W)
|
435
|
440
|
445
|
450
|
455
|
460
|
|
Power Output Tolerance(W)
|
0~+5
|
|||||
|
Maximum Power Voltage(Vmp/V)
|
48.7
|
48.9
|
49.1
|
49.3
|
49.5
|
49.7
|
|
Maximum Power Current(Imp/A)
|
11.39
|
11.46
|
11.53
|
11.60
|
11.66
|
11.73
|
|
Open Circuit Voltage(Voc/V)
|
40.9
|
41.1
|
41.3
|
41.5
|
41.7
|
41.9
|
|
Short Circuit Current(Isc/A)
|
10.64
|
10.71
|
10.78
|
10.85
|
10.92
|
10.98
|
|
Module Efficiency(%)
|
20.0
|
20.2
|
20.5
|
20.7
|
20.9
|
21.2
|
|
STC:Irradiance 1000W/m2,Cell Temperature 25°C,Air Mass AM1.5.
*Measuring Tolerance: ±3%. |
||||||
Monocrystalline Solar Panels for sale solar panels have a higher efficiency rate than other types of solar panels, making them more cost-effective in the long run. They are also more space-efficient, allowing for maximum energy production in a limited area. However, their higher cost may make them less accessible to some consumers.
Monocrystalline Solar Panels for sale, if you want to buy our product (solar panels) then visit our website
