Solar micro inverter on grid solar panel microinverter

Solar micro inverter on grid solar panel microinverter

Additional information

Protection Degree

NEMA-6 / IP-66 / IP-67

Ambient Temperature

-40°F to +149°F (-40°C to +65°C)

Operating Temperature

-40°F to +185°F (-40°C to +85°C)

Display

LED LIGHT

Comunications

Power Line

Product Information

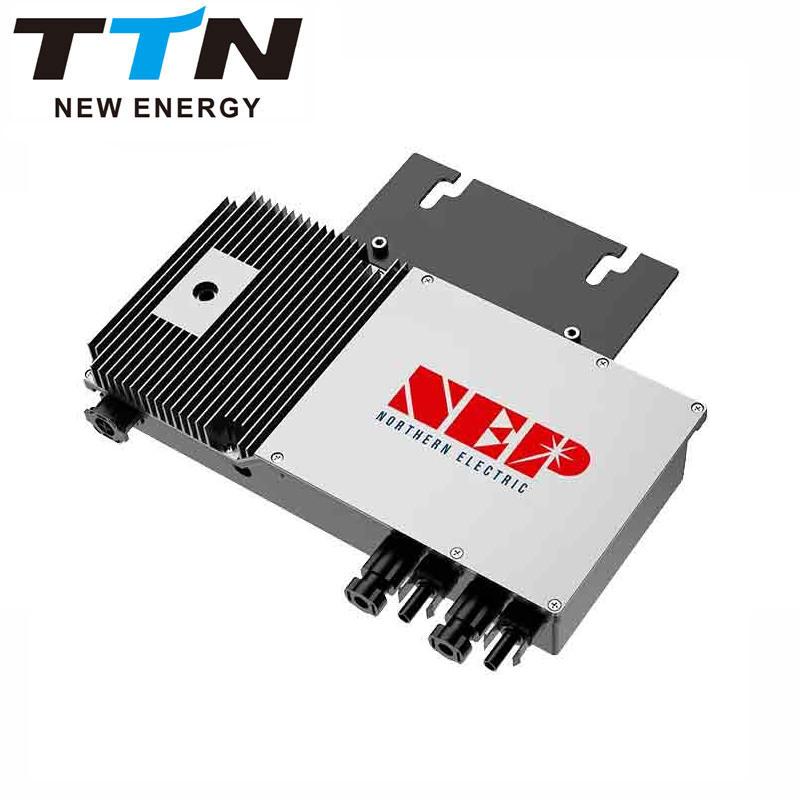

NEP Micro inverter

Higher yields / Safe & Reliable / Smart / User-friendly

Simple to install, the Microinverter is placed in the same structure as the solar panels and the cable connections are made through its own connectors.

High efficiency and excellent profit with maximum conversion efficiency of up to 95.5%. With NEP Micro inverter you take full advantage of the power of solar energy with MPPT technology

International certificates

Globally certified to C-ETL-us, SAA, TUV, VDE-AR-N 4105, VDE 0126, G83 / 2, CEI 021, IEC61727, EN50438 Protection class IP66, IP67, NEMA 6 high efficiency with 95.5% maximum.

Simple and practical design
Dimensions: 10.91” * 5.20” * 1.97” Weight of 6.4 Ibs Operating temperature of -40°F to +185°F Natural convection cooling
system.

Simple installation
Very simple installation with built-in cables and connectors. Integrated monitoring and power line communication with integrated BDG-256 GFDI gateway. Integrated 14 AWG AC cables.
