| Embedded DC Switch | Optional |
|---|---|
| Night power consumption (w) (°C) | < 0.2 |
| lsolation type | IP65 according to lEC60529 |
| Operation temperature | -25~+60 |
| Cooling concept | Natural convection |

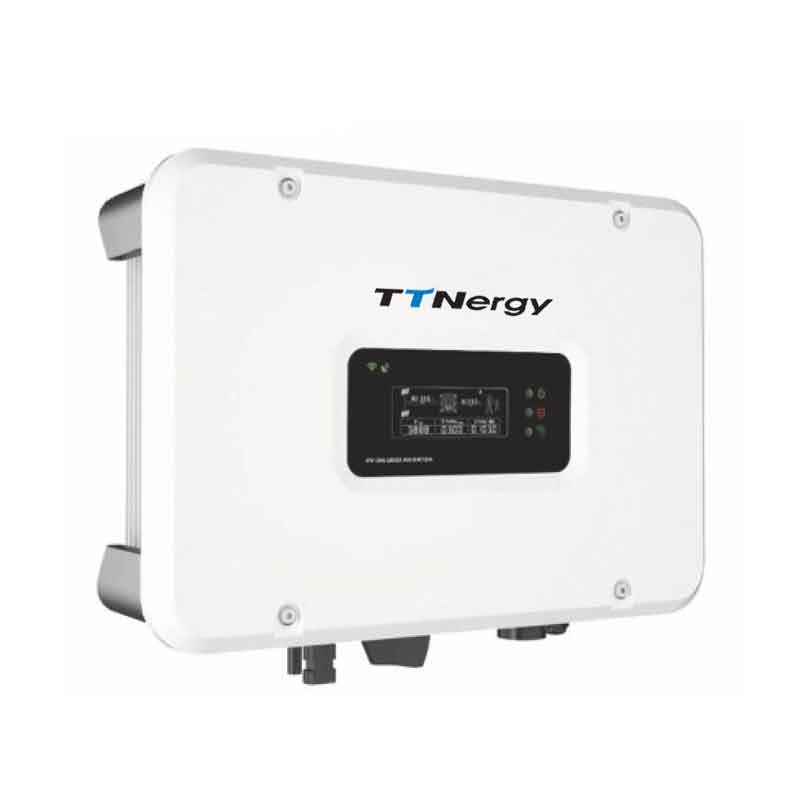

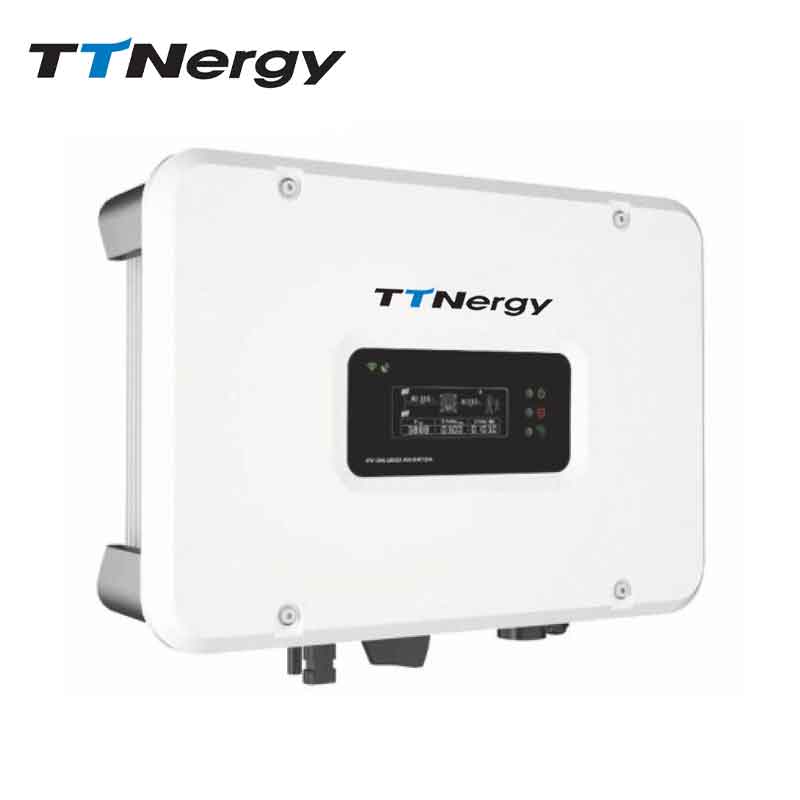

The Single Phase Solar lnverter design allows one person to install it with ease. The inverter is aesthetically pleasing making it ideal for domestic installations. It has over 97% max. efficiency. The inverter is IP65 protected alongside several other protection functions. The input voltage range is widespread as well as having a dual MPPT design with precise MMPT algorithm. WiFi and GPRS are optional interfaces which can be purchased separately and retrofitted at any time. A WiFi and monitoring app is available to allow the user to monitor their system remotely. This inverter comes with a 5-year warranty as standard but can be easily upgraded to 10 years at a low cost.
| Model No | SONG1K | SONG1.5K | SONG2.2K | SONG3K | SONG3.6K | SONG4.4K | SONG5K | SONG6K |
| DC Side / Inputparameters | ||||||||
| Max DC power (w) | 1500 | 2250 | 3300 | 4500 | 5400 | 6600 | 7500 | 7500 |
| Max DC voltage (vdc) | 450 | 450 | 500 | 500 | 500 | 500 | 500 | 500 |
| Min system start/shut down voltage (vdc) | 65/70 | 70/100 | 70/100 | 70/100 | 70/100 | 70/100 | 70/100 | 70/100 |
| MPPT voltage range(Vdc) | 70~450 | 100~450 | 100~450 | 100~450 | 100~450 | 100~450 | 100~450 | 100~450 |
| Max. input current (A) | 18 | 22 | ||||||
| Number of MPP trackers | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Strings per MPP tracker | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| AC Side / Output Parameters | ||||||||
| Nominal output power (W) | 1000 | 1500 | 2200 | 3000 | 3600 | 4000 | 5000 | 6000 |
| Maximum output power (W) | 1100 | 1650 | 2420 | 3300 | 3600 | 3960 | 5000 | 6000 |
| Nominal output voltage/ range (V) | 208,220,230,240/180~270 | |||||||
| AC grid frequency/range(Hz) | 50Hz,60Hz(auto-selection)/44Hz-55Hz;54HZ-65HZ | |||||||
| Maximum output current (A) | 6 | 8 | 12 | 16 | 16 | 21 | 23 | 26 |
| AC connection (with PE) | Single phase | |||||||
| Current distortion(THDi) | <1.5% | <1.5% | <1.5% | <1.5% | <1.5% | <1.5% | <1.5% | <1.5% |
| Power factor | ~1%(Adjustable from 0.8 leading to 0.8 lagging) | |||||||
| Efficiency | ||||||||
| Maximum conversion efficiency | 97.3% | 97.3% | 97.4% | 97.5% | 97.8% | 97.8% | 97.5% | 97.6% |
| European efficiency | 97.0% | 97.0% | 97.1% | 97.2% | 97.3% | 97.3% | 97.2% | 97.3% |
| MPPT efficiency | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% |
| Safety and Protection | ||||||||
| DC reverse-polarity protection | yes | |||||||
| Anti-islanding/Overvoltage | yes | |||||||
| Short circuit protection | yes | |||||||
| Leakage current protection | yes | |||||||
| Grid monitoring / Ground fault | yes | |||||||
| monitoringDC/AC side SPD(thermally protected) | yes | |||||||
| General Parameters | ||||||||
| Dimension (L//H)(mm) | 370/277/115 | 434/340/115 | ||||||
| Weight (kg) | 7 | 8 | ||||||
| Embedded DC Switch | Optional | |||||||
| Night power consumption (w) (°C) | < 0.2 | |||||||
| lsolation type | Transformerless | |||||||
| Protection degree | IP65 according to lEC60529 | |||||||
| Operation temperature | -25~+60 | |||||||
| Cooling concept | Natural convection | |||||||
| Operatiing Altitude (m) | < 2000m without power derating | |||||||
| Acoustic noise level (dB) | < 25 | |||||||
| Display | Graphic LCD | |||||||
| Communication Interface | Standard WlFl; RS485 (optional) | |||||||
| Warranty | 5 years; 5/7/10 years for optional | |||||||
| Certificates and Approvals | ||||||||
| CE-(EMC/LVD):EN(IEC)61000-11-21-3 /; EN(IEC)62109-11-2 | ||||||||
