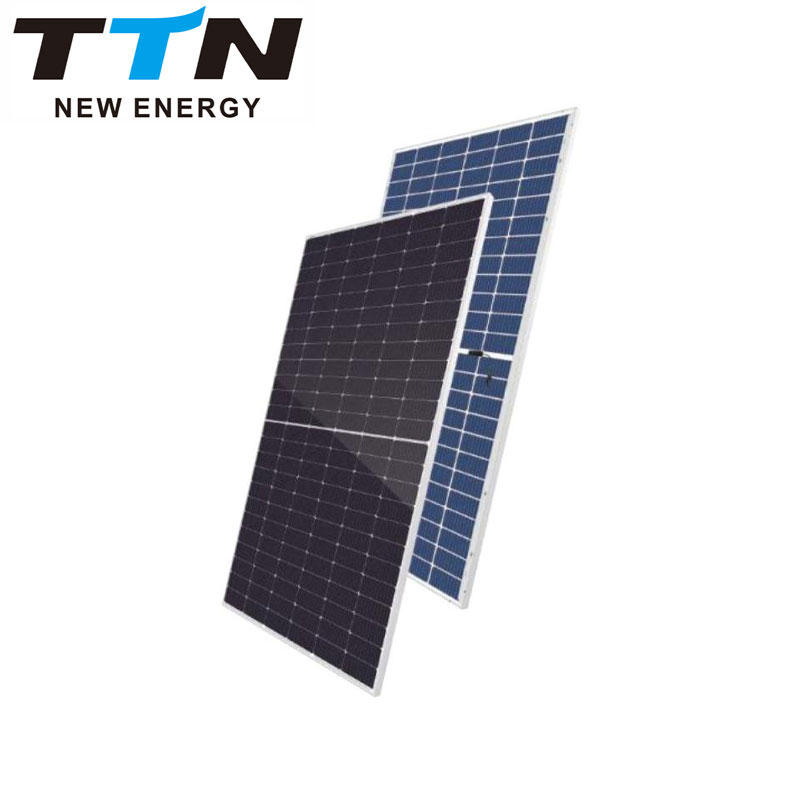

TTNergy 540-555W Mono-facial Module solar panel
TTNergy 540-555W Mono-facial Module solar panel
Additional information
| Cell Type | P type Mono-crystalline |
|---|---|
| No. of cells | 108(2×54) |
| Dimensions | 1722x1134x30mm (67.80×44.65×1.18 inch) |
| Weight | 22.0 kg (48.50 lbs) |
| Front Glass | 3.2mm,Anti-Reflection Coating. |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Output Cables | TUV 1×4.0mm |
Product Information
Positive power tolerance of 0~+3%
IEC61215(2016),IEC6 1730(2016)
1509001:2015: Quality Management System
IS014001:2015: Environment Management System
15045001:2018
Occupational Health and $afety Management Systems
Packaging Configuration
31pcs/pallets,62pcs/stack, 620pcs/ 40’HQ Container
| Mechanical Characteristics | |
| Cell Type | 182 P type Mono-crystalline |
| No. of cells | 144 (6 x 24) |
| Dimensions | 2278 x 1134 x 35mm |
| Weight | 30.5 kg |
| Front Glass | 2.0mm, Anti-Reflection Coating |
| Back Glass | 2.0mm, Heat Strengthened Glass |
| Frame | Anodized Aluminium Alloy |
| Juncfion Box | IP68 Rated |
| Output Cables | (+):300mm,(-):300mm or Customized Length |
Specifications
| Module Type | 540W(144) | 545W(144) | 550W(144) | 555W(144) | ||||
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power (Pmax) | 450Wp | 335Wp | 455Wp | 339Wp | 550Wp | 409Wp | 555Wp | 413Wp |
| Maximum Power Voltage (Vmp) | 40.70V | 38.08V | 40.80V | 38.25V | 40.90V | 38.42V | 40.99V | 38.59V |
| Maximum Power Curent (lmp) | 13.27A | 10.55A | 13.36A | 10.61A | 13.45A | 10.65A | 13.54A | 10.70A |
| Open-circuit Voltage(Voc) | 49.42V | 46.65V | 49.52V | 46.74V | 49.62V | 46.84V | 49.72V | 46.93V |
| Short-circuit Curent (lsc) | 13.858A | 11.19A | 13.93A | 11.25A | 14.01A | 11.32A | 14.12A | 11.40A |
| Module Efficiency STC (%) | 20.90% | 21.10% | 21.29% | 21.48% | ||||
| Operating Temperature(°C) | -40℃~+85℃ | |||||||
| Maximum system voltage | 1000/1500VDC (IEC) | |||||||
| Maximum series fuse rating | 25A | |||||||
| Power tolerance | 0~+3% | |||||||
| Temperature coefficients of Pmax | -0.35%/°C | |||||||
| Temperature coefficients of lsc | -0.28%/°C | |||||||
| Nominal operating cell temperature (NOCT) | 45±2°C | |||||||
