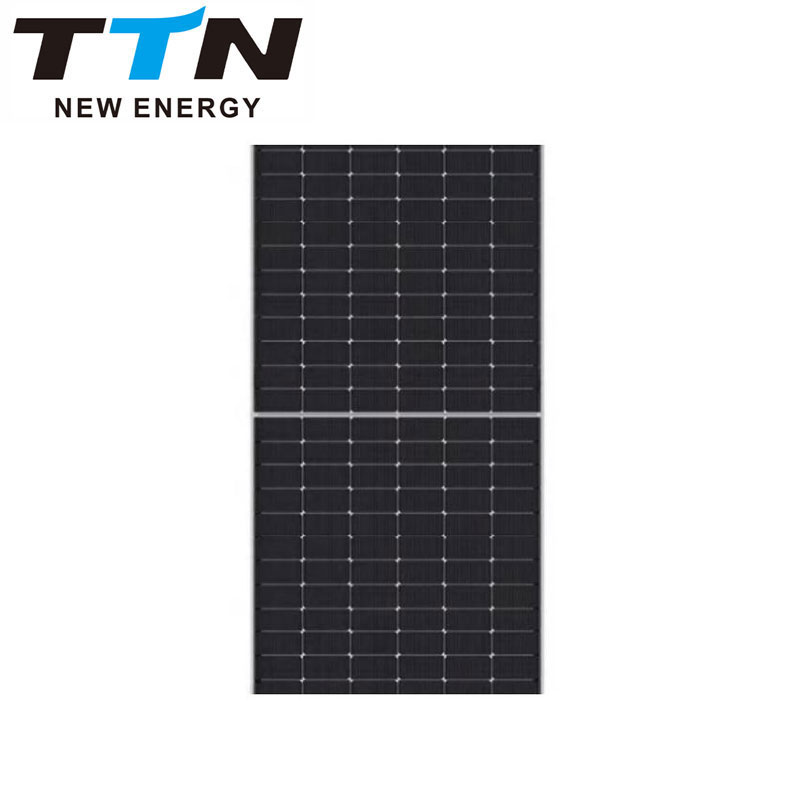

TTNergy 650-670W Mono-facial Module solar panel

TTNergy 650-670W Mono-facial Module solar panel

Additional information

Cell Type

P type Mono-crystalline

No. of cells

108(2×54)

Dimensions

1722x1134x30mm (67.80×44.65×1.18 inch)

Weight

22.0 kg (48.50 lbs)

Front Glass

3.2mm,Anti-Reflection Coating.
High Transmission, Low lron, Tempered Glass

Frame

Anodized Aluminium Alloy

Junction Box

IP68 Rated

Output Cables

TUV 1×4.0mm
(+):300mm ,(-):300mm or Customized Length

Product Information

Positive power tolerance of 0~+3%

IEC61215(2016),IEC6 1730(2016)

1509001:2015: Quality Management System

IS014001:2015: Environment Management System
15045001:2018

Occupational Health and $afety Management Systems





































































Packaging Configuration

31pcs/pallets,62pcs/stack, 620pcs/ 40’HQ Container

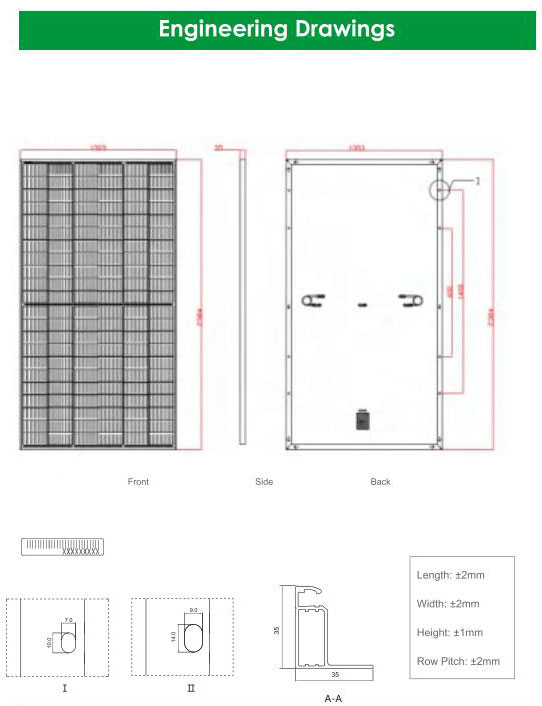

Mechanical Characteristics
Cell Type 210 P type Mono-crystalline
No. of cells 136 (6 x 22)
Dimensions 2384 x 1303 x 35mm
Weight 33.5 kg
Front Glass 3.2mm, Anti-Reflection Coating
Back Glass 2.0mm, Heat Strengthened Glass
Frame Anodized Aluminium Alloy
Juncfion Box IP68 Rated
Output Cables TUV 1×4.0mm

(+):300mm,(-):300mm or Customized Length

Specifications

Module Type 650W(132) 655W(144) 660W(144) 665W(144)
STC NOCT STC NOCT STC NOCT STC NOCT
Maximum Power (Pmax) 450Wp 335Wp 455Wp 339Wp 550Wp 409Wp 555Wp 413Wp
Maximum Power Voltage (Vmp) 40.70V 38.08V 40.80V 38.25V 40.90V 38.42V 40.99V 38.59V
Maximum Power Curent (lmp) 13.27A 10.55A 13.36A 10.61A 13.45A 10.65A 13.54A 10.70A
Open-circuit Voltage(Voc) 49.42V 46.65V 49.52V 46.74V 49.62V 46.84V 49.72V 46.93V
Short-circuit Curent (lsc) 13.858A 11.19A 13.93A 11.25A 14.01A 11.32A 14.12A 11.40A
Module Efficiency STC (%) 20.90% 21.10% 21.29% 21.48%
Operating Temperature(°C) -40℃~+85℃
Maximum system voltage 1000/1500VDC (IEC)
Maximum series fuse rating 25A
Power tolerance 0~+3%
Temperature coefficients of Pmax -0.35%/°C
Temperature coefficients of lsc -0.28%/°C
Nominal operating cell temperature (NOCT) 45±2°C
